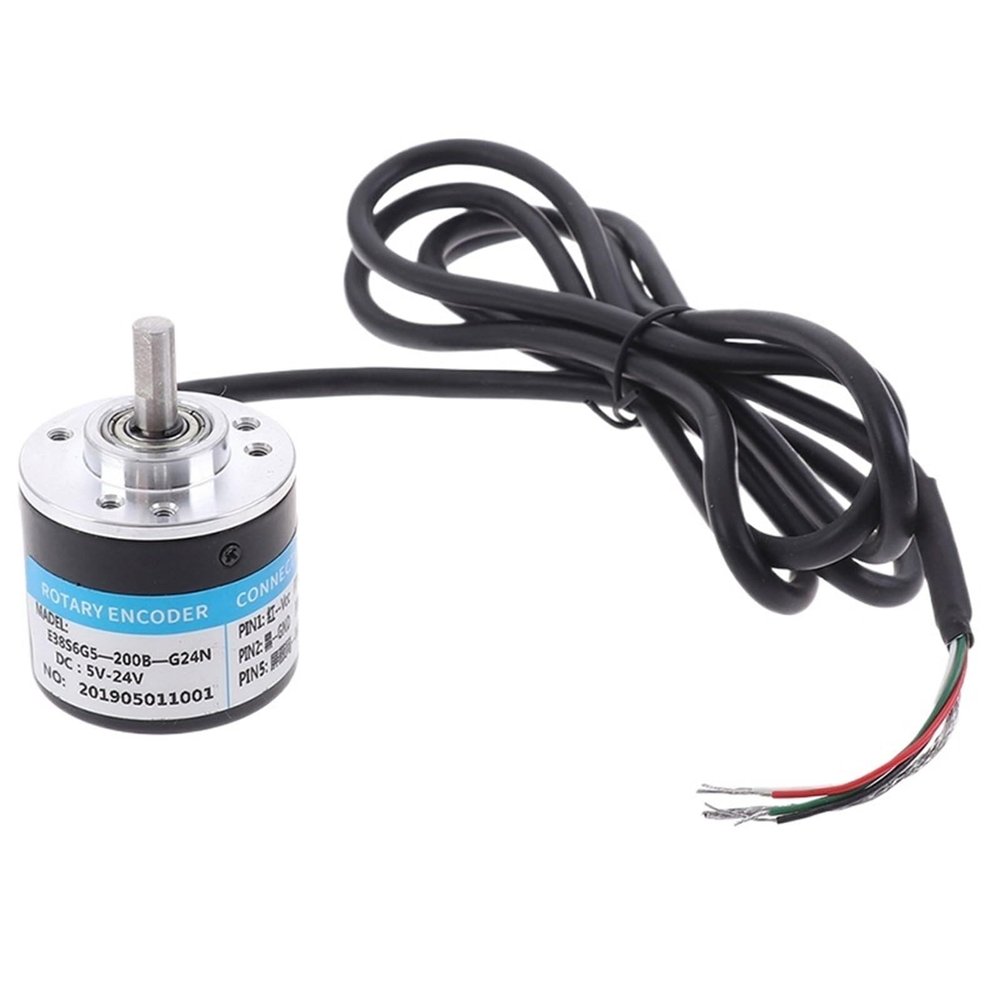

D3LX0Z1 1PC AB Phase for 100/200/360/400/500/600 Photoelectric Encoder P/R Photoelectric Incremental Rotary 5 V -24 V1-5000 P/R Encoder(200pr)

Description

Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal
Connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0 ,
Package included:
1 x Encoder Incremental Rotary Encoder
==========
Material : ALLOY
Switch Type : Knob switch
Model Number : 2000P/R 1 x Encoder Incremental Rotary Encoder
Features : Rotary Encoder
Item Type : SWITCHES
