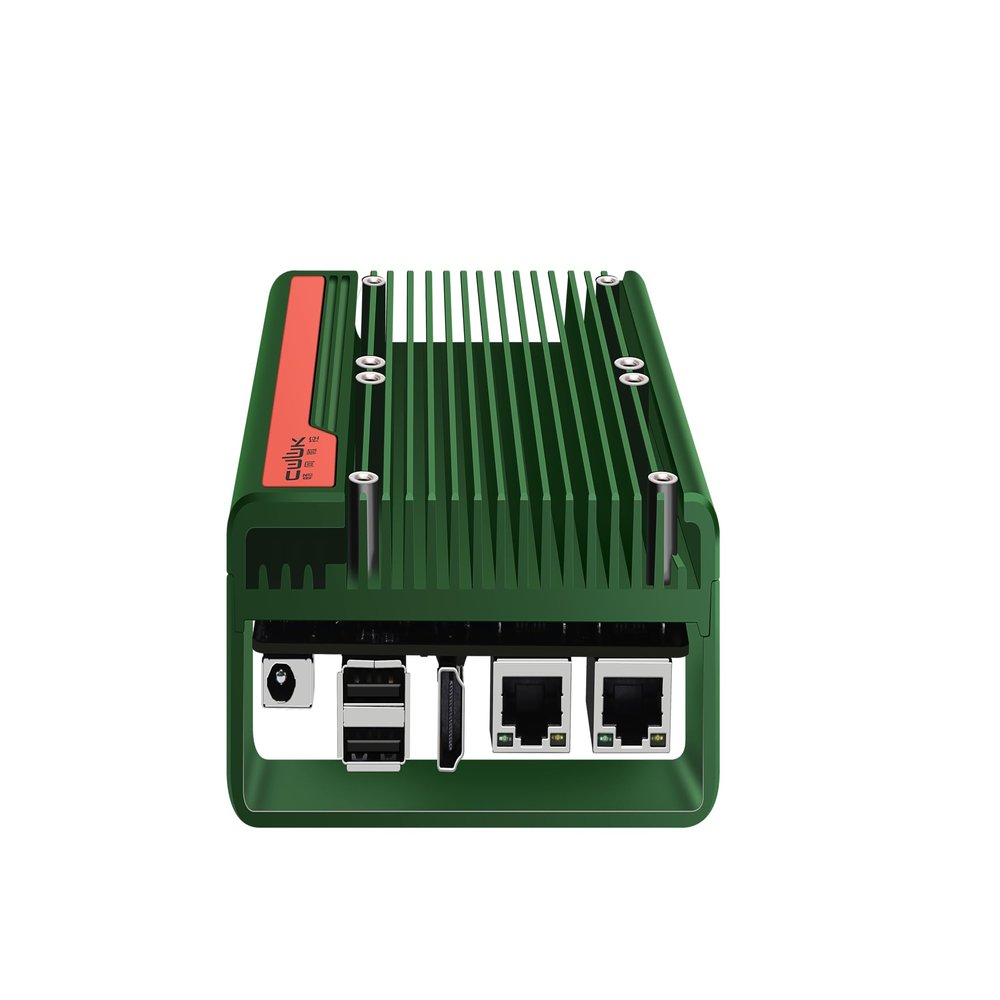

CWWK 12th Alder Lake-N N100|Dual Intel i226-V 2.5G RJ45 Network Ports|One PCI-ex8 Socket (PCle3.0 x4 Signal)|SO-DIMM DDR5 Slot Compatible with 4800/5200/5600MHz.Barebone

Description

• Based on Intel 12th generation Alder Lake-N N100 low-power platform,Passive cooling open design open source drawings specially created for DIY/3D printing enthusiasts
• Dual HDMI+DP+Type-C four display interfaces, supporting three-screen synchronous/asynchronous display,Dual Inteli226-V integrated filter 2.5G RJ45 network port,Dual SATA3.0 (6GB/s interface) dual 4pin power supply supports 2.5/3.5-inch hard drive
• One PCI-ex8 socket (PCle3.0 x4 signal) supports various network cards, hard disks and other expansionsOne SO-DIMM DDR5 slot compatible with 4800/5200/5600MHz,One M.2 NVMe (PCle3.0x2 signal) compatible with 2242/2280 size
• A TF card slot supports data storage and some system startup and boot functions,A 4-pin fan power socket supports temperature-controlled fans and a small 3-pin socket
• If you have any questions on CWWK Firewall mini pc, feel free to contact us . We offered 12 Months warranty for it and WE'LL REPLY YOUR Quesstions within 24 hours(during Working Days).

Product parameters
Processor: Intel N100
Memory: 1*S0-DIMM DDR5 compatible with 4800/5200/5600MHz
Storage: 1*M.2 NVMe (PCle3.0x2 signal) 2*SATA3.0 (6GB/s interface) 1*TF
Graphics Card: Intel UHD Graphics N100 (24EU)
Heat dissipation: fanless, pure copper block thermal conductive aluminum shell passive heat dissipation
BIOS: AMI BIOS auto-boot upon incoming call, GPIO, watchdog, PXE
Expansion pin header: 1*USB2.0 pin|1*COM pin|1*TPM pin
1*4pin fan power supply pin | 1*3pin fan power supply pin
Expandable: PCle XB slot supports expansion of M.2NVMe hard drives, network cards, etc.
Display: 2*HDMI1.4 1*DP 1*Type-C
Network card: 2* Inteli226-V2.5G RJ45
USB: 4*USB2.0
Power consumption: Basic power consumption 6-15W
Power supply: DC-12V 100-240V 50/60Hz (5.5*2.5 connector)
Chassis: aluminum alloy material
Color: cool black/tourmaline blue/dark green
Working environment: -0C- +70C relative humidity 5%-85%
Size: 144mm (length)*100mm (width)*48mm (height)
Installation method: desktop, wall-mounted (you can contact customer service to purchase additional wall hangings)
