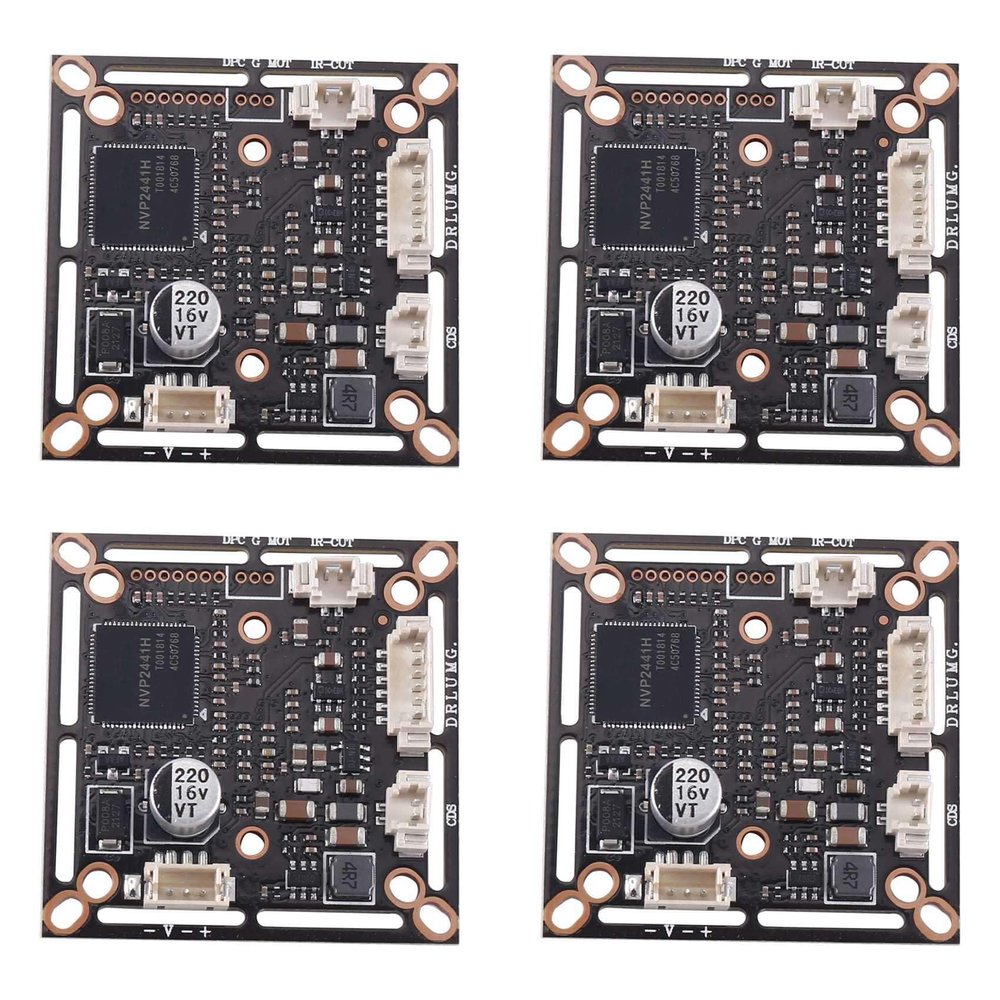

Cwmiibili 4X Starlight Low Illumination 0.0001Lux NVP2441+IMX323 HD 4-in-1 AHD TVI CVI CVBS 2Mp CCTV Camera Module PCB Board(NTSC)

Description

• Illumination:0.0001Lux/(F1.2,AGC ON), 0LUX with IR
• D Switch:support IR-CUT switch, CDS extra control
• Support coaxial HD output, Excellent performance, clear and bright image
• 2MP IMX323 Two speed scanning low illumination CMOS sensor
• Support OSD menu control

Cwmiibili Support WDR, Sense-up
Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR
Support UTC function
Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD?
UP:AHD
Down:CVI
Left:TVI
Right:CVBS
( button in different direction for 5 seconds to be related signal)
PAL/NTSC in one:Set on OSD menu
This camera module have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS
Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. The item don't include the OSD cable
Sensor:1/2.8inch NVP2441+IMX323
Effective Pixel:1920(H)x1080(V), FPS:1080P/25fps, 1080P/30fps
Shutter:AUTO
D Mode:EXT (Default)/AUTO/COLOR/B/W
Synchronously:Internal
Video Output:AHD/TVI/CVI/CVBS switch
Exposure:Brightness / Exposure Mode / GAIN
White Balance:/MWB
D Mode:Infrared/Internal AUTO/Color/B&W
Video Setting:Contrast/Sharpness/Color/GAIN/DNR/Format/WDR
Language:CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH
Operation Temperature:-20 to 60
Working Humidity:Relative humidity less than 90 %
Power:DC12V(20%)- 70MA
Format:NTSC
Colour:As Shown
Material:PC+Metal

Package Contents:
4 x CCTV Camera Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
