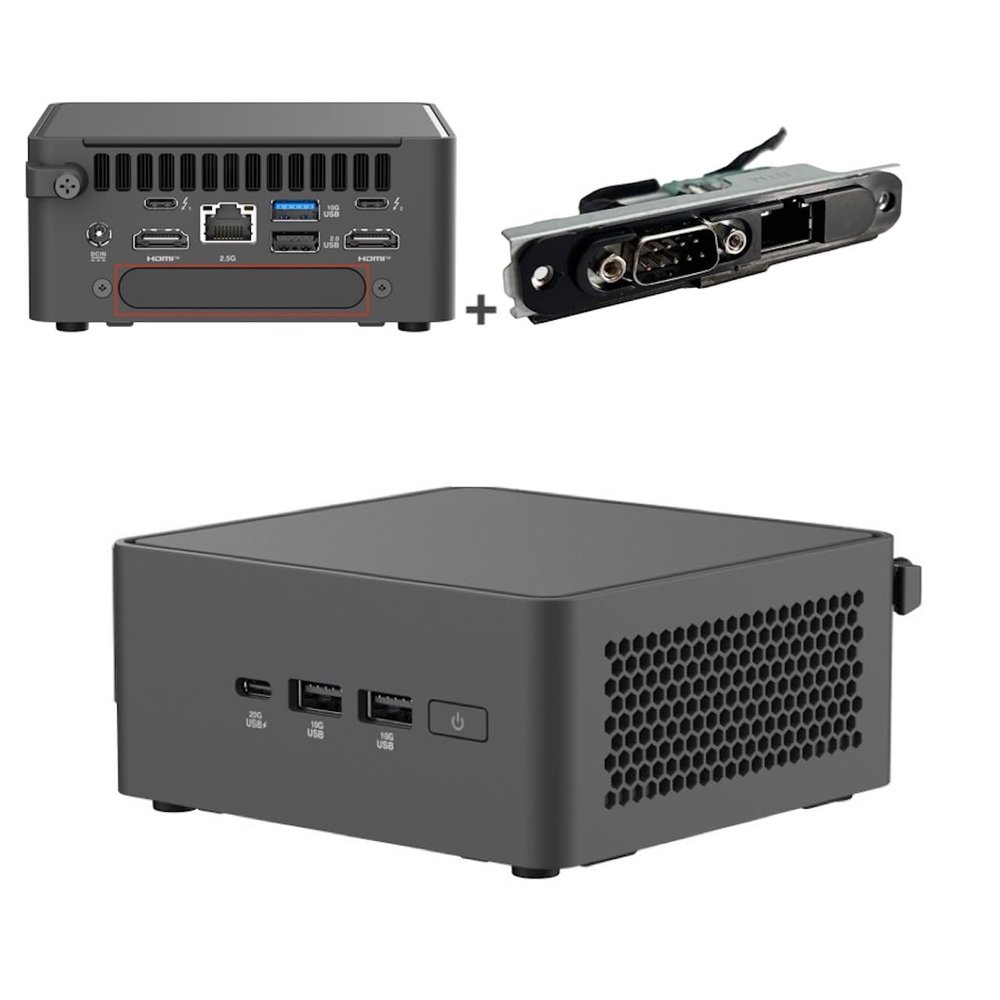

Cutesliving NUC 15 Pro Thick Mini PC with 2.5G Ethernet LAN and COM Expansion Module | Core Ultra 5 225H 14-Core | 64W TDP | DDR5-6400 96GB Max | PCIe 5.0 SSD | Wi-Fi 7 | Dual Thunderbolt 4(16G+1T)

Description

• High-Performance Computing: Equipped with a 14-core processor (6P+8E), turbo up to 4.9GHz, supporting sustained 64W power output. Features integrated graphics (8 Xe-cores) and 99 TOPS platform AI for accelerated AI inference and multitasking.
• Extreme Expandability: Dual-channel DDR5-6400 memory slots (max 96GB) and dual M.2 interfaces (PCIe 5.04 2280 + PCIe 4.04 2242) for future storage upgrades.
• All-Scenario Connectivity: Front panel: 2 USB 3.2 Gen2-A + 1 USB-C 20Gbps. Rear panel: Dual Thunderbolt 4 (40Gbps), 2 HDMI 2.1 (supports quad 4K@120Hz), 2.5G LAN. Wi-Fi 7 & Bluetooth 5.4 for seamless wireless.
• Military-Grade Reliability: MIL-STD-810H certified (shock/vibration/extreme temperature resistance). Optional vPro remote management and dual heat pipe cooling for 24/7 stability.
• EXPANSION CAPABILITY: Adds both 2.5G LAN and RS-232 (DB9) Serial COM port functionality, expanding your system's connectivity options

Model: NUC 15 Pro RNUC15CRHU5 (Thick)
Processor: Core Ultra 5 225H (14C/20T, 24MB Cache, up to 4.9GHz)
Graphics: Integrated GPU (8 Xe-Cores, 2.2GHz)
Memory: 2 SO-DIMM slots, DDR5-6400, **Max 96GB**
Storage: 1 PCIe 5.04 M.2 2280 + 1 PCIe 4.04 M.2 2242
AI Performance: 99 TOPS (NPU+GPU combined)

I/O Ports:
Front: 2 USB 3.2 Gen2 Type-A, 1 USB-C 20Gbps
Rear: 2 Thunderbolt 4 (DP 2.1), 2 HDMI 2.1, 1 USB 3.2 Gen2-A, 1 USB 2.0, 1 2.5GbE
Wireless: Wi-Fi 7, Bluetooth 5.4
Computer Dimensions:117mm x 112mm x 54mm (0.7L) | Weight: 618g 117mm x 112mm x 54mm

Included LAN Expansion Module:
Designed specifically for NUC 15 Pro NUC15CRH systems, providing seamless integration and enhanced networking capabilities.
EXPANSION MODULE: Adds an additional LAN port to your system, one is 2.5G Ethernet LAN, another is both 2.5G LAN and RS-232 (DB9) Serial COM port for choose, perfect for users requiring multiple network connections.
PERFORMANCE UPGRADE: Ideal for bandwidth-intensive applications, supporting speeds up to 2.5 times faster than traditional Gigabit Ethernet.
Features 2.5 Gigabit Ethernet support, offering faster network speeds compared to standard Gigabit connections.

Dimensions of Expansion Module: 0.87 x 0.09 x 1.18 inches | Weight: 0.705 ounces.

Key Considerations
Memory Compatibility: DDR5-6400 requires JEDEC-standard CSO-DIMMs (non-XMP). Use certified modules.
Thermal Requirements: Sustained 64W performance demands adequate ventilation. Avoid stacking units in confined spaces.
Expansion Slot Limitation: Rear PCIe 4.04 slot shares bandwidth with the M.2 2242 interface.
Power Management: USB-C/Thunderbolt ports deliver standby power by default. Enable "Deep Power Saving" in BIOS for complete shutdown.
Add LAN expansion Module to perfect your mini pc.
