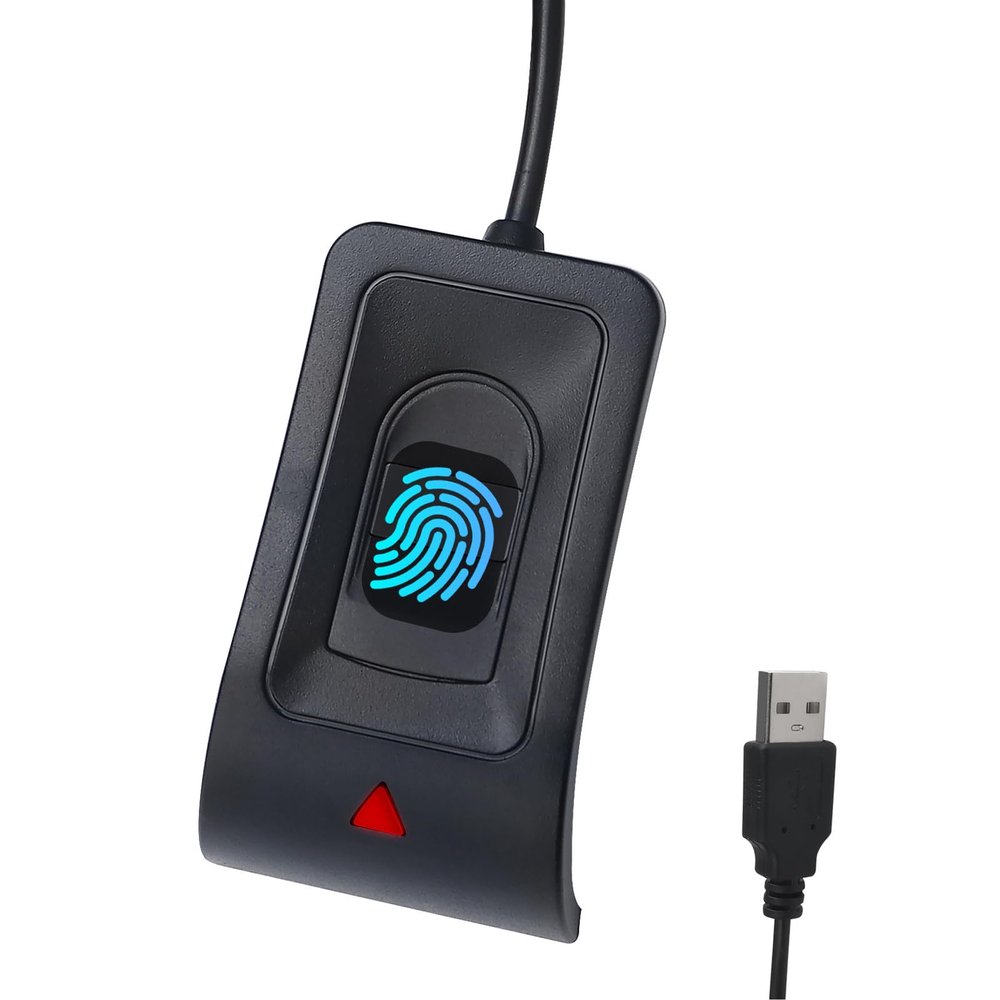

CUIFATI USB Fingerprint Reader, Computer Fingerprint Register for Wins, 360 Degree Recognition, USB Biometric Fingerprints Scanner, Hold 10 Fingerprints, 1.5M Cable

Description

• 360-Degree Auto Calibration: With a 360-degree auto-calibration and recognition function, the scanner can accurately identify the correctly registered finger regardless of the angle at which it is pressed against the module.
• Hold Multiple Fingerprints: The fingerprint scanner can store up to 10 fingerprints, allowing you to set fingerprints for multiple accounts. Each family member can use a separate account and automatically log in through their fingerprint.
• Wide Application: The mini fingerprint reader is suitable for a variety of applications, including fingerprint access control machines, fingerprint root searches, fingerprint attendance machines, fingerprint storage cabinets, one-touch automatic operations, fingerprint printing, fingerprint locks, and fingerprint security systems.
• Multifunctional Design: This versatile device supports independent operations for fingerprint collection, registration, matching, and search.
• Compact and Portable: The computer fingerprint reader features a compact structure, making it easy to carry and store. It has low power consumption, a universal interface, high reliability, and is simple to operate.

Specification:
Item Type: Fingerprint Key Reader
Material: ABS
CPU: 144Hz main frequency, 1M Bits Flash Memory, 128KB
Fingerprint Capture: Capacitive capture
Fingerprint Image Size: 96 x 112 (pixels), 508 DPI
Fingerprint Registration Capacity: 10 by default, expandable to 5000
False Acceptance Rate (FAR): Rejection Rate (FRR): Matching Method: 1:N and 1:1 matching
Fingerprint Template Size: 570 bytes Byte
Security Level Setting: Level 1 to Level 5 configurable, factory set value: Level 3
Processing Speed:
Fingerprint Feature Extraction Time 1:N matching time (for 3000 full registrations) Communication Interface: UART, 3.3V-TTL level or USB communication
Serial Communication Parameters:
No Parity Parity = NONE, 1 stop bit Stop Bit = 1
No Flow Control = NONE
Baud rate of 9600, 19200, 38400, 57600, 115200 (bps)
Factory Setting: 115200bps
Operating Voltage: vin voltage: DC5V
Operating Current: less than 30mA, peak less than 80mA (instantaneous current) when collecting fingerprints
Sleeping Current: less than 10uA working environment
Operating Temperature: -10-60
Applicable System: For System Only

Package List:
1 x Fingerprint Key Reader

Note:
Not available for OS X system.
