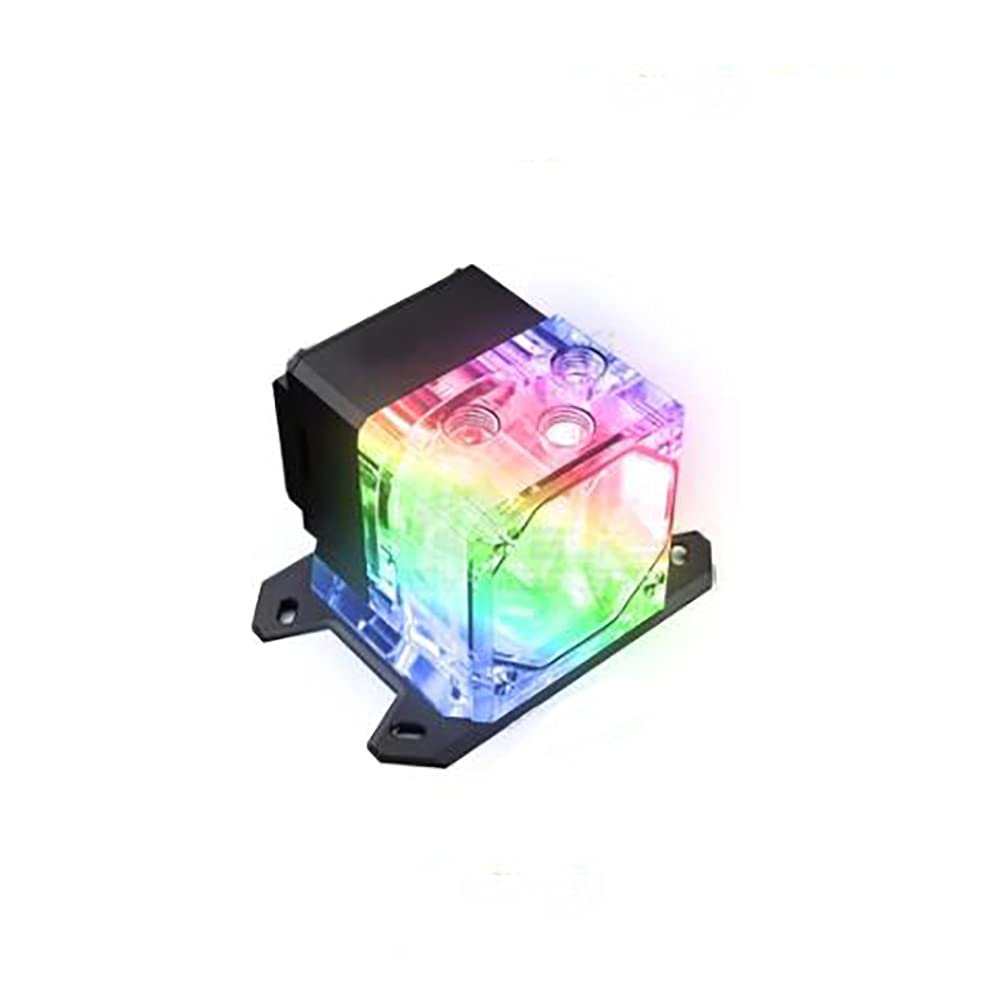

CPU Water Block Water Tank PWM Pump for Intel LGA AMD Ryzen FM1 FM2,I7 I9 Integrated Watercooler ITX Case Kit (for AMD)

Description

• It`s developed and designed to meet the compact stucture inside the ITX small chassis.It in tegrates CPU water cooling block,pump and reservior a whole, which is the great news of ITX small motherborad players.
• Impotred acrylic material:Using imported acrylic with crystal clear surface,and the light transmittance is up to 92%,which emits endless changes in the inner color of the brilliant light effect.
• Jet type micro channel structure:The 0.5mm gap has strong passability,even if it is used with pastel water cooling liquid or nano silver water cooling liquid,it is not easy to be blocked.Large flow rate,Excellent heat dissipation performance,and strong passability for waterway impurity.Service life at least for 1 to 2 years.
• Copper nickel plated bottom plate:The heat absorption plate of the water block is made of international T2 high-purity copper plate,its thermal conductivity is second only to silver,401W/MK,high heat absorption and exchange efficiency,and the surface is treated with anti-corrosion nickel plating process,which can effectively prevent. the bottom plate form oxidation and growth.Long lasting.
• With CP-D3PB-X Water Pump,stronger Performance:Adopt DDC water pump,lift 6 meters,flow 700L/H,adopt sine wave drive mode,large 4D interface power supply,PWM signal output,compatible with various DDC modified pump covers,high lift,large flow,it is one of the core devices of split water cooling block

Compatible:Ryzen 7 /Ryzen 5 / Ryzen 3
Compatible:AM4 / AM3+ / AM3 / AM2+ / AM2
Compatible:FM2+ / FM2 / FM1

1. Before Choose "sync motheboard" please double check your motherboard if there are suitable Header.5V light connect to 12v 4pin header motherboard ,then Block LED will Burn .12V light connect to 5v 3pin header motherboard,the Block LED will not bright .
2. Pictures shows Light effect is 5v 3pin rainbow color ,if choose 12v 4pin ,not the same light effect .you will see Monochrome pattern.
3. if meet want to 5v 3pin rainbow color,but the motherboard no 5v 3pin header ,then only can choose used by controller . 4. If the LED Damaged for wrong connecting ,our store won't take any responsibility!!!

Cpu Block pump reservoir integrated water block:Integrated hardware,Strong performance.Low vibration and low noise.shaft core,life is up 50000 hours.Flake- shaped design,good heat dissipation effect.Lift 6 meters,the flow can reach 700L/H.

Product parameters:
Color:Transparent
Driving mode:Sube wave foc
Material:Acrylic/copper/aluminum
Max speed:1800-4800 RPM
Process:Electroplating/anode
Voitage current:12V DC 1.5A
Srew thread:G1/4"
Lift traffic:6M 700L/H
The power supply mode:Big 4D+PWM Speed regulation
Annex:M3.5 nut/spring/spcer/instructions adapter cabel
