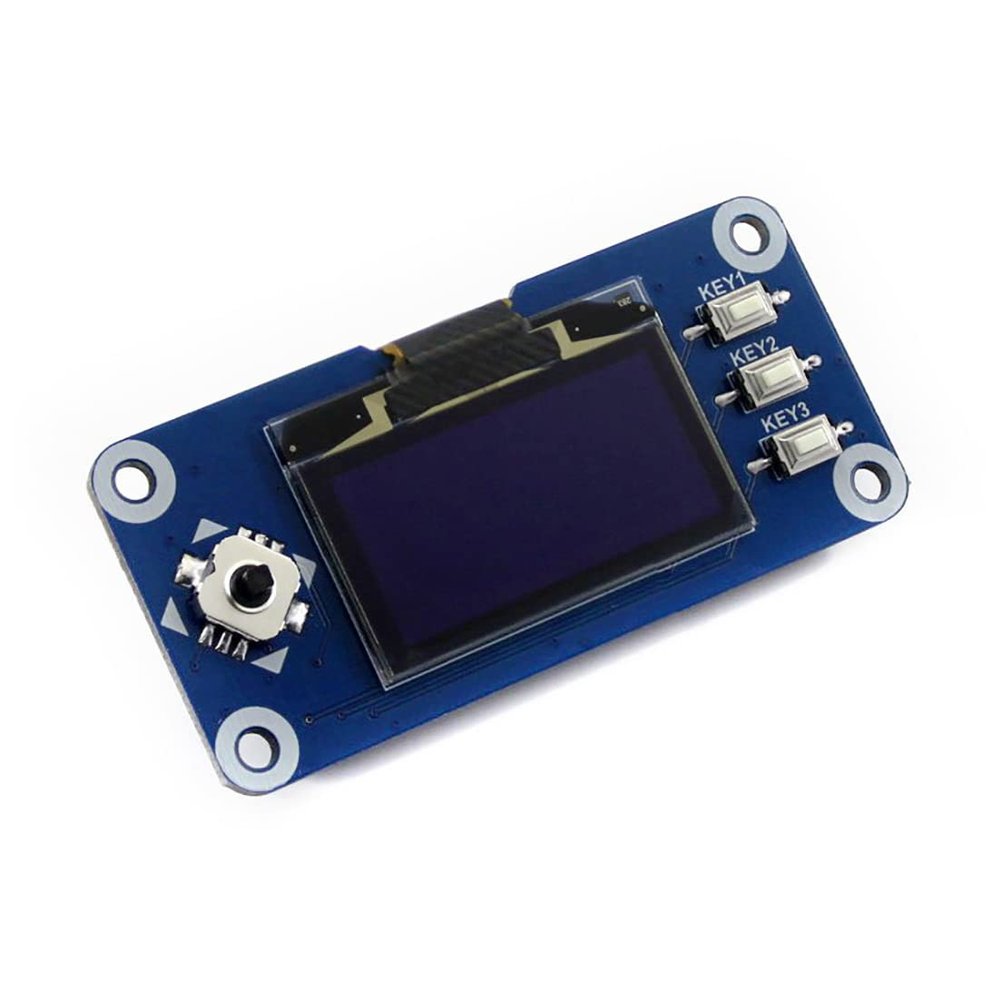

1.3inch OLED Screen with SH1106 for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH Jetson Nano 128x64 SPI I2C Interface

Description

• The 1.3 inch I2C OLED display with standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano
• It is a mini OLED display for Raspberry Pi, 128*64 resolution, optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
• 1.3 inch OLED display HAT for Raspberry Pi ,comes with: 1x joystick (5-position), 3x pushbuttons, handy and useful
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano), feel free to contact us if you need our help, we will always be ready to solve the problem.

Overview

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Features

Standard RPi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano)

Specifications

Driver: SH1106
Interface: 4-wire SPI, 3-wire SPI, I2C
Display color: blue
Resolution: 128x64
Operating voltage: 3.3V

Package include

1. 1.3inch OLED HAT x1
2. RPi screws pack (2pcs) x1
