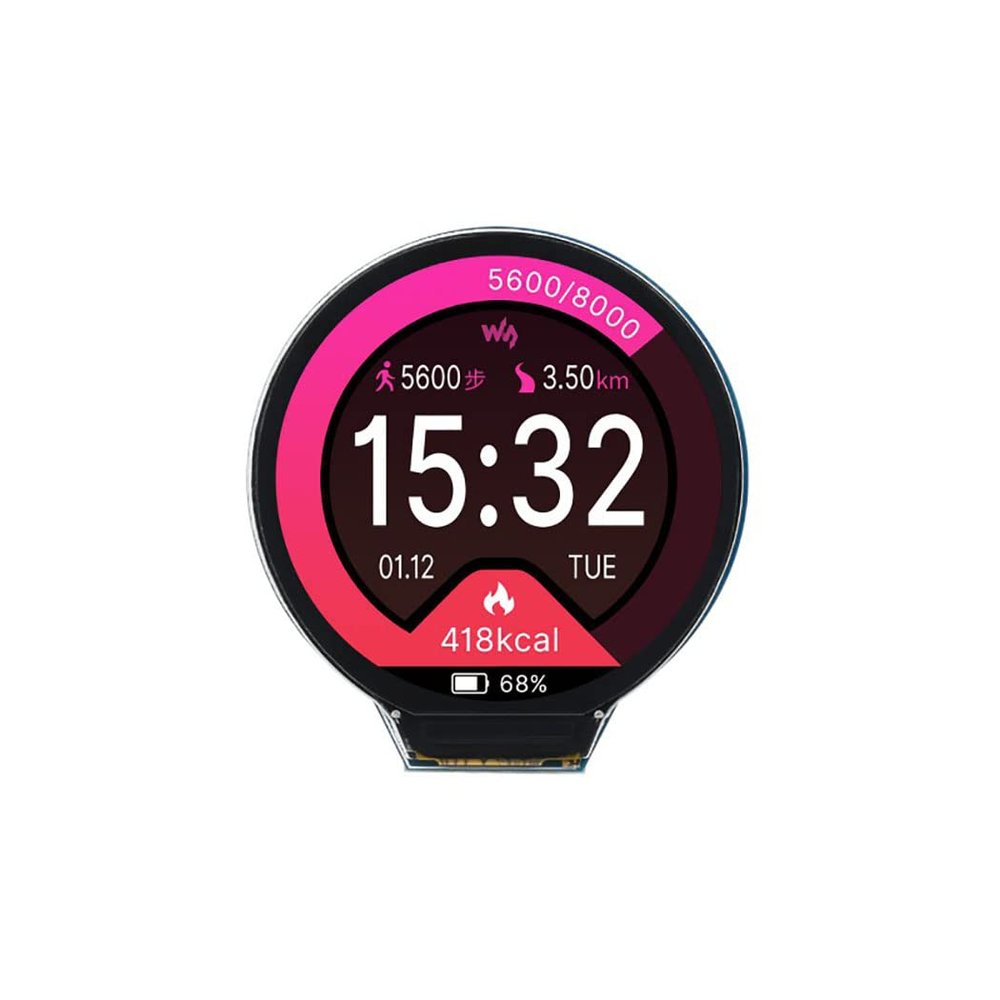

Coolwell RP2040 MCU Board with 1.28inch LCD,Round Shape, Accelerometer and Gyroscope Sensor,30 Multi-Function GPIO Pins

Description

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz; 264KB of SRAM, and 2MB of on-board Flash memory
• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Type-C connector, keeps it up to date, easier to use; Onboard 1.28inch 240240 pixels 65K colorful IPS LCD display for clear color pictures
• Lithium battery recharge/discharge header, suitable for mobile devices
• All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)

Overview

RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display,
Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins,
which makes it easy for you to develop and integrate it into products quickly.

Features

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.28inch 240240 pixels 65K colorful IPS LCD display for clear color pictures
Lithium battery recharge/discharge header, suitable for mobile devices
All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 Programmable I/O (PIO) state machines for custom peripheral support

Package include

1. RP2040-LCD-1.28 x1

Resources download: https://www.waveshare.com/wiki/RP2040-LCD-1.28
