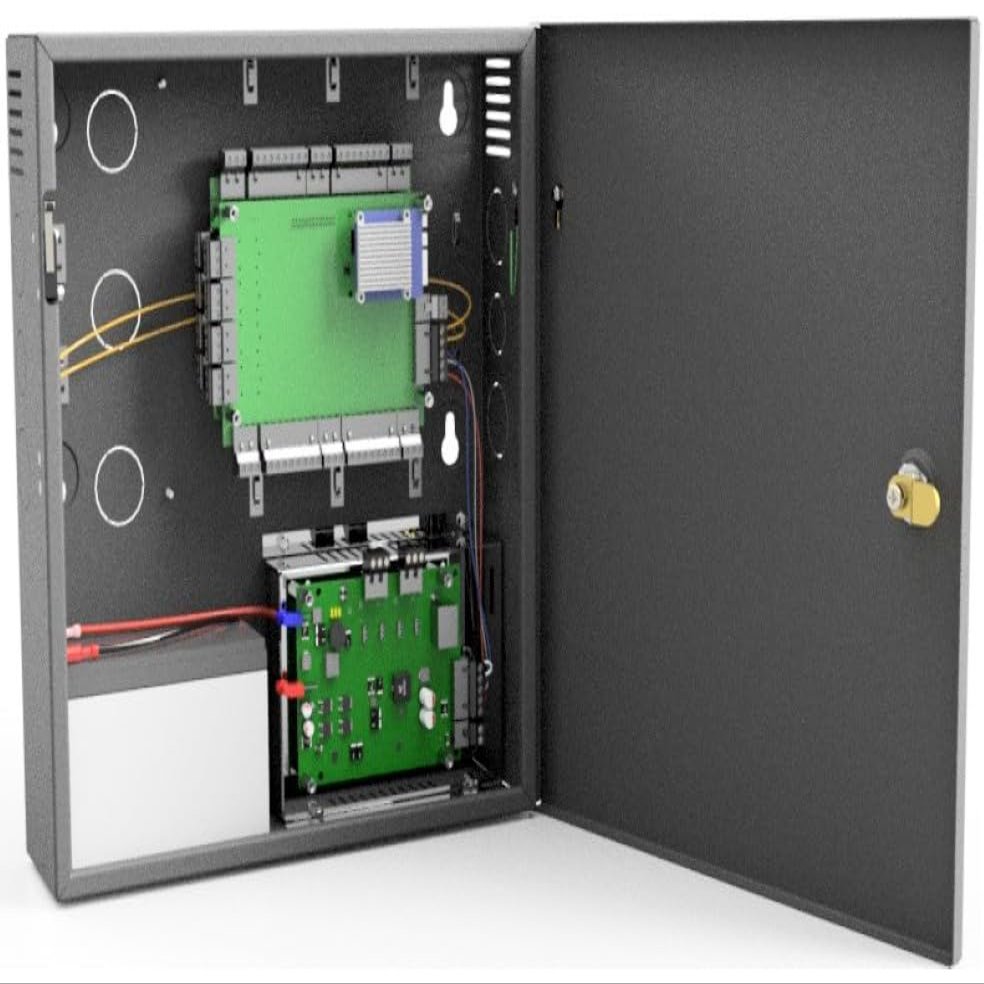

Continental Access Systems NAE-4DM Embedded 4-Door Controller with Integrated Power Supplies, Embedded Linux Operating System, 8 Reader Ports, 8 Form C Relays, 115VAC @ 1.5A

Description

• Simple to use, Self-Contained, Scalable Access Control Solution
• Each controller functions as a Server, expansion panel or elevator module
• Ready out of the box, browser-managed
• Expandable to 4 doors in same housing with NAE-ACM
• 12 Inputs 4 Request to Exit, 4 Door Position Switch, 4 Auxiliary

Continental Access Systems NAE-4DM Embedded 4-Door Controller with Integrated Power Supplies, Embedded Linux Operating System, 8 Reader Ports, 8 Form C Relays, 115VAC @ 1.5A

KEY FEATURES
- Simple to use, Self-Contained, Scalable Access Control Solution
- Each controller functions as a Server, expansion panel or elevator module
- Ready out of the box, browser-managed
- Embedded Linux Operating System
- Expandable to 4 doors in same housing with NAE-ACM
- 8 Reader Ports 4 In / 4 Out
- 8 Form C Relays 4 Lock / 4 Auxiliary
- 12 Inputs 4 Request to Exit, 4 Door Position Switch, 4 Auxiliary
- ETL / UL294

SPECIFICATIONS
- Processor: Quad Core Cortex, 1.5 GHz
- Memory: 1 GB DDR3 & 8 GB eMMc
- Operating System: Embedded Linux
- Transactions: > 60 per second
- System Power Requirements: 115VAC @ 1.5A
- Operating Temperature: 50F to 95F (10C to 35C)
- Internal Power Supply: Controller & Readers Only
- Battery Backup: Controllers & Readers Only
- Recommended Battery Type (battery is not incldd): 12V, 7AH, Sealed Lead Acid w/ 0.187 inch terminals
- Standby Power Requirement: 400mA @ 12V
- Reader Power: 300mA @ 12V Max per Reader 1000mA @ 12V Max per System
- Tamper Digital Input: Yes
- Power Fault Digital Input: Yes
- Door Lock Outputs: 4 Form C Relay, 24V @ 2.0A
- Auxiliary Outputs: 4 Form C Relay, 24V @ 2.0A
- Enclosure Size (WxHxD): 14.25" x 14.25" x 3.75" (362 x 362 x 95mm)
