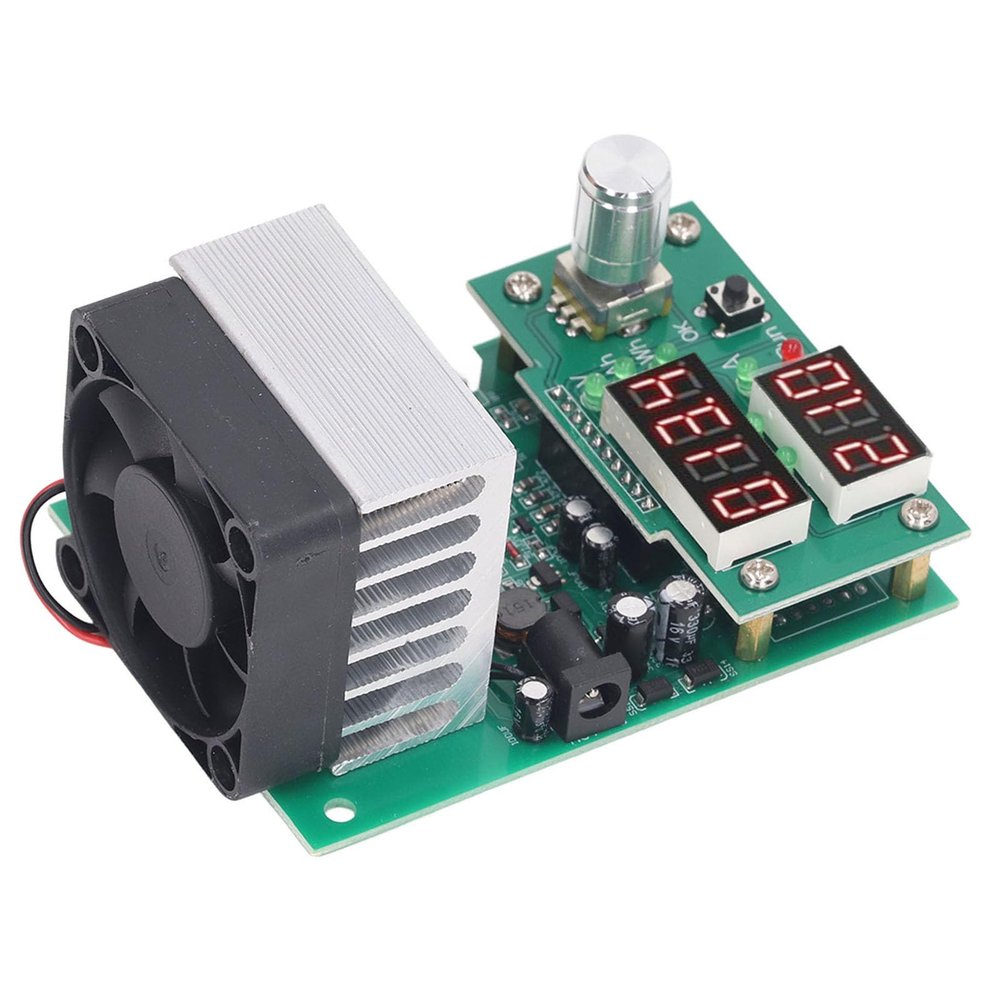

Constant Current Electronic Load Tester 1~30V Multifunctional Intelligent Electronic Load Tester 60W

Description

• Technical parameters: The maximum power of the electronic load battery tester is 60W, the maximum voltage is 30V, and the maximum current is 9.99A. Overvoltage, overcurrent, and overvoltage alarms effectively protect the module from damage.
• Wide range of applications: This multifunctional constant current electronic load can measure voltage, current, power, battery capacity, impedance, temperature, energy and time. Test different batteries, DC power supplies, and charging data cables
• function: The electronic load tester has overheating , instantaneous overpower , overvoltage , reverse connection , and power supply voltage abnormality .
• Clear Display and Safety: The Battery Capacity Tester provides comprehensive and clear information. Equipped with an intelligent CPU fan, it can dissipate heat quietly and effectively.
• Multifunctional and excellent heat dissipation: It has automatic memory function for all parameters, making it very suitable for automatic assembly of power adapter aging cabinets. The size is slightly larger, and the fan has been upgraded to the original high speed double bearing fan 5020, with high heat dissipation redundancy, making it suitable for long-term work.

1. Multifunctional and excellent heat dissipation: It has automatic memory function for all parameters, very suitable for automatic assembly of power adapter aging cabinet. The size is slightly larger, the fan has been upgraded to the original 5020 for high speed double bearing fans, with high heat dissipation redundancy, suitable for long-term work
2. Clear Display and Safety: The Battery Capacity Tester provides comprehensive and clear information. Equipped with an intelligent CPU fan, it can dissipate heat quietly and effectively
3. Technical parameters: The maximum power of the electronic load battery tester is 60W, the maximum voltage is 30V, and the maximum current is 9.99A. Overvoltage, overcurrent, and overvoltage alarms can effectively protect the module from damage
4. function: Electronic load tester provides overheat otP, instantaneous overpower oPP, overvoltage ouP, reverse connection , power supply voltage abnormality
5. Wide range of applications: This multifunctional constant current electronic load can measure voltage, current, power, battery capacity, impedance, temperature, energy and time. Test various batteries, DC power supplies, and charging data cables

specification:
Item Type: Electronic Load Tester
Material: PCB and aluminum alloy
Operating mode: Constant current (CC) Single mode
Discharge current: 0.1A or 0.01A with 0.20-9.99A steps
Maximum discharge current error: 0.7%-0.01A
Maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A or more 1.2%
Offline (Terminal) Voltage Range: 1.0-25.0V Step 1V or 0.1V
Discharge voltage: 1.00-30.00V
Maximum voltage measurement error: 1% +-0.02V
Power: 60W Super Power Automatic Limit Maximum Current (for example, 60W maximum 9.99A 6V, 3.00A single maximum 20V)
Maximum Battery Test Statistics: .9Ah or 9999Wh, Stop Value Test reaches (first value) Stop Status)
Positioning hole position: approx. 30mm
