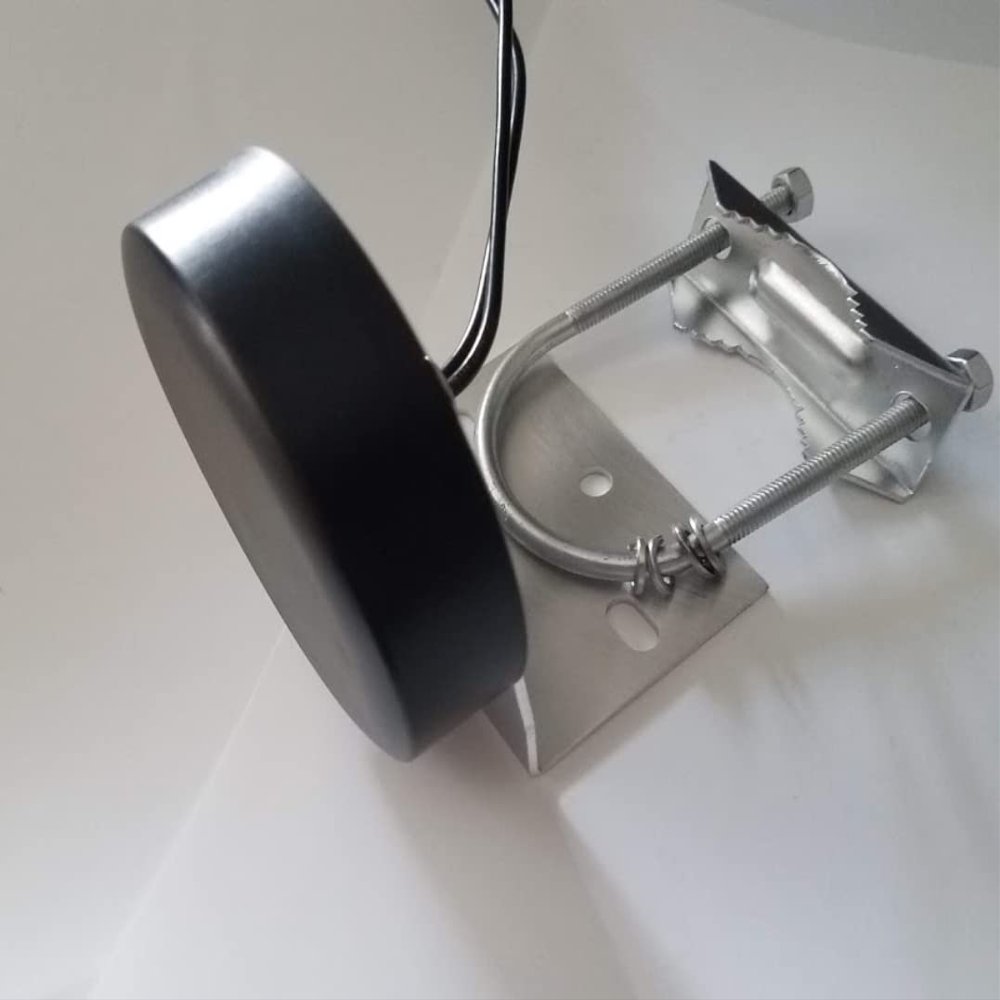

Compuport 5G LTE Dual Diversity Permanent Puck Antenna with 15' Cables SMA Male Cables Plus Wall/Pole Mount Antenna Bracket for Utilities, SCADA, IIoT/IoT or Smart Metering

Description

• Compuport LTE Antenna is a rugged, dual band LTE antenna with Main & Diversity connections for use with Microhard, Cisco, Sierra, AirLink, Digi, Multitech, Sixnet, Cradlepoint cellular modems.
• This antenna features dual LTE connections and a low profile puck style design. Frequency Range: 2X 698-960/1710-3800 MHz works for any wireless carrier Bell, Rogers, Telus, Verizon, AT&T and etc..
• The permanent mount version is ideal for applications where the antenna will be permanently mounted externally to a vehicle roof or a cabinet, Pole/Wall mount bracket is included
• Compatible with all SMA-based equipment including modems and routers & WiFi Signal Booster Repeater from Cisco, Digi,
• Usage: Professionally designed to Work with any LTE 5G 4G 3G HSPA GSM wireless Modems for Smart Metering, SCADA, Oil & Gas, Signage IIot, IoT and Mining

FEATURES:
Dual-Band: 2X 698-960/1710-3800MHz 5G/LTE Bands Dual LTE (Main/Diversity)
1-4 dBi Gain
Omnidirectional
50 Ohm Output Impedance
Wide Operating Temp (-40C to +85C)
Low Profile Puck Design
Includes Wall/Pole Mount Bracket designed in Canada

SPECIFICATIONS:
Frequency Range: 700 - 960 MHz & 1700 - 2700 MHz
Gain: 1-4 dBi
Output Impedance: 50 Ohm
VSWR: <2.5
Polarization: Linear Vertical
Temperature: -40oC to +85oC
Connector (LTE x2): SMA Male
Dimensions: 45mm H x 80mm OD (Base)
Humidity: 40% to 95% RH
Cable: RG174 - 15'

Proudly designed and Sold in CANADA
