Compatible for DJI O4 Air Unit Lite Heatsink Cooling Case with Wide-Angle Lens Holder and Video Transmission Shell Set Including Gasket(Full wrap heatsink)

Description

• Universal CompatibilityThis cooling case set is engineered to seamlessly integrate with mainstream digital transmission systems, providing a secure housing solution. Its precise cutouts ensure unobstructed access to all ports and buttons for smooth operation.
• Enhanced Thermal ManagementThe integrated heatsink design effectively dissipates heat during extended use, helping to maintain optimal operating temperatures. This promotes consistent performance and supports the longevity of your internal components.
• Wide-Angle Lens SupportIncludes a dedicated holder designed to accommodate wide-angle camera lenses. This setup helps stabilize your lens and protects it from vibrations or impacts during operation.
• Complete Protective Shell SetThe set comes with a full video transmission shell and a sealing gasket for a secure fit. This assembly offers comprehensive protection against dust and minor physical contact.
• Easy Installation & Secure FitDesigned for straightforward assembly with all necessary components included for a complete setup. The secure fitting design ensures all parts remain firmly in place during vigorous activities.

Specification:
- Item name: heatsink/lens case/heat dissipation shell
- Used for rc drone, compatible with O4 Air Unit Lite
Lens case features:
- Wide-angle lens case compatible with O4Pro filters; 145 augmented to 145 FOV without vignetting.
- High-strength nylon shell; dual-hole installation.
- After augmentation, the shooting range has approached that of the O4 PRO.
Lens case installation method:
- Align and insert the O4 lens into the front shell, then close the rear shell.
- Hold the front and rear shells tightly together while tightening the M1.2X5 screws .(Do not screw in too deeply.)
- Caution: Plug coaxial cable upward only. Reverse insertion may cause burnout. M2 threads have limited depth. Avoid long screws to prevent damage. When the 'R' logo is oriented correctly, snap the part into place.

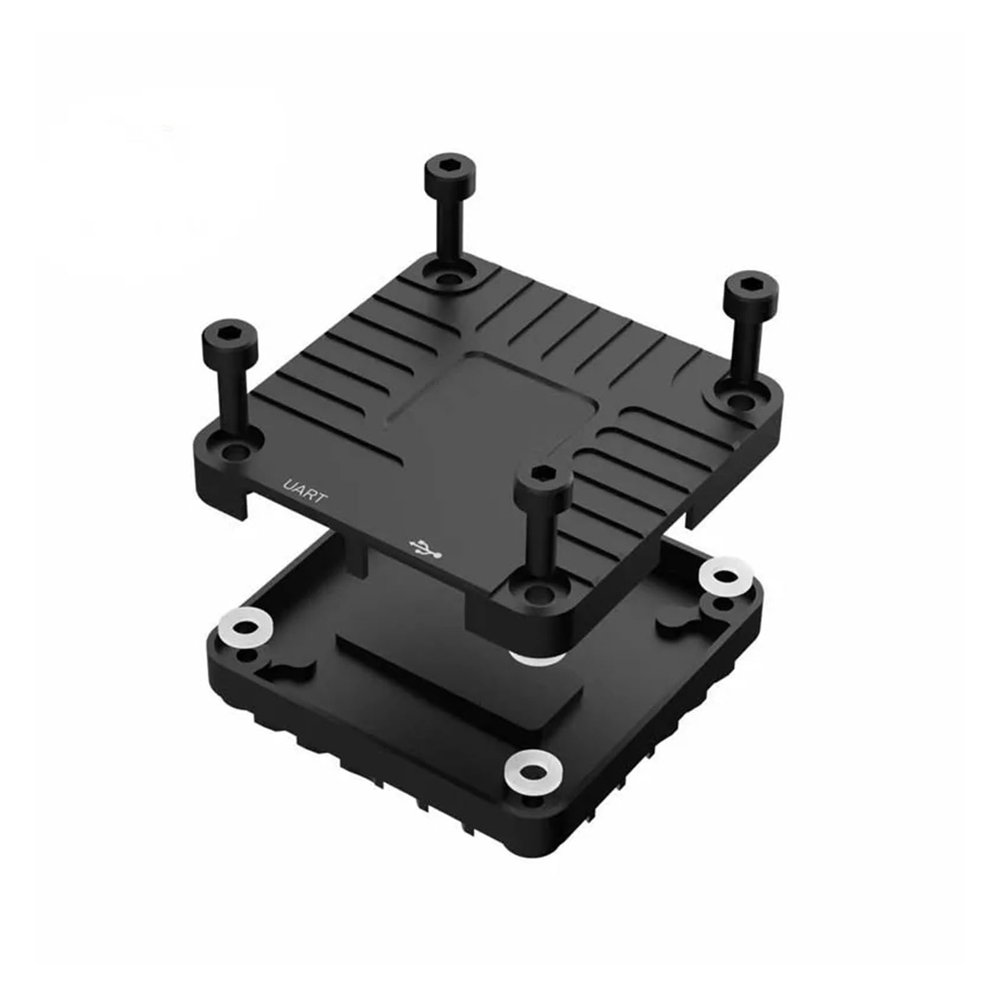

The heatsink features:
- All-inclusive shell with ultra-light weight: comparable to surface heat sinks; complete set including screws/washers is only 7.0g.
- Gasket shockproof: eight silicone shock-absorbing rubber rings at the four corners; effectively prevent collision damage.
- Multi-hole compatibility: 20/25.5 mm mainstream dual-hole positions compatible with mainstream racks on the market.
- Full wrap: fully wrapped after assembly with no gaps, and the data port is completely aligned with Type-C.
- Efficient heat dissipation: 2 mm high ultra-thin heat sink fins with fully connected flow channels for super strong convection heat dissipation.
The heatsink installation method:
- Apply the thermal conductive silicone grease evenly on the protrusions inside the upper and lower shells.
- Place rubber washers on the top and bottom of the screw holes of the O4 air unit.
- Then tighten the four M2x6 screws at each corner to complete the installation. (Note the installation direction of the lower shell.)
Note: the image transmission, camera, and other items in the picture shown will not be included.
Package include:
1set x wide-angle lens case
or
1set x full wrap heatsink
==========
Is Electric : No Battery
Wheelbase : Screws
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
Size : others
Model Number : for rc drone
For Vehicle Type : Airplanes
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : heat dissipation shell
Upgrade Parts/Accessories : lens case
RC Parts & Accs : heatsink
Material : Composite Material
