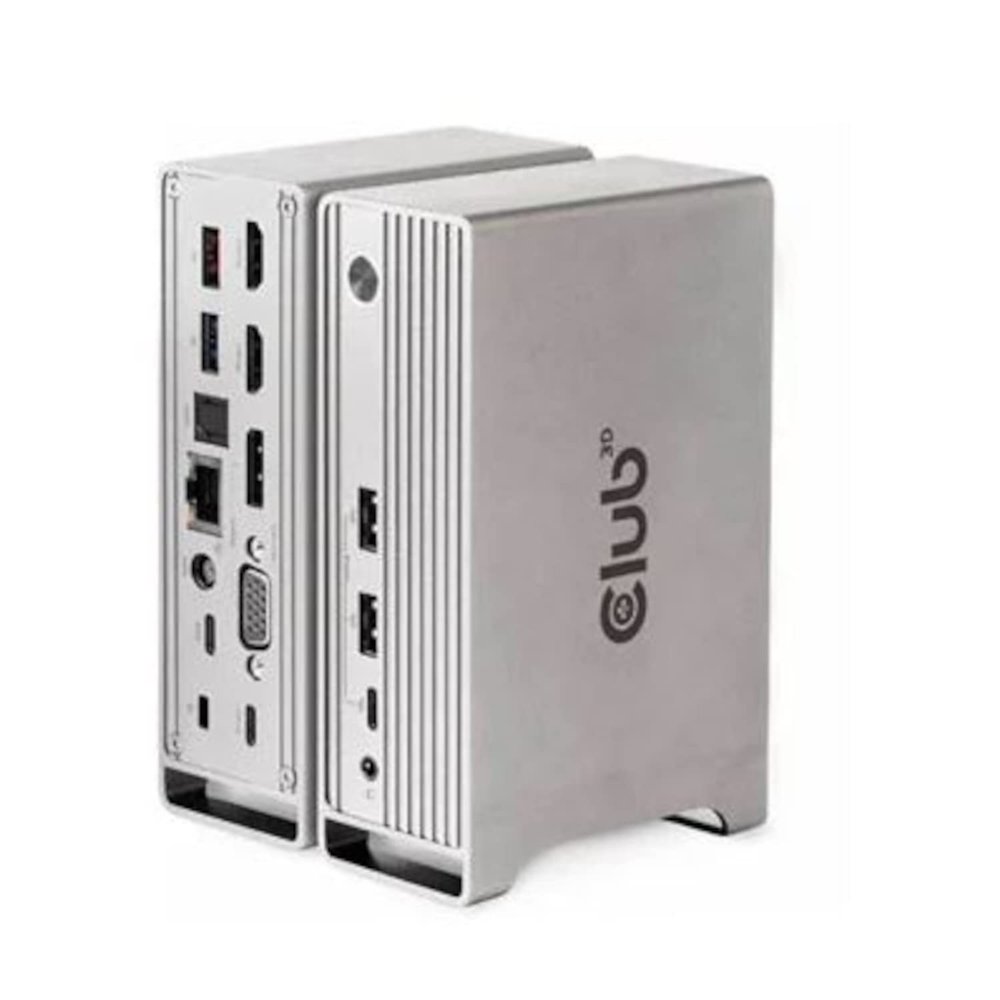

Club 3D CSV-1568 Docking Station

Description

• Support smart power which allows to distribute power
• Support digital audio

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only.,Features:,Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc),Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA),When 3 Displays are connected - 16.2Gbps bandwidth will be shared,Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz,DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2,DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2,DP and HDMI support deep color 8/10 bit,DP and HDMI support HDR,DP and HDMI support HDCP2.2&1.4,DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display,Support Gigabit Ethernet 10/100/1000M,Support USB3.2 Gen2 with max 10Gbps data transfer,Support smart charging,Support Digital audio with max 96KHz/24bit sampling rate,Support dual power supplies: Type-C PD charging or DC Jack,Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices,Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
