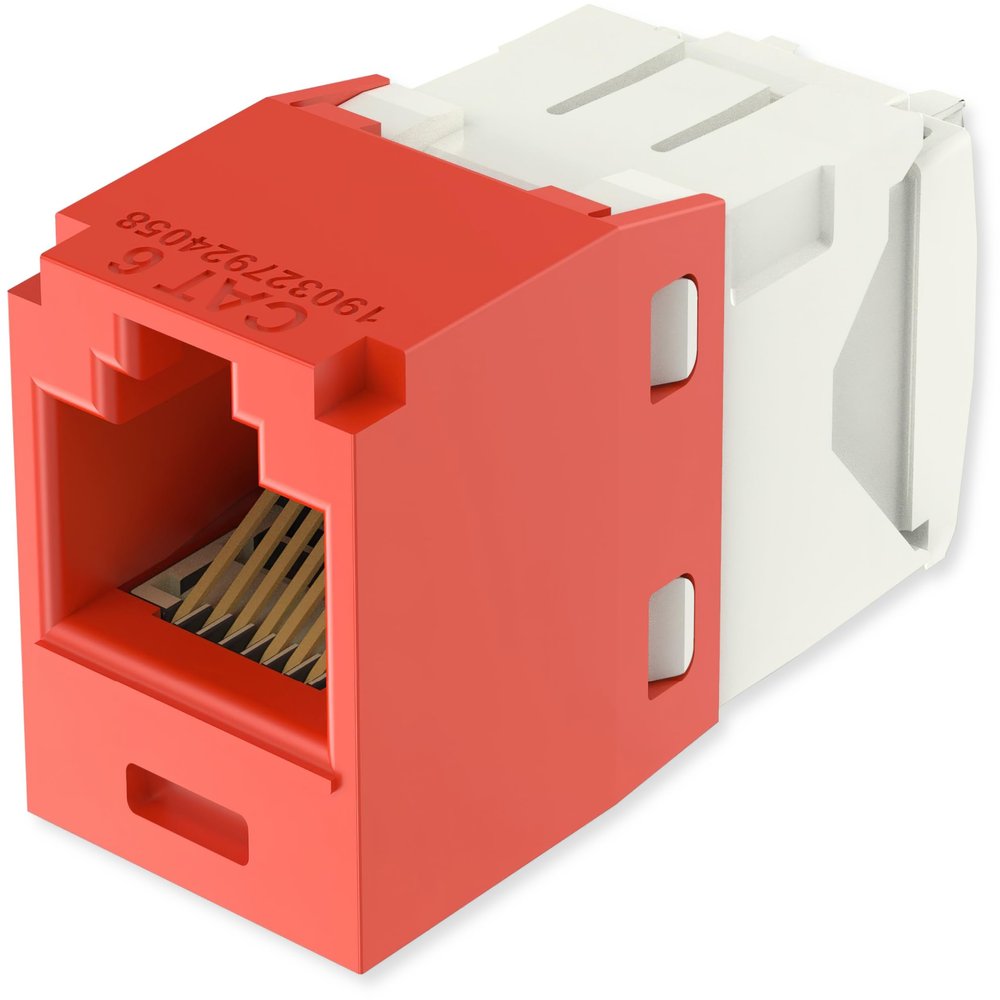

CJ688TGRD Category 6 TX6 Plus Mini-Com UTP Jack Module, Red, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring

Description

• Category 6 rated: delivers high-speed data performance for demanding Ethernet networks
• Toolless termination: TG-style termination enables quick installation without specialized tools
• Universal wiring: supports both T568A and T568B wiring schemes for flexible network integration
• Durable construction: robust polycarbonate housing and gold-plated contacts ensure a long lifespan
• Color coded: red module distinguishes category 6 plus performance for easy identification
• Optimized pair geometry: maintains cable geometry to reduce signal loss and maximize data integrity
• PoE ready: supports IEEE 802.3af and 802.3at Power Over Ethernet applications
• Versatile fit: compatible with mini-com patch panels, faceplates, and surface mount boxes
• Backwards compatible: interoperable with existing Cat5e and legacy systems for future-proofing connections

CJ688TGRD Category 6 TX6 PLUS Mini-Com UTP Jack Module, Red, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring
The CJ688TGRD Mini-Com TX6 PLUS UTP Jack Module delivers category 6 network performance in a toolless, easy-to-install form factor. With universal T568A/T568B compatibility, durable gold-plated contacts, and robust polycarbonate housing, it sets the standard for reliable, high-speed ethernet. Designed for effortless integration in commercial and enterprise networks. Key Features: Cat6 performance for GbE applications TG style toolless termination for fast setup Universal T568A and T568B wiring compatibility Gold-plated phosphor bronze contacts for signal clarity 8-position, 8-wire RJ45 modular jack design High heat resistance from -10C to 65C RoHS compliant for safety and sustainability Configurable with Mini-Com patch panels and accessories Accepts 22-26 AWG solid or stranded cable Compact module size for versatile installations Specifications: Color Code: Red Performance Level: Category 6 Connector Type: Jack Module - Standard Termination Style: TG Style Body Material: Polycarbonate Contact Material: Plated phosphor bronze Shield Type: Unshielded (UTP) Maximum Operating Temperature (F): 167 Minimum Operating Temperature (F): 14 Maximum Storage Temperature (F): 167 Minimum Storage Temperature (F): -40 Resistance Properties: Heat resistant Overall Dimensions (HxWxL): 0.71 x 0.62 x 1.5 inches
