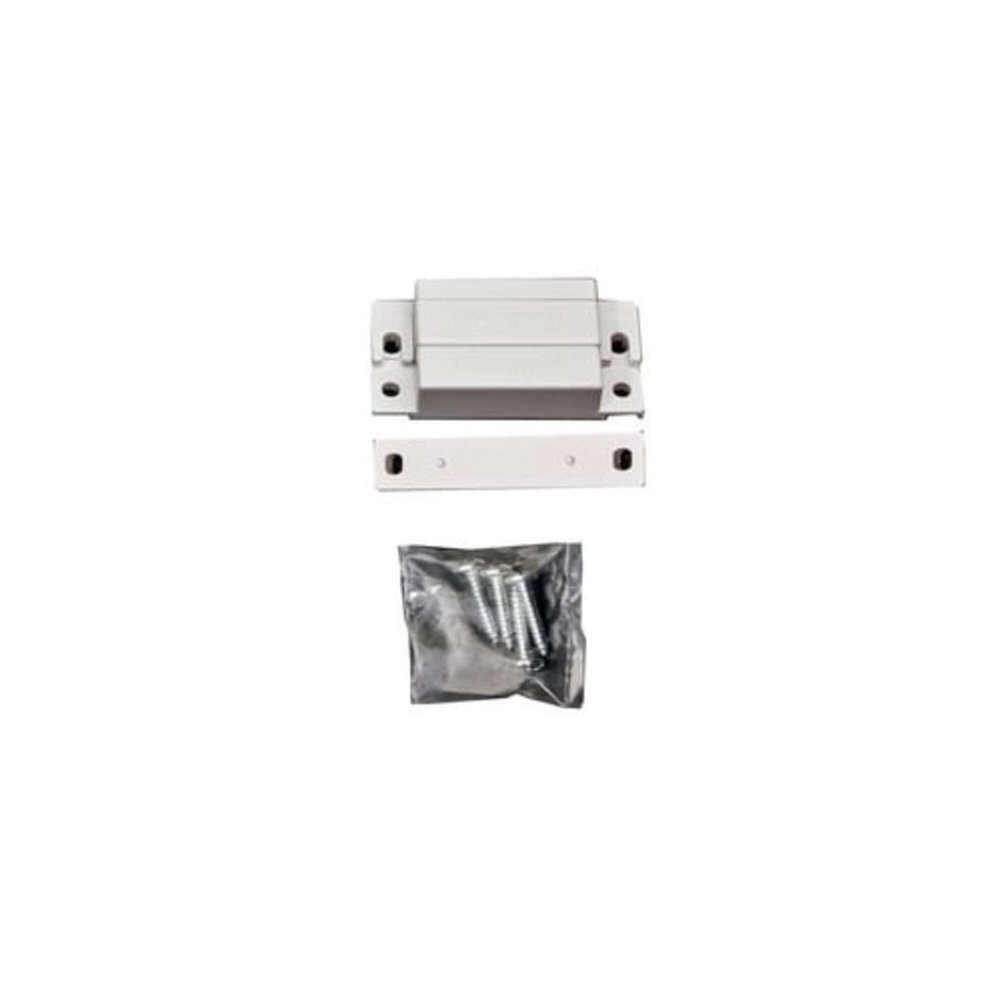

Chatsworth - 60115-001 - Door Sensor, Plastic, 200V dc, White, 2.5 H x 1.25 W x 0.625 D in., (Each)

Description

• The Magnetic Door Sensor is a surface-mounted, wired, magnetic proximity sensor used to detect when a door is opened and closed or when a cover panel is attached or removed
• Contact Ratings: 3
• 0W max
• @ 30 VDC or 30 VAC max
• @ 0

The Magnetic Door Sensor is a surface-mounted, wired, magnetic proximity sensor used to detect when a door is opened and closed or when a cover panel is attached or removed. Contact Ratings: 3.0W max. @ 30 VDC or 30 VAC max. @ 0.3A max.; 1.0 msec. max. operate time (including bounce); 1.0 Amp max. carry current. Contact Resistance: 100 mOhm max. initial. Dielectric Strength: 200 VDC min. Electrical Circuit: SPST NO (contact Form A). Reed switch opens when magnet is removed from proximity. Contacts are held closed when magnet is in actuation range. Operating Temperature Range: -40F to 212F (-40C to 100C). Operating Distance/Alignment: 1.25 (31.8 mm) make gap; Operate (make) points are nominal values with 10% tolerance. Release points are 110% to 150% of the operating points. This listing is for Each.
