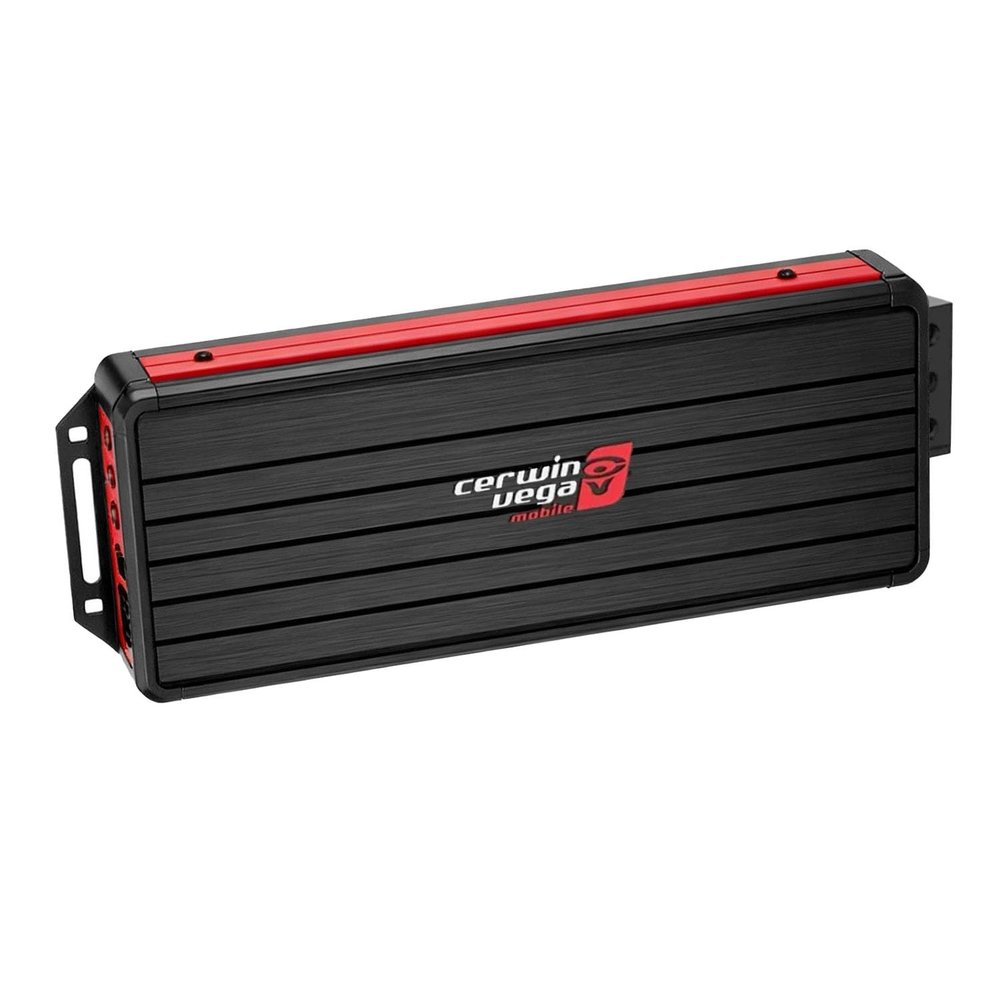

Cerwin-Vega VCU86 Vega Series 6-Channel Class D Digital Amplifier | 900W Max, Compact & High-Efficiency Full-Range Power

Description

• Monstrous 6-Channel Power: Unleash up to 1520W of total RMS power. This versatile amp delivers 100W x 6 at 4, can be bridged to 300W x 3 for a powerful subwoofer, and drives your entire system with absolute clarity and precision.
• Advanced Class-D Efficiency & Clarity: Features a high-efficiency full-range digital topology and an Enhanced Power IR chipset for exceptional, crystal-clear sound with minimal distortion and maximum energy efficiency, all in a compact design.
• Superior Durability for Real-World Use: Built to last with a conformal-coated, 4-layer PCB and a water-resistant design that protects against moisture and environmental wear, ensuring reliable performance on any journey.
• Unmatched Versatility & Easy Integration: Equipped with a remote turn-on configurator (REM/DC/VOX), accepts both high and low-level inputs up to 12V, and features boosted RFI rejection for seamless, interference-free installation with any factory or aftermarket stereo.
• Precision Sound Control: Take command of your audio with built-in variable crossovers, including high-pass, low-pass (40Hz-400Hz), and subsonic filters, allowing you to perfectly tune the system's performance to your exact preferences.

VCU86 - VEGA Class-D Digital 6 Channel Amplifier
Cerwin-Vega Vega Series Amplifiers Compact Design, Monstrous Power
The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Dont be deceived by their streamlined designthese amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Innovation Meets Power
Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.Engineered for Durability
Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.Unmatched Versatility
Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.Compact Design, Big Impact
The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.
Why Choose Vega?
Whether youre a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance thats hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.
The Vega Legacy
With Cerwin-Vegas unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define whats possible in mobile sound systems.
Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.
Specifications
POWER RATING
FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4 100W X 6
RMS POWER PER CHANNEL 2 150W X 6
RMS POWER PER 2 CHANNELS BRIDGED 4 300W X 3
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)DISTORTION
THD 4 (1KHz @4): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBAINPUT SENSITIVITY
Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0VINPUT IMPEDANCE
Low Input Level: 20 K
High Input Level: 20 KOUTPUT STAGE
Output Impedance: 0.018
Damping Factor (50Hz @ 4): >250
Bandwidth (-3dB): 10Hz-35KHzCROSSOVER (-12/-24 dB/Oct)
Variable High-Pass: Flat or Fixed 70Hz
Variable Low-Pass: 40Hz-400Hz
Variable Sub-Sonic:FUSE RATINGS
ATC: 60ADIMENSIONS
L x W x H: 11.24x 4.02x 1.4 (285.6mm x 102mm x 36mm)FEATURES
Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
SMD Technology on 4-Layer PCB Board
Water Resistant Conformal PCB Board Coating
1-year Manufacturer's Warranty
