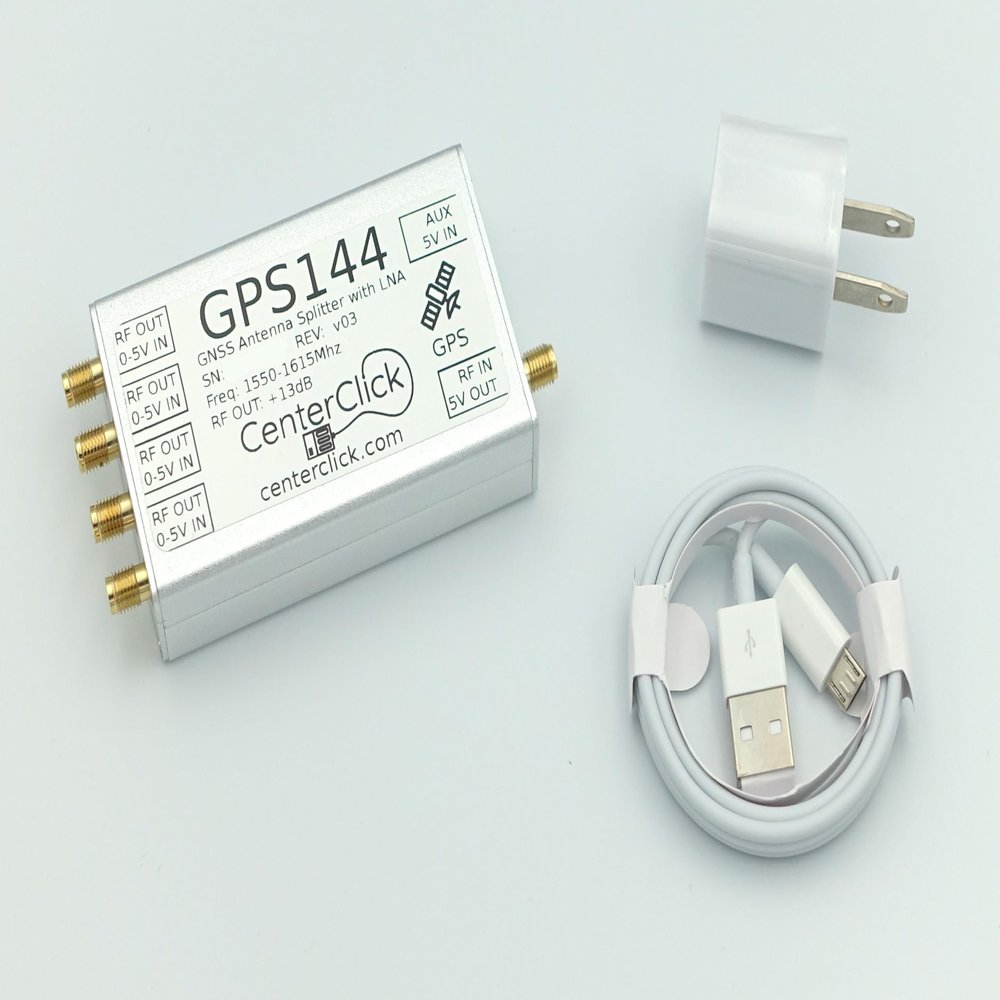

CenterClick GPS14x GPS/GNSS 4-Way Splitter for Powered Antennas (GPS144)

Description

• 5V output to upstream GNSS antenna
• Output voltage boosted to 5V from lower voltage downstream inputs
• USB Aux power input
• SMA connectors
• GNSS L1 Frequency
• Amplified Output, +13dB

The GPS14x series is a 1 to 4 RF Splitter for 1550-1615Mhz (GNSS L1) frequencies that can power an upstream GNSS antenna and be powered by downstream ports and/or a USB Aux input. They are built around high quality RF splitter ICs from Mini-Circuits. The GPS14x series support power inputs from any or all of the downstream ports and/or an auxiliary USB port. All RF inputs are DC blocked from each other allowing some ports to be powered and others not. The splitter requires power on at least 1 input but any or all combinations of inputs are supported at once.
