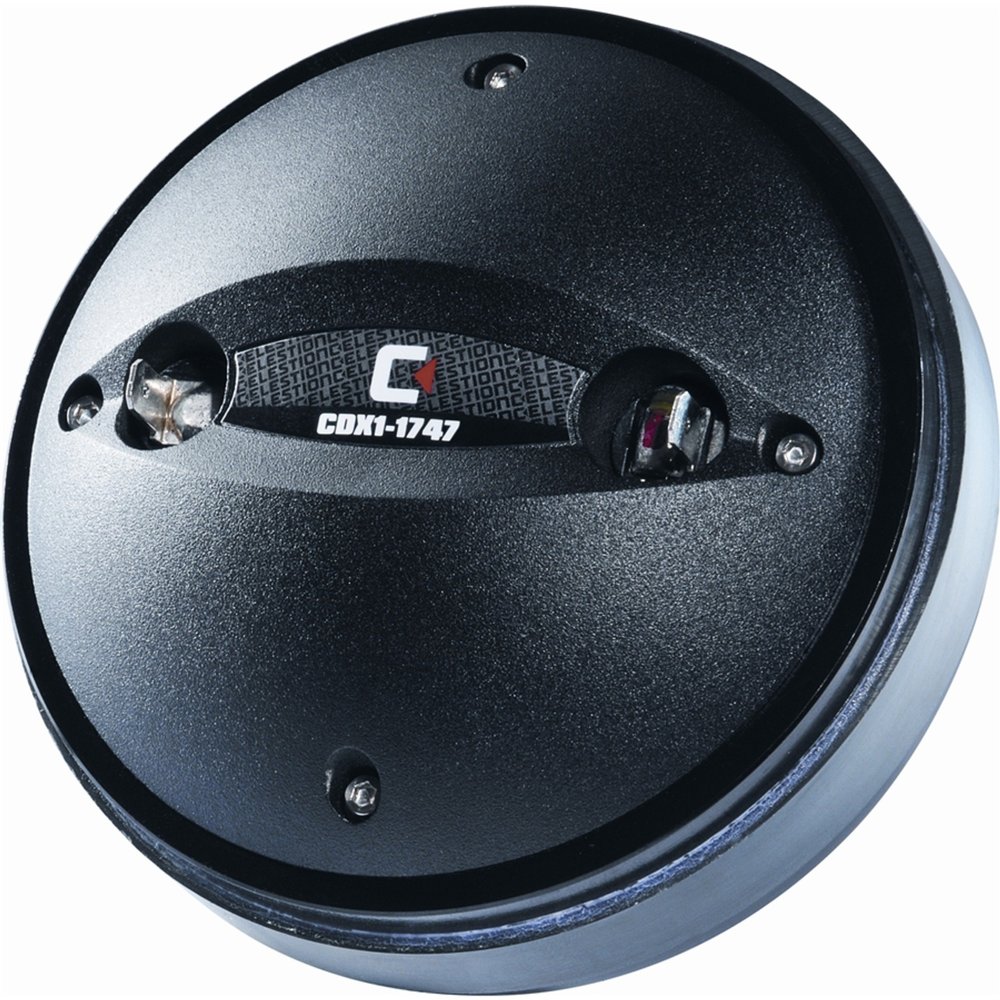

CELESTION T5848 CDX1-1747 1" 60-Watt Ferrite Magnet Compression Driver AES Standard - 8 Ohm

Description

• General Specifications : Power rating : 160Wrms || Continuous power rating : 2120W || Nominal impedance : 8 || Frequency range : 1000-20,000Hz || Sensitivity : 3110dB || Recommended min. crossover (12dB/oct) : 2000Hz 12dB/oct || Voice coil diameter : 44mm/1.75in || Voice coil material : Edgewound Copper Clad Aluminium || Magnet type : Ferrite || Diaphragm material : Polyimide || Surround material : Polyimide
• Mounting Information : Width : 120mm/4.72in || Depth : 53mm/2.08in || Weight : 2.3kg/5.1lb || Fitting : Flange (2/3 M6 holes on 76/57.2, 3.0/2.224in PCD) || Throat exit : 25.4mm/1.0in || Packed Dimensions & Weight : Single pack size W x D x H : 140mm x 170mm x 70mm || /5.5in x 6.7in x 2.8in || Single pack weight : 3kg/6.6lb
• Features Include : 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil || 60Wrms power handling (AES standard) and 110dB sensitivity
• Sound Castle clamping ensures even pressure on diaphragm assembly for reduced distortion || One piece Polyimide diaphragm and surround || Finite Element Analysis (FEA) used to optimize both magnet assembly and acoustic design
• Compatible Horns : H1-9040P, H1-7050 No Bell

Features Include : 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil || 60Wrms power handling (AES standard) and 110dB sensitivity || Sound Castle clamping ensures even pressure on diaphragm assembly for reduced distortion || One piece Polyimide diaphragm and surround || Finite Element Analysis (FEA) used to optimize both magnet assembly and acoustic design || General Specifications : Power rating : 160Wrms || Continuous power rating : 2120W || Nominal impedance : 8 || Frequency range : 1000-20,000Hz || Sensitivity : 3110dB || Recommended min. crossover (12dB/oct) : 2000Hz 12dB/oct || Voice coil diameter : 44mm/1.75in || Voice coil material : Edgewound Copper Clad Aluminium || Magnet type : Ferrite || Diaphragm material : Polyimide || Surround material : Polyimide || Mounting Information : Width : 120mm/4.72in || Depth : 53mm/2.08in || Weight : 2.3kg/5.1lb || Fitting : Flange (2/3 M6 holes on 76/57.2, 3.0/2.224in PCD) || Throat exit : 25.4mm/1.0in || Packed Dimensions & Weight : Single pack size W x D x H : 140mm x 170mm x 70mm || /5.5in x 6.7in x 2.8in || Single pack weight : 3kg/6.6lb || Compatible Horns : H1-9040P, H1-7050 No Bell
