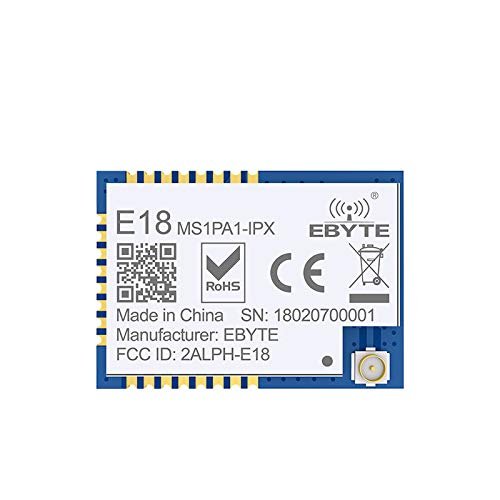

CC2530 F256+PA Zigbee 3.0 2.4Ghz Wireless Module cdebyte E18-MS1PA1-IPX Development Board IPEX IPX Data Transceiver

Description

• ApplicationSmart homes and industrial sensors; Security system, positioning system; Wireless remote control, drone Wireless game remote control Health care products Wireless voice, wireless headset Automotive industry applications.
• Technical Manual support: http://www.ebyte.com/en/product-view-news.aspx?id=123
• The measured communication distance is up to 1000 m; Maximum transmission power of 100mW, software multi-level adjustable; Built-in ZigBee protocol stack; Factory-installed self-organizing network firmware, ready to use; Support peripherals such as ADC, PWM, GPIO; Support UART transparent transmission, easy to use; Built-in 32.768kHz clock crystal oscillator;
• Support the global license-free ISM 2.4GHz band; Rich resources, 256KB FLASH8KB RAM
• Built-in CC2592 RF range extender with integrated PA+LNA; Support 2.0V~3.6Vpower supplypower supply over 3.3Vcan guarantee the best performance; Industrial grade standard design, support -40 ~ 85 C for working over a long time; IPEX interface for easy connection to coaxial cable or external antenna.

[Introduction] : E18-MS1PA1-IPX is based on original imported RF chip CC2530 form TI in America. The IC chip is integrated with 8051 microcontroller and wireless transceiver, which is applicable to Zigbee design and 2.4GHz IEEE 802.15.4 protocol.and equipped with power amplifier chip CC2592,the transmitting distance is much longer than before
[IC] : CC2530
[Frequency] : 2.4~2.48GHz
[Power] : 20dBm
[Distance] : 1.0km
[Interface] : IO
[Weight] : 1.50.1g
