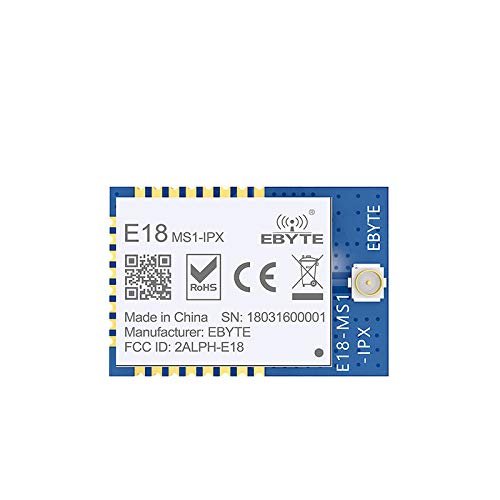

CC2530 2.4G Zigbee RF Wireless Module ebyte E18-MS1-IPX iot SOC IPEX Interface Networking Data Wireless Transmitter Receiver

Description

• ApplicationSmart homes and industrial sensors Security system, positioning system Wireless remote control, drone Wireless game remote control Health care products Wireless voice, wireless headset Automotive industry applications.
• The measured communication distance can reach 240 m; Maximum transmission power of 2.5mW, software multi-level adjustable; Built-in ZigBee protocol stack; Factory-installed self-organizing network firmware, ready to use;
• Support peripherals such as ADC, PWM, GPIO; Support UART transparent transmission, easy to use; Built-in 32.768kHz clock crystal oscillator; Support the global license-free ISM 2.4GHz band;
• Rich resources256KB FLASH8KB RAM; Built-in high performance low power 8051 microcontroller core with code prefetch; Support 2.0V~3.6Vpower supplypower supply over 3.3Vcan guarantee the best performance; Industrial grade standard design, support -40 ~ 85 C for working over a long time; IPEX interface for easy connection to coaxial cable or external antenna.

[Introduction] : E18-MS1-IPX is based on original imported RF chip CC2530 form TI inAmerica. The IC chip is integrated with 8051 microcontroller and wireless transceiver, and applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol.All the IO ports are led out by the module,which means that multi-aspect development is realizable.
[IC] : CC2530
[Frequency] : 2.4~2.48GHz
[Distance] : 0.24km
[Interface] : IO
[Weight] : 1.30.1g
