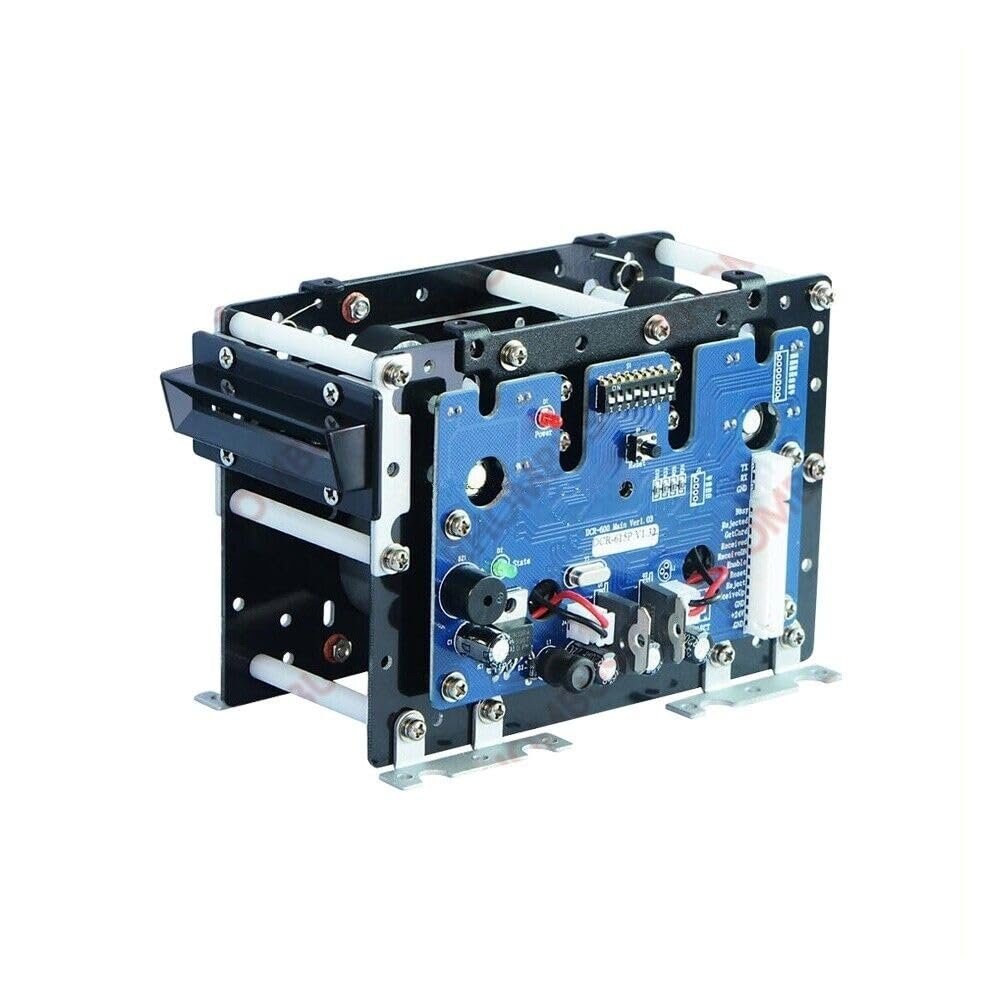

Card Collector for Parking System/Card Collector Module

Description

• Rating Voltage: 24VDC10% Current Consumption: Peak-2.2Amp Static Consumption: 0.1Amp Temperature: -40 to 85industrial Relative humidity: 30%-90% Location: Within a suitable cabinet Applicable card size: width:54 0.5 mm,length:85 0.5 mm card, card thickness: 0.3 2.5 mm (adjustable) (Note: the factory is set to 0.8mm) Collect card time: >0.5s Control interface:TTL level(active low),RS232(SDPP protocol)

ModelDCR-615

Applications
Intelligent parking lots system
Auto ticket vending machine
High way card dispensing system

Main characteristics
With options to quit cards and callback cards if overtime under jamming
With options to quit cards or callback cards in force under jamming
With options to quit cards or not quit cards if overtime
With options for the time of quitting cards if overtime
With the function of avoiding wrong collection and card following. If the movements of the first card is not be finished, the second cards will not be collected
The signal of enabling of monitor computer and open can be offered
The validation or invalidation of cards can be received
Sound and light alarm in error condition

Technical parameters
Rating Voltage: 24VDC10%
Current Consumption: Peak-2.2Amp
Static Consumption: 0.1Amp
Temperature: -40 to 85industrial
Relative humidity: 30%-90%
Location: Within a suitable cabinet
Applicable card size: width:54 0.5 mm,length:85 0.5 mm card, card thickness: 0.3 2.5 mm (adjustable) (Note: the factory is set to 0.8mm)
Collect card time: >0.5s
Control interface:TTL level(active low),RS232(SDPP protocol)
Control interface
TTL electrical level control interface is offered by the TCR-615 card collector which is educed by the CN1 of electrical outlet in the control broad. The socket connectors with 2.54 mm space between is used as electrical outlet.
1.GND0 V)-power
2.+24VDC-Power
3.GND-0V
4.Receive-Low voltage is effectivethe last time exceed 200ms
5.Reject-Low voltage is effectivethe last time exceed200ms
6.NC-non use
7.Enable-10K upward pull inputLow voltage is effective
8.NC-Non use
9.Received-Output open collectorLow voltage is effectiveabout500ms
10.GetCard-Output open collector, Low voltage is effective
11.Rejected-Output open collector Low voltage is effective
12.jammed-Output open collector Low voltage is effective12
Packing:
1* TCR-615 card Collector
1* Cable12PIN
1* Cable2(3PIN
1* Card mouth

Package1x Card collector Module
