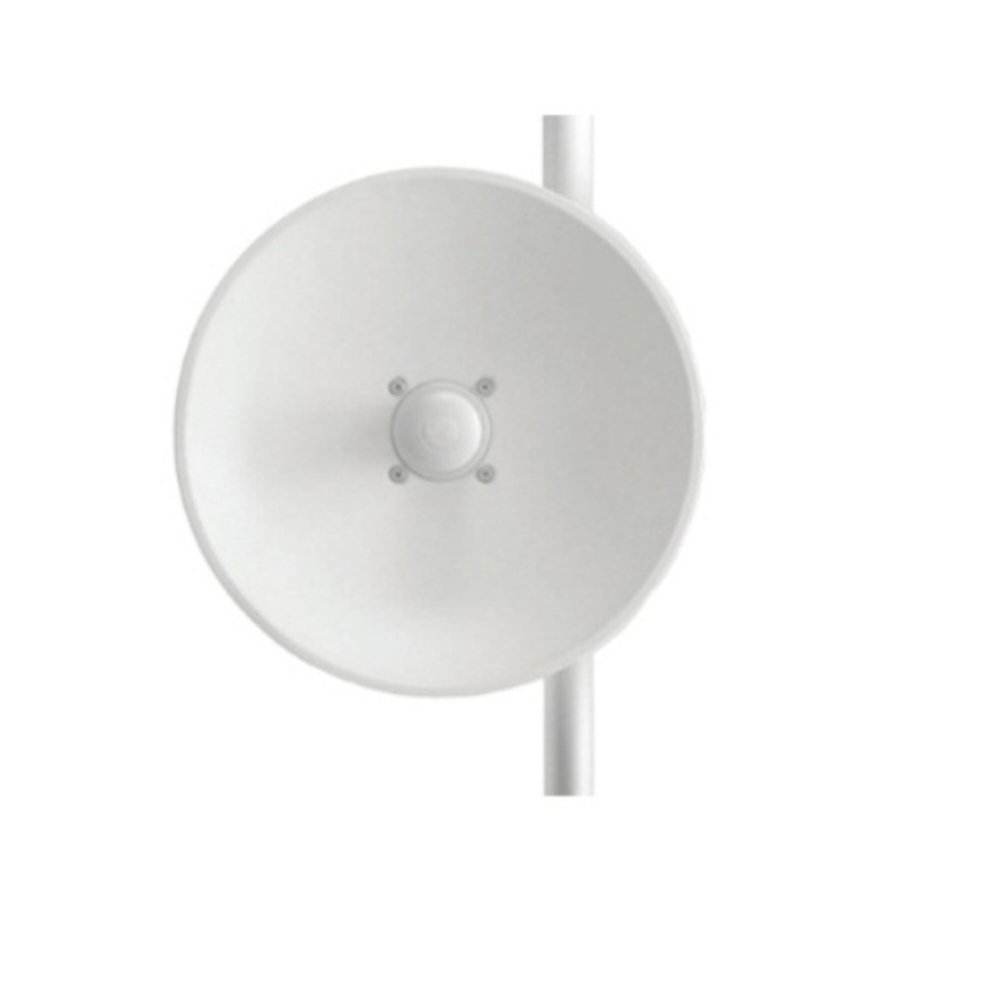

Cambium Networks 5 GHz 450b - High Gain - FCC - Radio Only - Spare

Description

• This is the radio only
• The Cambium Networks PMP 5 GHz 450b High Gain Radio platform increases performance with the addition of the PMP 450b Subscriber Module
• This PMP 450b Subscriber Module features ultra-wide band radios which support the entire band, from 4
• 9 to 5
• 925 GHz

This is the radio only. The Cambium Networks PMP 5 GHz 450b High Gain Radio platform increases performance with the addition of the PMP 450b Subscriber Module. This PMP 450b Subscriber Module features ultra-wide band radios which support the entire band, from 4.9 to 5.925 GHz. Gigabit Ethernet Interface provides the maximum transfer rates to the device. 3.5 mm audio jack allows direct connection of headphones without any adapters. New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM. Capable of up to 300 Mbps aggregate in a 40 MHz channel. Product Features: Ultra-wide band radios support from 4.9 to 5.925 GHz Gigabit Ethernet Interface 3.5 mm audio jack New System on a Chip (Soc) enhancing Packet Processing Power more than 4x that of the 450 Subscriber Module Capable of up to 300 Mbps aggregate in a 40 MHz channel Backhaul radios can function as a Point-to-Point (PTP) link or as a a Subscriber Module (SM), except for Global models Product Specifications: Channel Spacing: Configurable on 2.5 MHz increments Frequency Range: 4900-5925 MHz Channel Width: 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz MAC (Media Access Control) Layer: Cambium Networks proprietary Physical Layer: 2x2 MIMO OFDM Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant Protocols Used: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, , FTP 1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID Encryption: FIPS-197 128-bit AES, 256-bit AES (optional) PPS: 50, 000 ARQ: Yes Ultimate Sensitivity: -94 dBm Maximum Deployment Range: Up to 40 miles (64 km) Latency: 3-5ms, typical GPS Synchronization: Yes, synchronized by Access Point Quality of Service: Diffserve QoS Transit Power Range: 22 dB dynamic range (to EIRP limit by region) (1 dB step) Maximum Transit Power: +27 dBm (MIMO, combined V+H)(+22 dBm @ 256QAM) Integrated Antenna Peak Gain: 24 dBi 3 dB Beamwidth- Azimuth: 7 3 dB Beamwidth- Elevation: 7
