Generic BZGNSS BZ-121 BZ-181 BZ-251 Dual Protocol GPS Positioning Module Suitable FPV Out of Control Rescue Fixed-Wing Crossing Drones (Limited Edition BZ-181)

Description

• BZGNSS cost-effective-GPS, fast star-search, search more-stars, accurate positioning.Antenna: ceramic-antenna (oil-spraying process, prevent scratching and oxidation)
• Easy to Install: The compact and lightweight design of this module makes it easy to install on any RC airplane or FPV fixed-wing aircraft.
• Can be used with F4 F7-and other flight-control, to achieve-more flight functions.
• High-precision Positioning: With advanced GPS positioning technology, this module provides accurate and reliable position information to help you navigate your aircraft with confidence.
• Dual-protocol Support: This GPS module supports both NMEA and UBX protocols, giving you the flexibility to use it with a wide range of devices and flight controllers.

Item: BZGNSS BZ-121 BZ-181 BZ-251 GPS

Parameters:
BZ-121
Chip:M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V
Size:12x16x4.5mm
Interface:PCB Pad
Weight:2.2g
Antenna:Ultrathin Ceramic Antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels:72 search channels
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40C~+85C
Storage temperature:-40C~+105C
Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

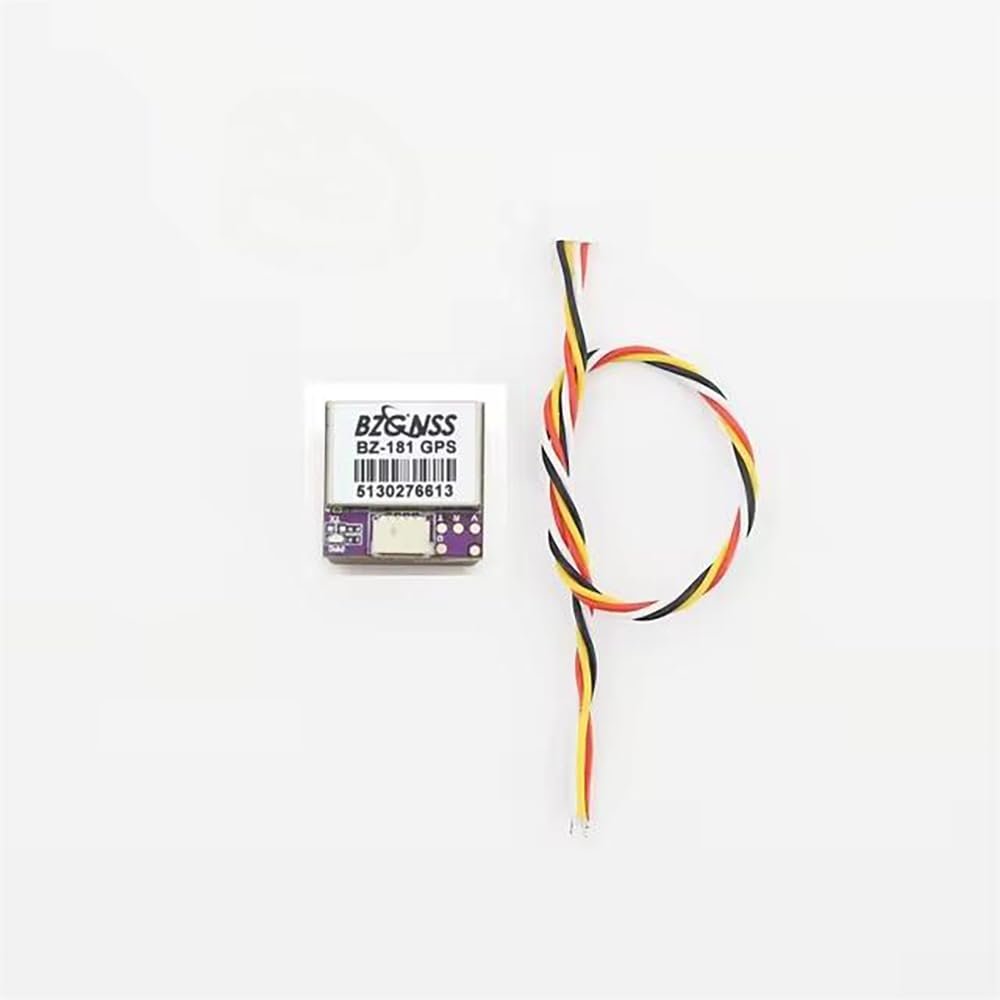

BZ-181
Chip: M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V
Size:18x18x4.8mm(Thinnest point)
18x18x6mm(Including thickness of terminal block)
Interface:SH1.0 4Pin
Weight:6.9g
Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna
Receiving channels:72 search channels
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40C~+85C
Storage temperature:-40C~+105C
Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

BZ-251
Chip:M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V
Size:25x25x7.2mm(Thinnest point)
25x25x6mm(Including thickness of terminal block)
Interface:SH1.0 6Pin
Weight:11.6g
Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna
Receiving channels:72 search channels
Compass:QMC5883
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40C~+85'C
Storage temperature:-40C~+105C
Indicator light:
The power on red light of the TX light flashes, indicating that there is data output PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning
Package Included:BZGNSS BZ-121 or BZ-181 or BZ-251 GPS x 1(Select according to requirements)
