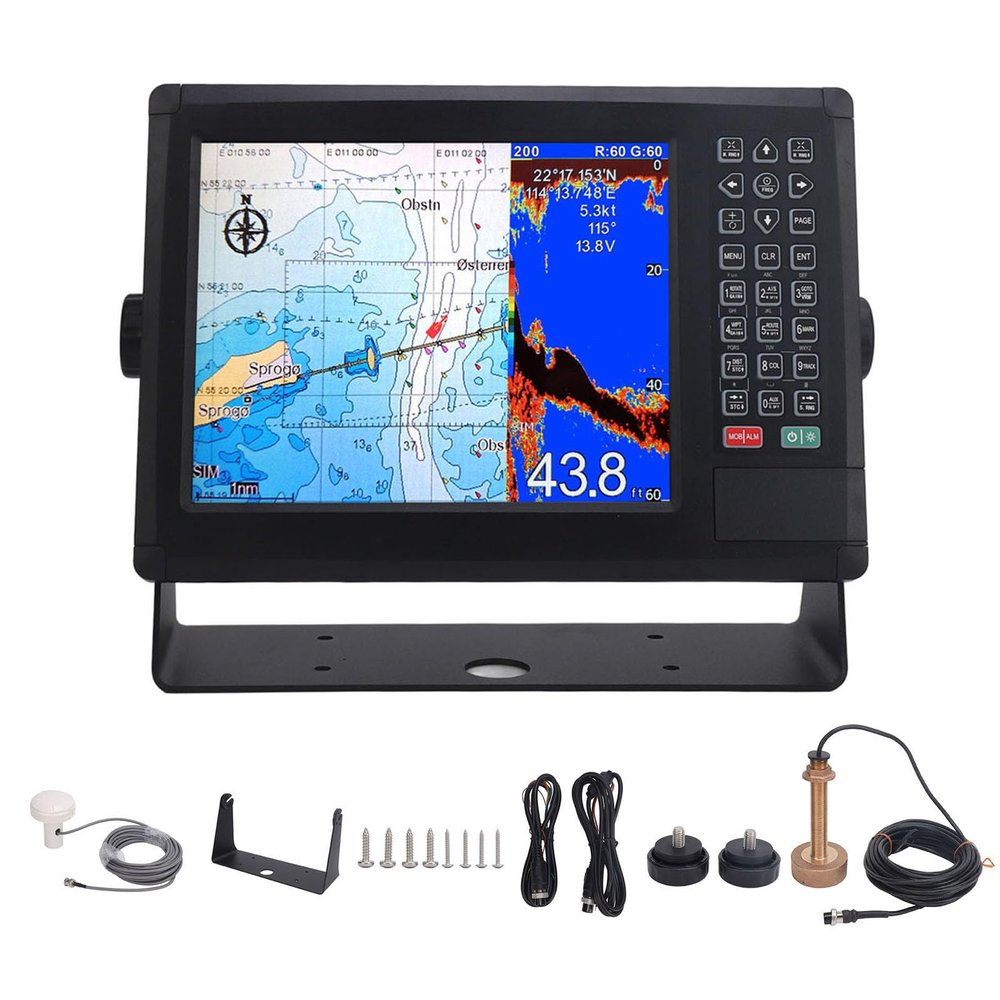

Brilluxa Marine Plotter, 10.4in Chart Display Unit Compatible with XINUO Fish Finder System, Seabed Mapping Plotter with Transducer

Description

• Intelligent Automatic Operation: This marine plotter offers an intelligent automatic operation mode in sounder mode such as automatic seabed tracking, auto range, auto shift, and auto gain control, making it easy to operate and increasing efficiency.
• Advanced Interference Remover Algorithm: Equipped with a self developed interference removal algorithm, the marine navigation plotter effectively suppresses co frequency interference, offering a clearer and more accurate reading.
• Built in for XINUO Chart: The device comes with a built in for XINUO chart which gets regularly updated. Plus, it's capable of connecting to a mobile network for convenient software updates online, offering up to date information.
• Stable and Reliable Design: The boat plotter features a floating GND power design that's not only stable but reliable. This ensures that it can withstand long term use in harsh marine environments.
• Dual Operating System: This boat plotter boasts a classic and utility dual operating system. Users can freely switch between the two. Whether you are fishing on the coast or offshore, it can help you accurately locate the fish.

Item Type: Marine Plotter
Material: ABS
Display: 10.4 inch Color TFT LCD
Display Resolution: 800 x 600 pixels
Display Brightness: 300cd/m2
Language: English, Simplified Chinese, Traditional Chinese, Vietnamese
Memory Capacity: 6000 waypoints; 10000 marks; 800 tracks; 200 routes (48 points each route); 200 drawlines (40 points each drawline)
Interface: For NMEA Input 2 Ports, 0183 Output 2 Ports
Chart: for XINUO Chart
Power Supply: DC10V-36 V
Manual phase shift: each basic range can be shifted up and down: one unit value at a time
Zoom Mode: Bottom Lock, Bottom Zoom, Normal Zoom (mid water level) selectable
Display modes: full screen (single frequency), zoomed in split screen (single frequency), bottom locked split screen (single frequency), split screen (dual frequency)
Gain control: 31 levels adjustable per operating frequency
STC level: 10 levels adjustable per operating frequency
Seafloor tracking modes: auto range mode, auto displacement mode
Return wave color: 8 colors
Return wave signal classification: 1, 2, 3, 4
Return wave background color: blue (default), black, white
De coloring: 4 weaker return wave colors can be turned off
Seabed contour lines: Highlight the seabed contour display
Screen movement speed: 0 1 2 3 4 5 6 7 8
Noise reduction level: low, medium, high
Depth alarm mode: shallow water alarm mode, deep water alarm mode
Fish alarm color: 7 different colors according to return wave: 1L (strong) 2L 3L 4L (medium) 5L 6L 7L (strong)
Fish alarm size: small, medium, large
Depth reading: flexible depth line position adjustment, real time reading of depth values
Water sound speed correction: 1500 m/s (default value), adjustable range : 1400-1600 m/s
Draught line correction: adjustable 0.1 unit at a time, adjustable range: 0.0-19.9
Water depth output statement: $XXDPT (for NMEA-0183)
Operating Temperature: -15
