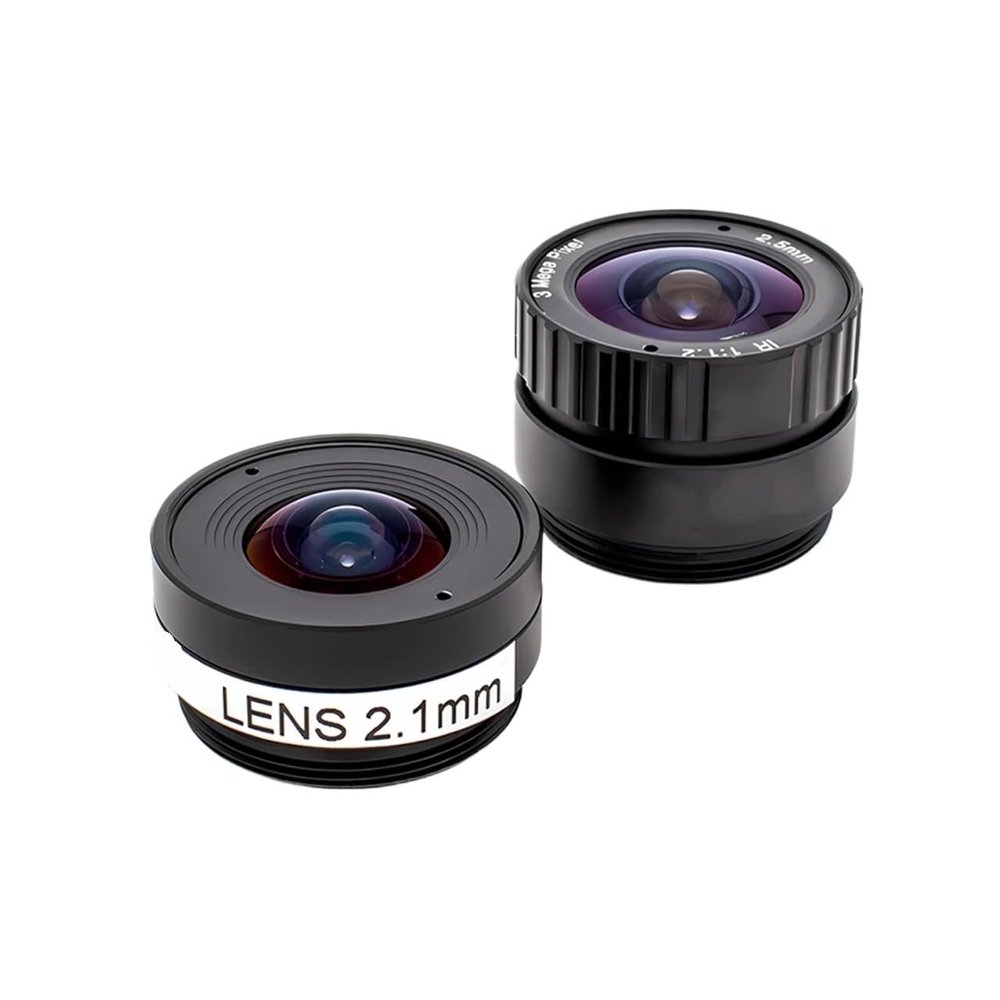

BQHHWTZ CS Mount Lens 2mm 2mm Fixed IRIS Lens IR 1 2 Metal Body for Camera

Description

• Ultra-Wide Field of View:2.1mm and 2.5mm CS mount lenses offer expansive 153 and 190 horizontal FOV, capturing more in every frame.
• High Resolution Imaging:With a 3MP resolution, these lenses deliver sharp, detailed images for clear monitoring and measurement.
• Versatile Light Conditions:F1.2 aperture (2.5mm) ensures bright images in low-light, while the wide temperature range (-40 to +60) suits diverse environments.

Package includes:
1PC CS Mount Lens(2.1mm or 2.5mm)
Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm
CS mount wide-angle lenses 2.1mm/2.5mm, the innovative choice for industrial vision and security monitoring!
stitching needs, such as drone aerial photography and internal inspection of miniature devices.
The F1.2 ultra-large aperture (2.5mm model) significantly increases light intake, ensuring bright images even in low-light or backlit environments, guaranteeing stress-free 24-hour monitoring.
Supports a wide operating temperature range of **-40 to +60**, unaffected by cold or heat, suitable for outdoor and harsh industrial environments.
Weighing only 32.5g (3-megapixel version) and compact in size (2820.7mm), it can be easily integrated into drones, handheld devices, and other mobile terminals.
The CS standard interface is compatible with mainstream industrial cameras, and with a 5mm adapter ring, it can seamlessly fit C-mount devices, solving compatibility issues.
CATEGORY
PARAMETERS
Model NO.
Image format
1/3"
Focal length
2.1mm
Resolution
3 Mega Pixel
Aperture
F1.6
Mount
CS
Field Angle(DxHxV)()
153.125.93
Back Focal Length
12.53mm
M.O.D.
0.1m
Dimension
28x15.10mm
Weight
24.5g
Operation
Manual
CATEGORY
PARAMETERS
Model NO.
Image format
1/2.7"
Focal length
2.5mm
Resolution
3 Mega Pixel
Aperture
F1.2
Mount
CS
Field Angle(DxHxV)()
115.109.90
Flange BFL
8.03mm
M.O.D.
0.2m
Dimension
28x22.50mm
Weight
32.6g
Operation
Fixed
Lens Type : Manual
Focal Length : 2.1mm
Focal Length : 2.1mm 2.5mm
Resolution : 3Mega Pixel
Mount : CS
