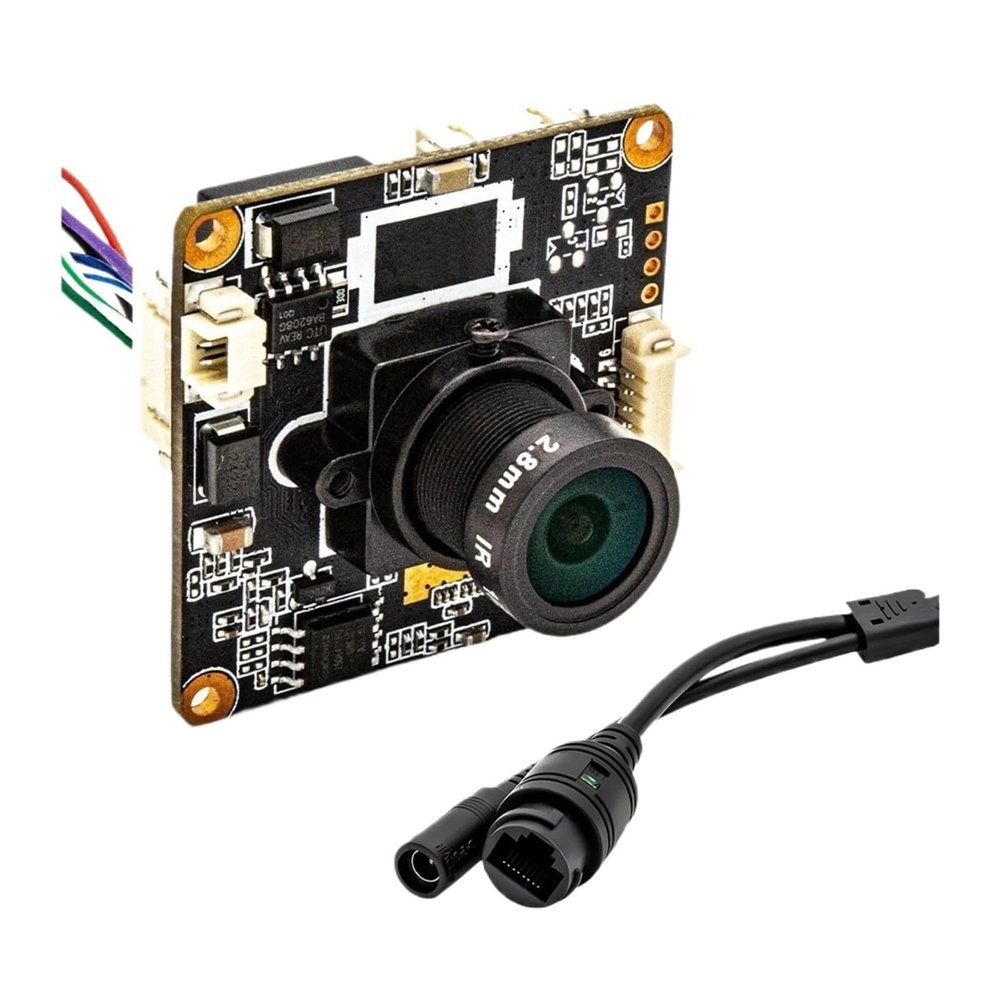

BQHHWTZ 2mm 108 Degree Wide Angle Lens IP Mini Camera Module 3MP 25FPS POE48V Webcam M12 Mount Lens Security Camera Board

Description

• Wide Angle Lens:Capture a broader view with the 2.8mm 108 Degree Wide Angle Lens, perfect for extensive surveillance coverage.
• POE48V Power Supply:Effortless installation with POE48V power, ensuring reliable power and data transmission over a single cable.
• Dual Light Source Function:Enhanced visibility with active warm light and active infrared functions for day and night surveillance.

Module.
MSTAR SSC335
Image Sensor
Minimum illumination
Color 0.01 Lux
Signal-to-Noise Ratio
50 dB
Video Processing
P/N video format optional, support automatic white balance, support 3D noise reduction, support wide dynamic, support anti-face overexposure, support defogging function,
H.264/H.265/H.265+ different encoding formats optional, achieve ultra-low storage, adjustable bit rate/frame rate, manual adjustment of shutter value
Image resolution
Main stream: 3MP@25fps, 1080P/720P/D1@30fps, Sub stream: D1/VGA/640*360/CIF@30fps
Support CBR/VBR
Audio Processing
Audio linear input and output, G711U/G711A encoding, support two-way voice intercom
Network Interface
Protocol support
Storage
Supports 128G maximum storage, requires an SD card backplane
Light board interface
Supports active mode and passive mode, and requires the corresponding light board to be used together
IRCUT Interface
Integrated IRCUT switching circuit, automatic/external control/manual/timing to control IRCUT day and night mode
IE6.0 and above (device embedded Web Server) browser browsing
Motion detection and OSD customization
JPEG capture
P2P cloud service (danale)
IP filtering
Business Functions
Active infrared function
Active warm light function
Dual light source function
License plate
Automatic zoom
PTZ linkage
Support alarm sound linkage and the sound can be customized
General parameters
DC12V/POE, 1.2W Max, 38(L) * 38(W) *15(H)mm (without lens), 0.06kg
Operating temperature
-30~85
Zoom type : None
Zoom : None
Lens Quantity : Single lens
AI Functions : Motion Detection
Operating Temperature : -10-60
App name : other
Scene : Indoor
Megapixels : 3MP
Power Supply : With POE
Internal Storage : None
Installation : Embedded
Color : black
is_customized : Yes
Audio Output : None
Video Compression Format : H.265
Dimensions (L x W x D)(mm) : 38x38mm
Alarm Action : FTP Photo,telefon Alarm,Email Photo
Sensor : CMOS
Supported Operating Systems : Windows 98,Windows XP,Windows vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Lens (mm) : 2.8mm
Connectivity : IP/Network Wired
High Definition : 3.0 Megapixels
Style : Mini Camera
Smart home platform : other
