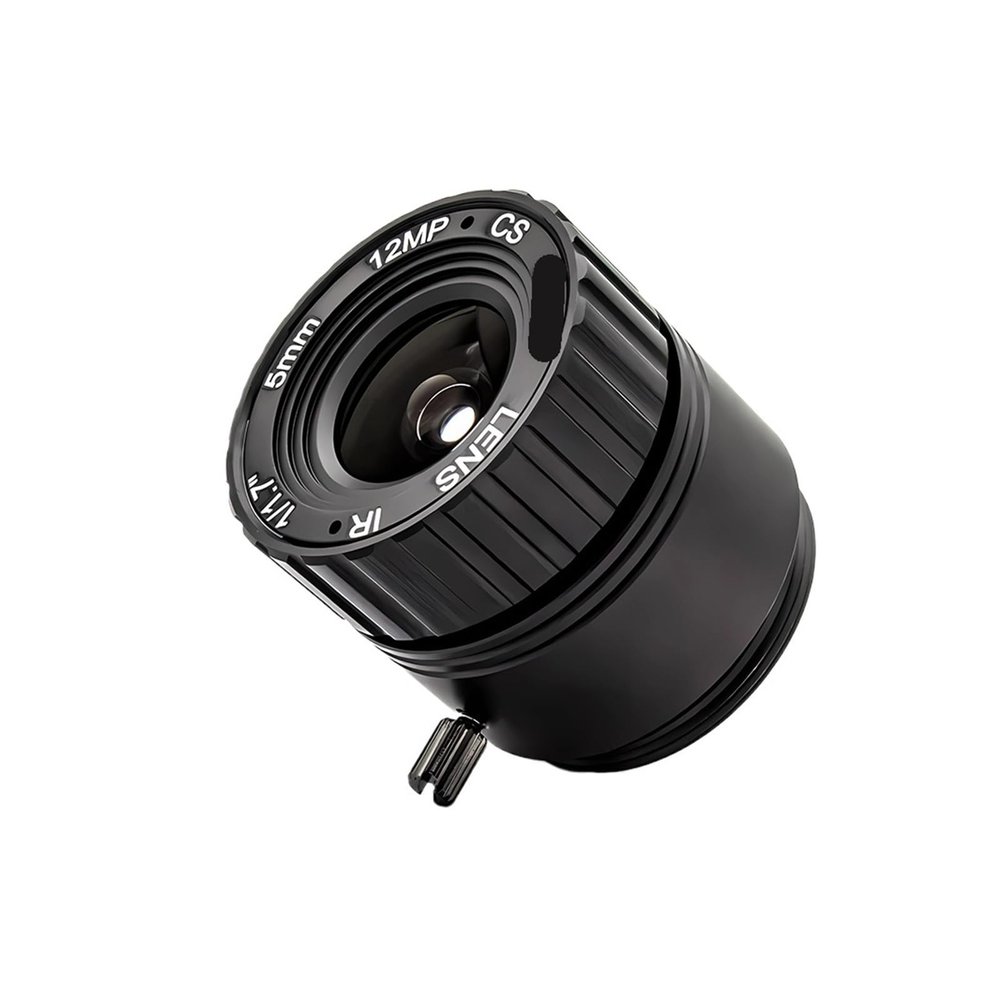

BQHHWTZ 12MP 5 8mm Lens Fixed CS Lens 1 Inch Aperture for IP Box Camera Surveillance F2F1 Image Format Security Webcam

Description

• BQHHWTZ 12MP 5 8mm Lens Fixed CS Lens 1 Inch Aperture for IP Box Camera Surveillance F2F1 Image Format Security Webcam

1PC CS Mount Lens
Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm
12MP high resolution, 1/1.7" large target surface design, 30% improvement in image clarity, accurately capturing fine details, suitable for high-precision scenarios such as security monitoring and intelligent transportation.
F1.8 super large aperture design significantly enhances light intake, maintaining low noise and high contrast images even in low-light conditions, meeting round-the-clock monitoring needs.
Aperture D/F'
F2.0
Focal-Length (mm)
5.0mm
Image circle
1/1.7"(8.7mm)
MTF
12Mega Pixel
Mount
CS
F.O.V(DxHxV)
1/1.8"
1/2.5"
1/3"
D 114.4
87
70.9
H 87
68.6
55.5
V 61.8
49.7
41.2
TV Distortion
-43.70%
M.O.D(M)
0.2
Flange Bake Focal-Length(mm)
12.53mm
BFL
6.39mm
MBF
6.05mm
IR Correction
Yes
Dimension(mm)
28*31.3
Weight(g)
40.9
Operation
Zoom:
Fixed
Manual
Lris:
Fixed
Operating Temerature
-20~+80
HSF&Safety
ROHS
Aperture DF'
F1.8
Focal-Length (mm)
8.0mm
Image circle
1/1.7"(8.7mm)
MTF
12Mega Pixel
Mount
CS
F.O.V(DxHxV)
1/1.8"
1/2.5"
1/3"
D 69.5
50.7
43
H 55.6
44.4
34.7
V 40.3
32.6
26.4
TV Distortion
-15.68%
M.O.D(M)
0.2
Flange Bake Focal-Length(mm)
12.526mm
BFL
10.02mm
MBF
8.0mm
IR Correction
Yes
Dimension(mm)
28*32.1
Weight(g)
41.3
Operation
Zoom:
Fixed
Manual
Lris:
Fixed
Operating Temerature
-20~+80
HSF&Safety
ROHS
Applicable Camera Specifications : Other mirrorless camera
Package : Yes
Weight : 100g and below
Lens Stabilization Type : None
Maximum Aperture : f/2.0
Number of Diaphragm Blades : 0
Full Frame : Yes
Lens Type : Manual
Scene Type : Wedding,Business,HUMAN,Sports,Insect,Architecture,Special,Scenery,Still Life,Travel,People,Macro,Indoor
Use : Camera
Aperture D/F' : F2.0 F1.8
Focal-Length (mm) : 5/8mm
Image circle : 1/1.7"
MTF : 12Mega Pixel
Mount : CS
TV Distortion : -43.7%/-15.68%
M.O.D(M) : 0.2
Flange Bake Focal-Length(mm) : 12.53mm/12.526mm
BFL : 6.39mm/10.02mm
MBF : 6.05mm/8.0mm
IR Correction : Yes
Dimension(mm) : 28
Weight(g) : 41
Operating Temerature : -20~+80
HSF&Safety : ROHS
