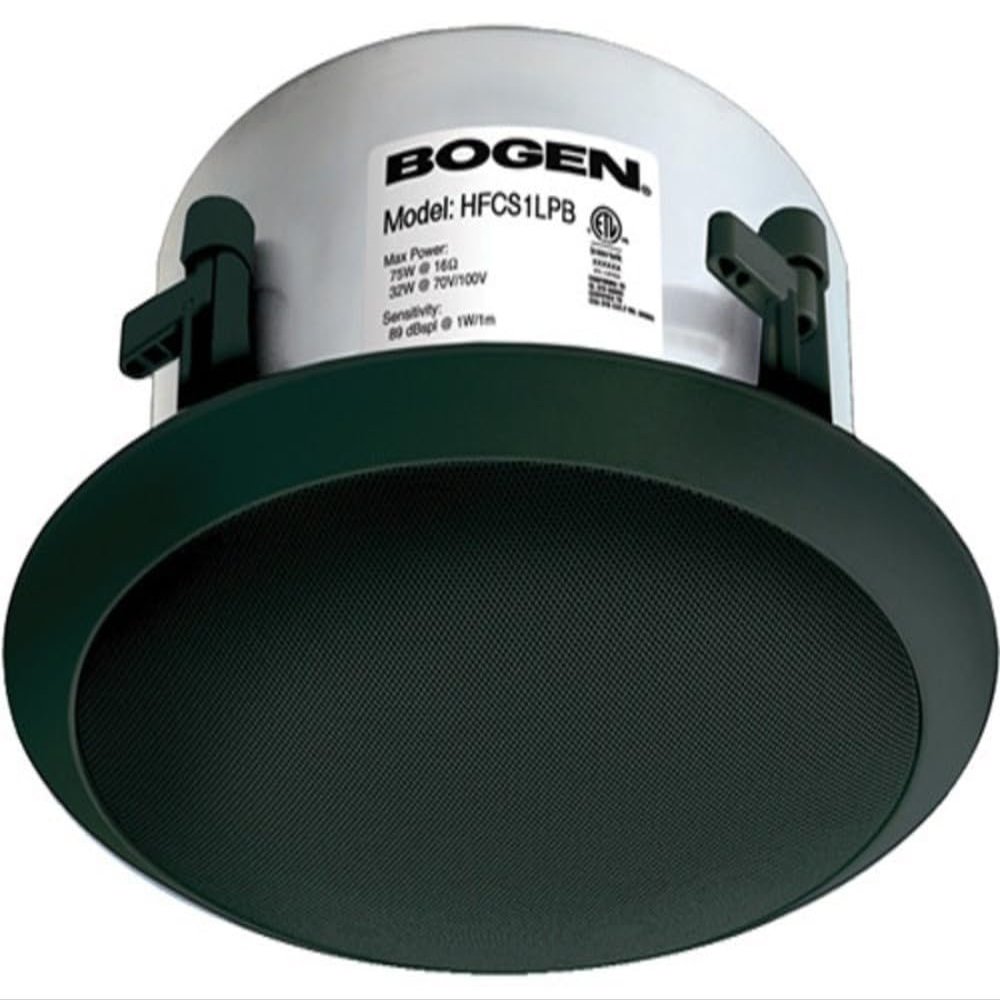

Bogen HFCS1LPB High Fidelity, Low Profile Ceiling Speaker, Black; Selectable Power Taps Via Front-Mounted Control; 16-Ohm Input for Non-Transformer, Multi-Speaker Systems; Integral Swing-Out Clamps

Description

• Wide-dispersion coaxial driver for broad, even coverage
• Computer-matched venting system for full bass output
• Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance
• High power handling capability for foreground sound
• Connector provides loop-through terminals for the next speaker

Bogen HFCS1LPB High Fidelity, Low Profile Ceiling Speaker, Black; Selectable Power Taps Via Front-mounted Control; 16-Ohm Input for Non-transformer, Multi-speaker Systems; Integral Swing-out Clamps

KEY FEATURES
- Wide-dispersion coaxial driver for broad, even coverage
- Good off-axis response with smooth contouring
- Computer-matched venting system for full bass output
- Low-profile housing for greater range of installation depths
- High power handling capability for foreground sound
- Selectable power taps via front-mounted control
- 16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
- Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance
- Easy wiring with plug-in connector
- Integral swing-out clamps for easy installation
- Connector provides loop-through terminals for the next speaker
- Attachment point for seismic cable (safety cable)
- Input terminal cover with knockouts and safety eyelet provides protection for connections
- Off-white textured finish easily painted to match theme decor
- Attractive, contemporary, sturdy steel grille assembly with fine perforations
- Listed to UL Standard 60065 for US and Canada
- Independently tested and meets requirements of UL-2043

SPECIFICATIONS
- Frequency Response (-10 dB): 78Hz to 19kHz
- LF Driver: 6-1/2" (165mm) Polypropylene Cone
- HF Driver: 3/4" (20mm) Polycarbonate Dome
- Sensitivity (1W/1m): 89dB spl (Average 100Hz - 10kHz)
- Impedance Ratings: Low (16 ohms) / High (70V/100V)
- Power Input (Max.): 75W @ 16 ohms; 32W @ 70V/100V
- Power Settings (in watts): 70V: 32, 16, 8, 4, 2, 1 / 100V: 32, 16, 8, 4, 2
- Baffle Material: Fire-rated (94VO) ABS
- Back Can Material: Heavy-Gauge Steel
- Terminations: 4 Terminal Plug-in Input Connector
- Dimensions: 12-5/16" dia. x 7-3/4"D
- Weight: 8 lb
