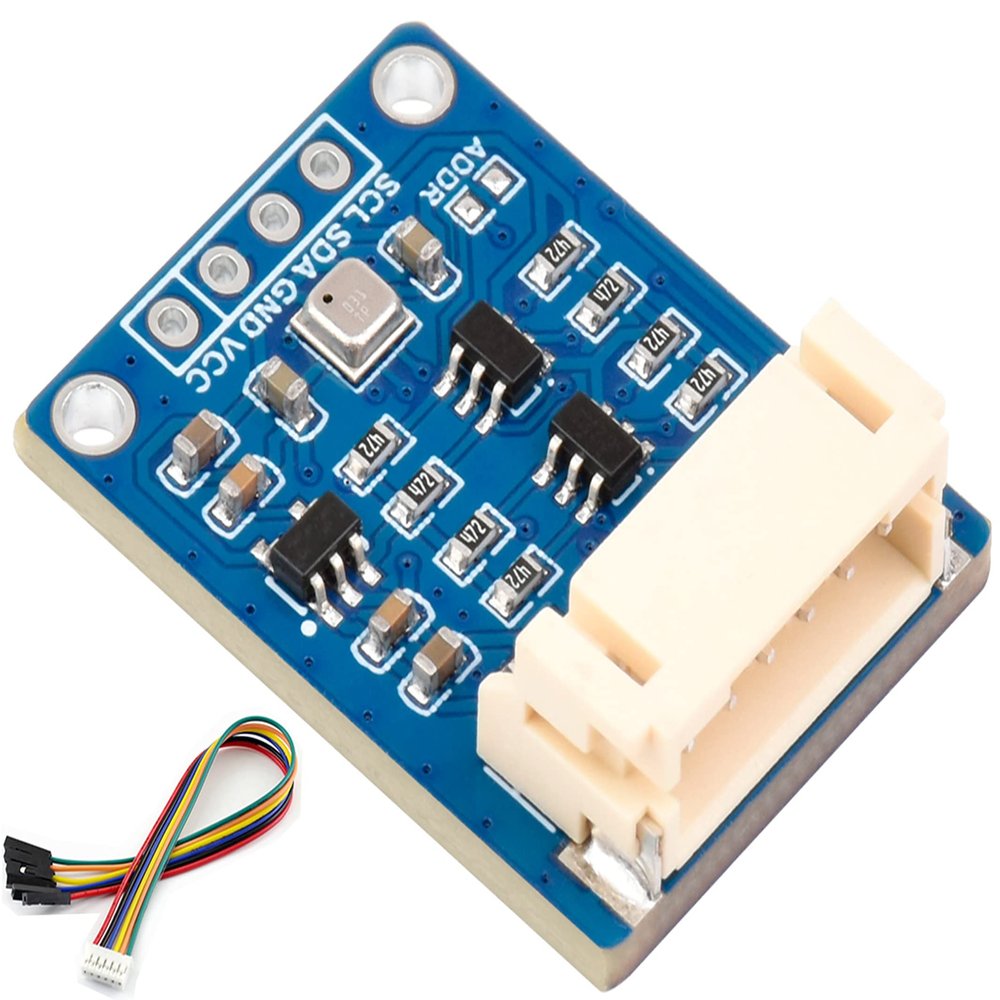

BME688 Environmental Sensor with AI Function, Supports Temperature/Humidity/Barometric Pressure/Gas Detection, I2C and SPI, Support Raspberry Pi/Raspberry Pi Pico/Arduino / ESP32,etc.

Description

• BME688 Environmental Sensor with AI function, measure Barometric pressure, Environmental temperature, Relative humidity, VOC and VSC gas change detection (supports IAQ calculation in combination with the software package, and integrated AI function)
• Supports I2C communication, I2C address configurable, with I2C bus cascading support
• Supports SPI communication, enabled via CS pin (I2C bus by default)
• Onboard voltage translator, compatible with 3.3V/5V level
• Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Overview
BME688 Environmental Sensor with AI Function, measure Barometric pressure, Environmental temperature, Relative humidity, VOC and VSC gas change detection (supports IAQ calculation in combination with the software package, and integrated AI function).
The BME688 is 4-in-1 environmental sensor that combine barometric pressure, ambient temperature, relative humidity, and gas measurement in one small package. They can detect a wide range of gases, including volatile organic compounds (VOCs), and are used for air quality monitoring in smart homes, aiming to improve people's health.

Features
Onboard BME688 sensor to measure temperature, humidity, barometric pressure, and gas
Supports I2C communication, I2C address configurable, with I2C bus cascading support
Supports SPI communication, enabled via CS pin (I2C bus by default)
Onboard voltage translator, compatible with 3.3V/5V level
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specification
Communication interfaces : I2C and SPI
Dimensions : 27 20mm

Temperature sensing
Temperature sensing : range -40~85C
accuracy : 0.5 (0~65)

Humidity sensing
range : 0~100%RH
accuracy : 3%RH

Barometric pressure sensing
range : 300~1100 hPa
accuracy :0.6hPa (0~65)

Gas sensing: supports VOC and VSC gas change detection

Online Development Resources /User Manuall://bit.ly/3FDldKK

PACKAGE CONTENT
BME688 Environmental Sensor x1
PH2.0 6PIN cable (~20cm) x1
