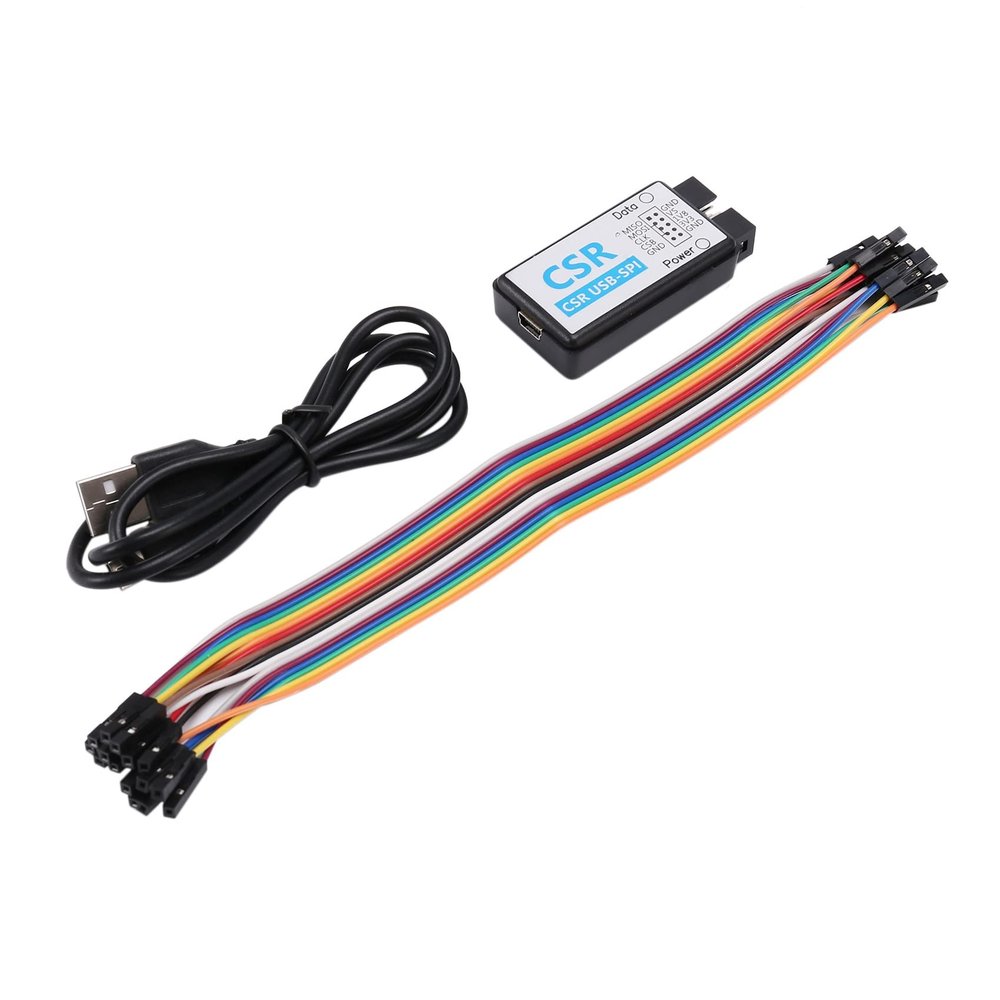

Beuiouer CSR USB-SPI-S Bluetooth Burner Download Programmer Debugging Developments Tools 1.8V 3.3V New DIY, 500279100

Description

• 1. Provide 3.3V and 1.8V dual power output, easy to use!
• 3. Increase PTC current limiting protection, current limit 500MA, but then worry about the wrong connection, short circuit is not afraid (voltage switch version proprietary)!
• 2. Increase SPI level switching function, support 3.3V and 1.8V (voltage switch version proprietary)!
• 4. The power supply process is cleaner, capacitors are used for decoupling, and two 220UF capacitors are built in (voltage-switched version is proprietary)!

Beuiouer Note: Regarding the SPI voltage specification, we all know that the IO port voltage of the CSR86XX series is 1.8V, so the SPI programming voltage also needs 1.8V. Of course, using 3.3V can also work, but if you use the SPI level of 3.3V, probably Will cause 5/1000 chip damage Pin description: 1. , CLK, CSB, and CLK are SPI writer interfaces. They are connected to the SPI interface of the CSR Bluetooth chip. The default SPI level is 1.8V! (Voltage Switching Edition Exclusive) 2. 3V3, 1V8 are reserved power output, can provide current less than 500MA (more than 500MA will automatically protect)! (Voltage Switching Edition Exclusive) 3. VS is the SPI voltage selection port. When VS is floating (with internal pull-up), the SPI level is 1.8V. When VS is grounded, the SPI level is 3.3V! (Voltage Switching Edition Exclusive) 4. is the reset pin of the writer and the high signal resets the writer. (Normal Edition proprietary) Condition: New Type: Voltage Regulator Model Number: CSR USB-SPI-S color:As shown Material:plastic Package Contents: 1 x CSR USB-SPI-S Bluetooth Burner Download Programmer Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
