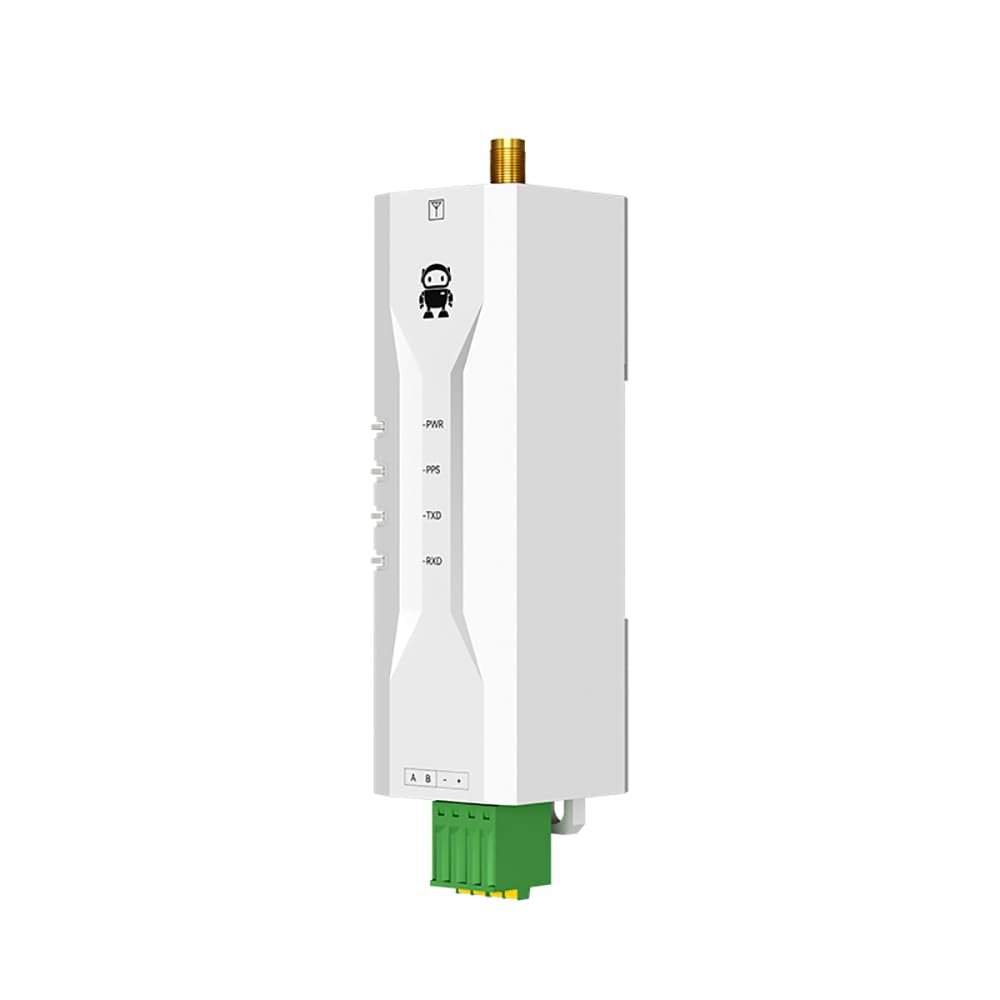

BDS GPS GLONASS Galileo QZSS SBAS Positioning Modem CDSENET EWD108-GN05 Modbus RTU DC5-24V UTC Industrial Standard (RS485)

Description

• EWD108-GN05 supports satellite systems: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS;
• Configurable with multiple serial port baud rates (1200-115200bps); Supports standard Modbus RTU protocol to read positioning information;Multiple output formats for positioning information;
• Output antenna positioning status through registers and indicators; Support active antenna and passive antenna switching; Serial port supports TVS and over-current protection;Supports wide voltage input DC5~24V;
• EWD108-GN05 series positioning accuracy up to 1.0 m (CEP50); Supports DIN-rail and positioning hole mounting; Industrial-grade design, supporting operating temperature up to -4085;
• Application Scenarios - In-vehicle positioning and navigation equipment;Industry equipment with a need for GNSS positioning or navigation; Asset tracking, etc;

EWD108-GN05 Support Satellite System: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS
The device outputs positioning information via Modbus RTU protocol and supports the output of NMEA0183 compliant
RMC-ASCII strings and separate registers for separate storage (longitude, longitude direction, latitude, latitude direction, etc.).
The serial port baud rate can be up to 115200bps, which can be easily modified through Modbus RTU protocol, convenient and fast.
