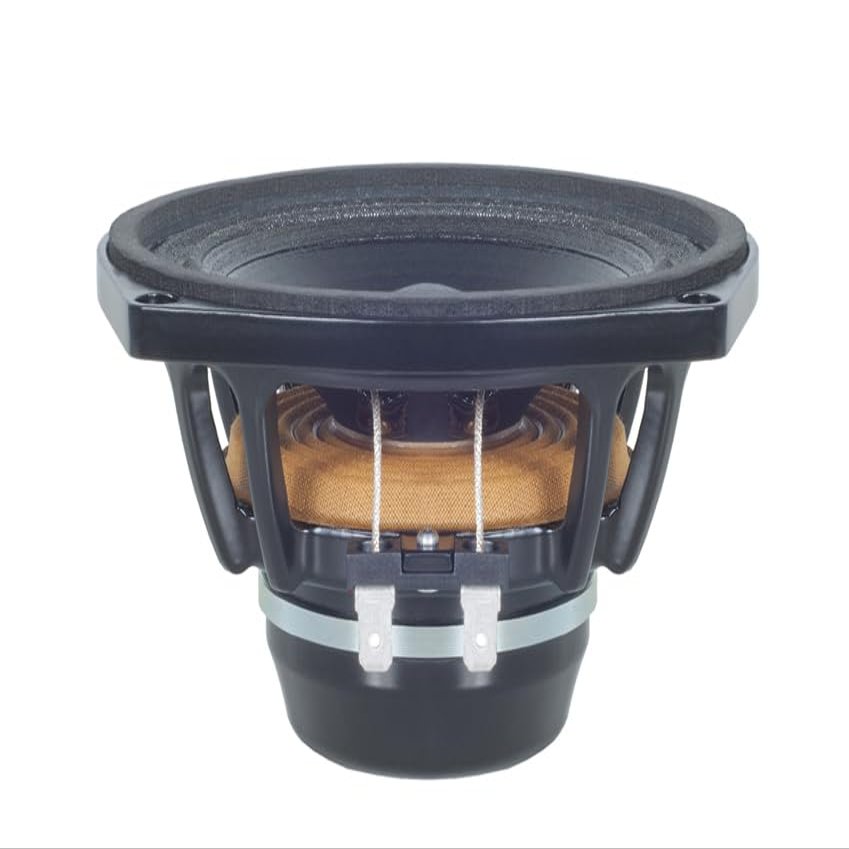

B&C Speakers 5MDN38 5-inch Mid Bass Midrange LF Drivers Woofer Cone WP Waterproof Front Side 1.5 in Aluminium Voice Coil 90 Wrms 180 Watts Peak 8 Ohm

Description

• FEATURES : This speaker is optimized for mid-to-high frequency clarity, delivering 180W of continuous power through a 38 mm aluminum voice coil. With a wide 175 Hz to 10,000 Hz range and 97 dB sensitivity, it ensures dynamic sound output. A shorting copper cap improves high-frequency performance by minimizing distortion, making it ideal for precise and articulate audio reproduction.
• SPECIFICATIONS : This 5-inch speaker driver delivers efficient mid-to-high frequency performance with 180W power handling, 97 dB sensitivity, and an 8-ohm impedance. It features a 1.5-inch aluminum voice coil on a glass fibre former, supported by a 0.24-inch magnetic gap and 1.25 T flux density for accurate control. A waterproof-treated cone enhances durability, making it ideal for rugged audio setups.
• PARAMETERS : This speaker driver delivers precise midrange performance with a 175 Hz resonant frequency and a 95 cm piston area. Its 3.5 mm Xmax and 4 mm Xvar allow for controlled excursion, while the lightweight 8 g moving mass and 11.1 Tm BL factor ensure strong motor force. With a Qts of 0.31 and an EBP of 486 Hz, it's ideal for vented enclosures. Its 2% efficiency, 5.5-ohm resistance, and 0.4 mH inductance support accurate and responsive electrical behavior.
• DESIGN : This speaker features a Triple Roll surround and Exponential cone shape for enhanced excursion and sound dispersion. It uses a Neodymium ring magnet with a Straight Pole design for efficient magnetic control. A Single spider supports cone stability, while the front-side waterproof treatment adds durability for use in challenging environments.
• MOUNTING AND SHIPPING INFO : This compact speaker driver measures 6.1 inches in overall diameter with a 4.8-inch baffle cutout and a 5.6-inch bolt circle, making it suitable for tight mounting spaces. It has a depth of 2.95 inches and occupies 0.35 dm (0.01 ft) of internal air volume. Weighing 2.07 lbs, it ships in a 8.27 8.27 4.92-inch box with a total shipping weight of 2.51 lbs, and features a 0.35-inch flange and gasket thickness for secure installation.

The B&C Speakers 5MDN38 is a compact yet powerful 5-inch mid-bass/midrange driver engineered for precision and clarity in professional audio systems. Designed to handle 180 watts peak power and 90 watts RMS, it features a 1.5-inch aluminum voice coil that ensures efficient signal transmission and thermal stability. Operating across a broad 175 Hz to 10,000 Hz frequency range with a 97 dB sensitivity, this driver delivers articulate and dynamic sound reproduction, making it ideal for vocal and instrumental clarity in multi-way speaker setups. Its internal architecture includes a glass fibre former, a 0.24-inch magnetic gap, and a flux density of 1.25 T, all contributing to accurate magnetic control and reduced distortion. The shorting copper cap further enhances high-frequency response, ensuring smooth and extended output. With a Triple Roll surround and Exponential cone shape, the 5MDN38 supports controlled excursion through its 3.5 mm Xmax and 4 mm Xvar, while the 8 g moving mass and BL factor of 11.1 Tm provide strong motor force and fast transient response. Built for durability, the woofer cone is treated with WP waterproofing on the front side, making it resilient in challenging environments. The Neodymium ring magnet and Straight Pole design offer compact yet powerful magnetic performance, and the Single spider ensures stable cone movement. Its Qts of 0.31 and EBP of 486 Hz make it well-suited for vented enclosure designs, while the 2% efficiency, 5.5-ohm resistance, and 0.4 mH inductance support responsive electrical behavior. In terms of installation, the 5MDN38 is designed for space-conscious applications. It has a 6.1-inch overall diameter, 4.8-inch baffle cutout, and 5.6-inch bolt circle, with a depth of 2.95 inches and an air volume displacement of just 0.35 dm (0.01 ft). Weighing 2.07 lbs, it ships securely in a compact 8.27 8.27 4.92-inch box, with a total shipping weight of 2.51 lbs. The 0.35-inch flange and gasket thickness ensure a tight, vibration-free seal during mounting. Overall, the 5MDN38 is a versatile, high-performance driver built for precision, durability, and ease of integration into professional audio systems.
