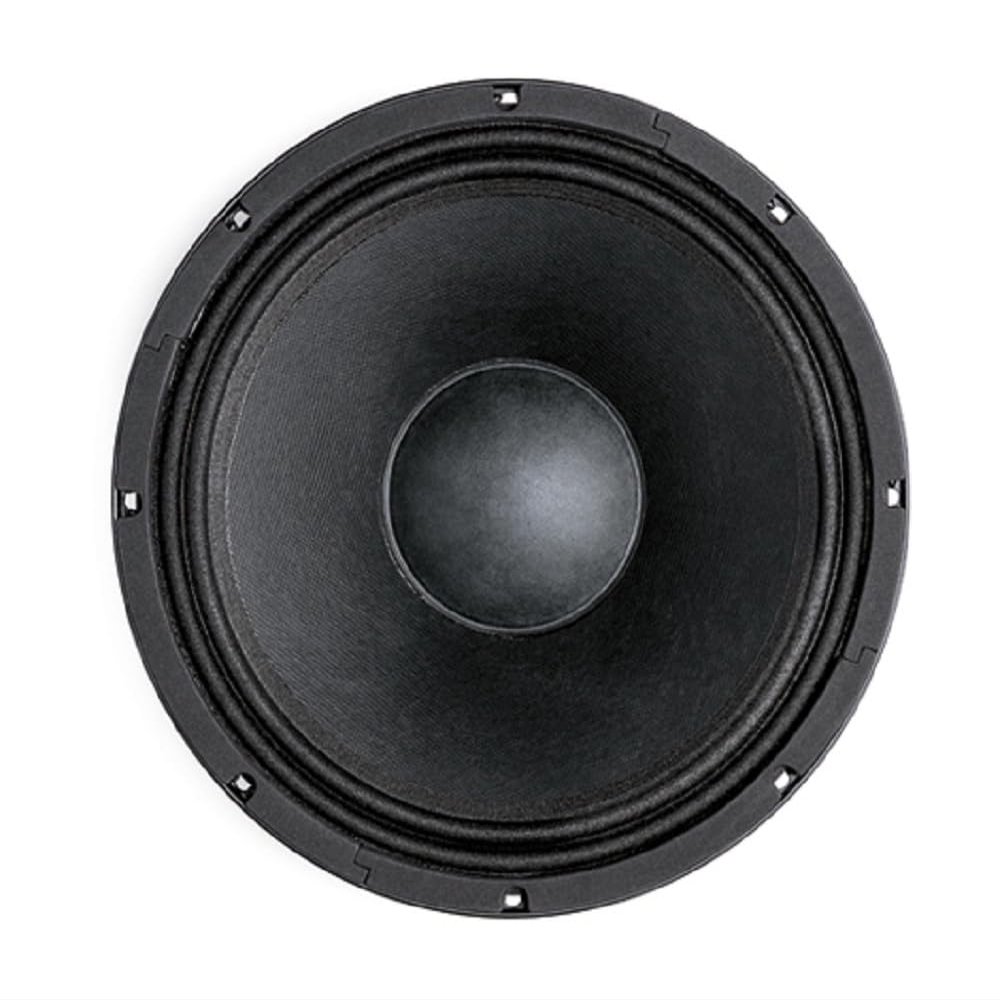

B&C Speakers 12HPL76 12-inch Neo Mid Bass Woofer Audio Speaker 350 Wrms 700 Watts Peak 3-in. Ventilated Aluminium Voice Coil Gap 8 Ohm Black

Description

• FEATURES : The B&C Speakers 12HPL76 is a lightweight yet powerful 12-inch mid-bass woofer built for professional audio setups. With a 700 W program power rating, a 3-inch aluminum voice coil, and a neodymium magnet, it delivers high sensitivity (99 dB) and a broad frequency range from 50 to 3500 Hz. Its ventilated coil gap helps reduce power compression, ensuring consistent performance even under heavy use.
• SPECIFICATIONS : The B&C Speakers 12HPL76 is a powerful 12-inch mid-bass woofer with an 8-ohm impedance, capable of handling up to 700 watts of continuous power. It offers a wide frequency range from 50 Hz to 3500 Hz and delivers high sensitivity at 99 dB. Built with a 3-inch aluminum voice coil on a glass fibre former and a 10 mm magnetic gap, it ensures efficient and dynamic audio performance supported by a strong 1.15 T flux density.
• PARAMETERS : The B&C Speakers 12HPL76 is a precision-engineered 12-inch woofer optimized for low-frequency clarity and control. It features a 49 Hz resonance, 522 cm piston area, and 91 dm compliance, delivering responsive output with a 43 g moving mass. Its low Q values, 6-ohm resistance, and 1.5 mH inductance support dynamic performance, while a strong motor (Bl 17.3 Tm) and controlled excursion ensure clean movement. With an EBP of 188 Hz, its ideal for vented enclosure designs.
• DESIGN : The B&C Speakers 12HPL76 features a double roll surround and an exponential cone shape, supported by a single spider for controlled movement. Its motor structure includes a neodymium inside slug magnet and a straight pole design, contributing to a lightweight yet powerful assembly. The woofer cone has no additional treatment, maintaining natural response characteristics. For optimal performance, it is recommended to use a 40 dm (1.41 ft) enclosure tuned to 70 Hz.
• MOUNTING AND SHIPPING INFO : B&C Speakers 12HPL76 has a compact and efficient design with an overall diameter of 12.4 inches and a baffle cutout diameter of 11.1 inches. It features a flange and gasket thickness of 0.5 inches and a bolt circle diameter of 11.6 inches, with a depth of 5.7 inches. The speaker ships in a box measuring 14.17 14.17 7.87 inches, with a net weight of 6.94 pounds and a shipping weight of 8.93 pounds, making it easy to handle and install in various audio setups.

The B&C Speakers 12HPL76 is a high-performance 12-inch neodymium mid-bass woofer designed for professional audio systems. Engineered for both power and precision, it boasts a 700-watt peak power capacity and a 3-inch ventilated aluminum voice coil that minimizes power compression during extended use. With an 8-ohm impedance and 99 dB sensitivity, it delivers a wide frequency response from 50 Hz to 3500 Hz, ensuring dynamic and efficient sound reproduction. Internally, the woofer features a glass fibre former, a 10 mm magnetic gap, and a flux density of 1.15 T, all contributing to its robust motor structure. Its acoustic parameters include a 49 Hz resonance frequency, 522 cm piston area, and 91 dm compliance, with a moving mass of 43 g and a Bl factor of 17.3 Tmideal for vented enclosures tuned to 70 Hz. The design incorporates a double roll surround, exponential cone shape, and single spider for controlled movement, while the neodymium inside slug magnet and straight pole structure keep the assembly lightweight yet powerful. For installation, the speaker has a 12.4-inch overall diameter, 11.1-inch baffle cutout, and 5.7-inch depth, shipping in a compact box measuring 14.17 14.17 7.87 inches with a total weight of 8.93 pounds.
