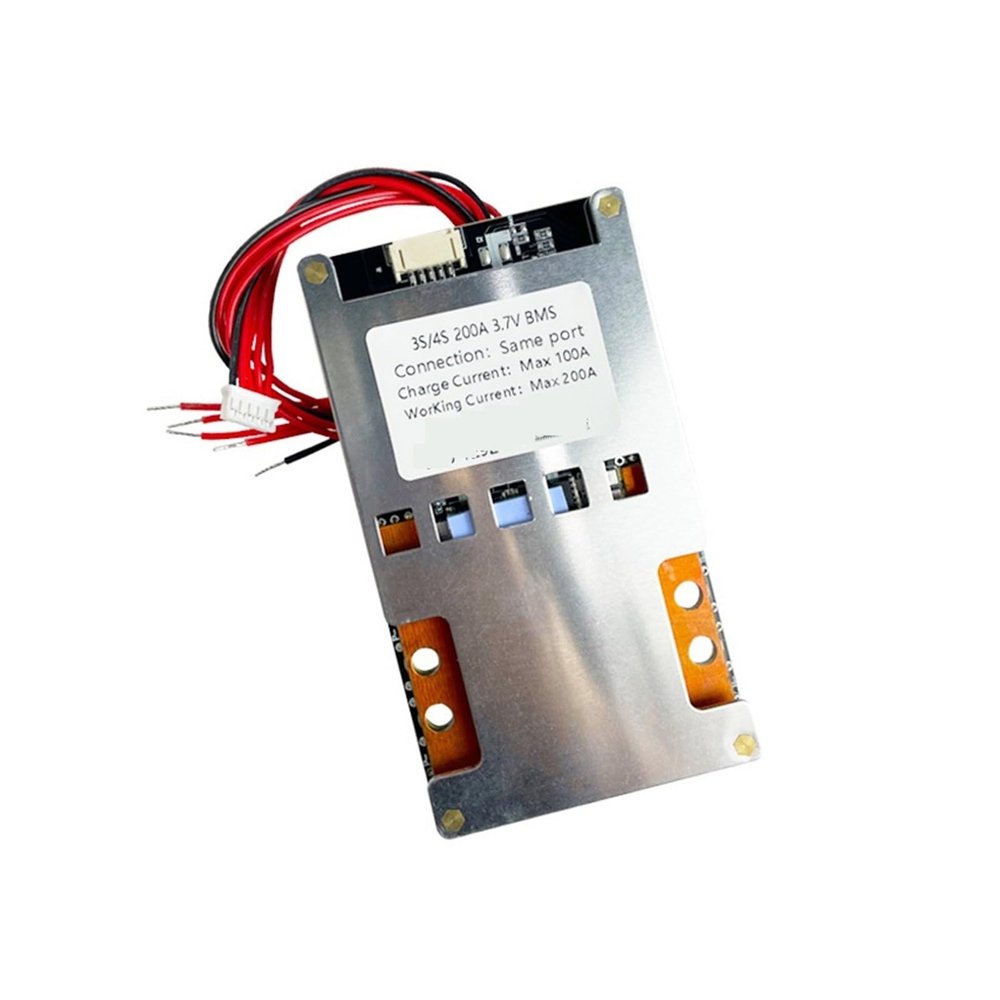

battery equaliser BMS 3S4S Balance 100A 120A 160A 200A 300A 380 12.6V/16.8V 18650 Battery Protection Board Lipo/LiFePo4 TFT Volt collection Dispay (Color : 3S 200A 3.7V Same)

Description

• Battery energy transfer: a practical and multi-functional battery equalizer can be used for battery overshoot and over discharge protection.
• Battery voltage balancer: it is used for the batteries which are connected in series to keep the voltage of batteries are equal.
• Battery balancer: the equalizer starts to work when there are between two batteries.
• Durable battery equalizer: widely applied in -acid battery, nickel- or nickel- battery, etc.
• Voltage balance: using this shell is strong and durable for long-serving life.

3-4S 5A Active balancer Group Balance
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate,
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
TFT Voltage collection Display
TFT Voltage collection Display
This display is used to collect battery volatage 1-4S
The accuracy of a single string is 0.001V, and the total voltage is 0.01V
Display can be flipped up and down through switches
3S 4S 100A 3.7V Split Port
Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etc
Serial port: 3s 4s/ split port
Size: 83558
Overcharge protection voltage: 4.28V
Over-discharge protection voltage: 2.5V
Abnormal high voltage protection: yes
Temperature protection: yes(if you need twmperature control swith need to contatc us to add)
Maximal continuous current: 100A
Discharge over-current protection: 550A
Balanced current:100mA
Load short circuit protection: protection, disconnect the load and self-recovery.
Applicable scope: Suitable for load battery less than 1000W.
3S 4S 120A 3.7V Same Port
Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etc
Serial port: 3s 4s/ Same port
Size: 725514
Overcharge protection voltage: 4.28V
Over-discharge protection voltage: 2.9V
Abnormal high voltage protectio
