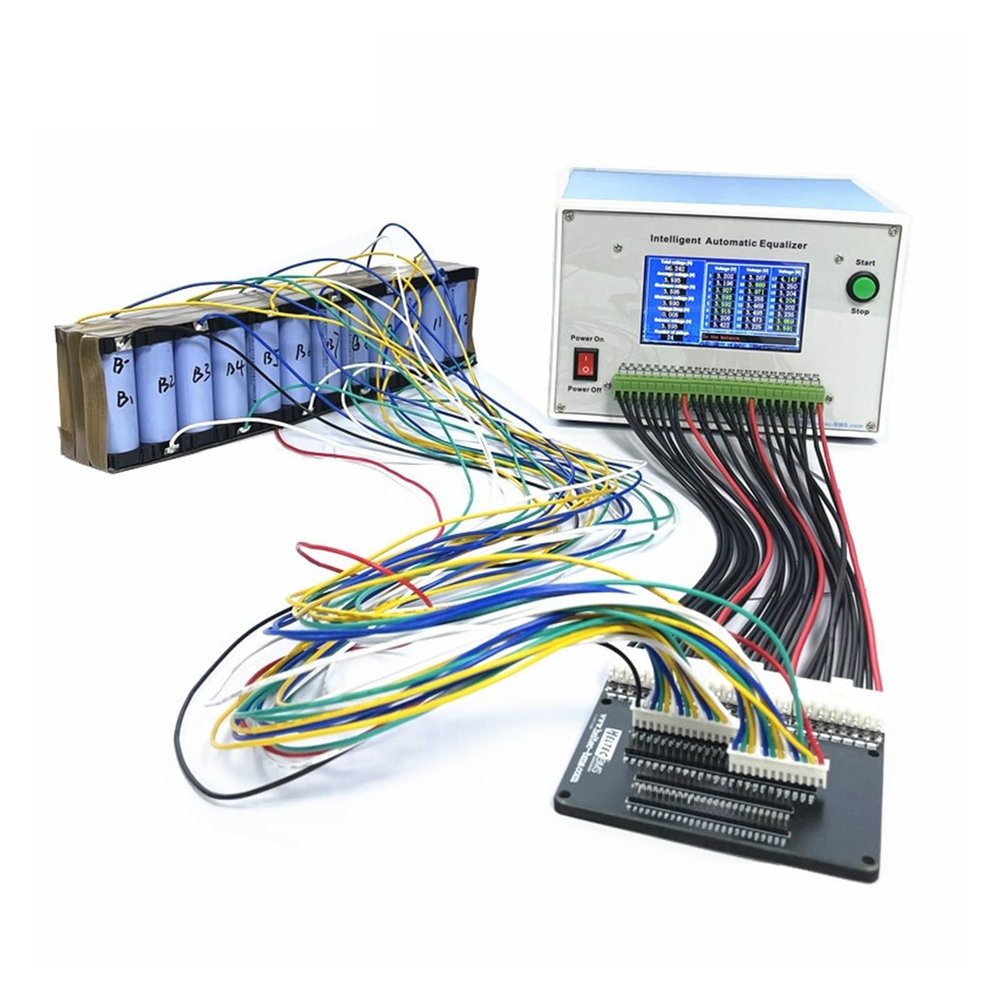

battery equaliser 2~24S 3A 4A Intelligent Automatic Equalizer/Discharge Balancer for Lipo/Lifepo4/LTO 1.5-4.5V batterr balancer maintenance/Repair

Description

• Battery energy transfer: a practical and multi-functional battery equalizer can be used for battery overshoot and over discharge protection.
• Battery voltage balancer: it is used for the batteries which are connected in series to keep the voltage of batteries are equal.
• Battery balancer: the equalizer starts to work when there are between two batteries.
• Durable battery equalizer: widely applied in -acid battery, nickel- or nickel- battery, etc.
• Voltage balance: using this shell is strong and durable for long-serving life.

Summary
This equalizer directly displays the sum and voltage difference of each string
Solves the problem of battery pack unbalance with one button
The equalizer starts the equalization with one button, and automatically stops after the equalization is completed, and warns
Our equalizer will not charge the batteries during the equalization process. So don't worry about the danger of overcharging the balance
Note:
Before balancing, please check whether the lowest voltage is lower than the battery's over-discharge voltage. If it is lower than the battery's over-discharge voltage, please charge the balance first, and the battery is fully charged and then balance, the effect will be better.
Feture
Support 2~24 series lithium battery pack, support ternary lithium, lithium iron phosphate, too cobalt lithium, support 1.5V~4.5V battery, the voltage is out of range, it will sound a warning and display
Reverse connection warning and reminder: after connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will automatically stop, and a warning sound will sound to indicate that the balance is complete.
Constant resistance 1 ohm discharge equalization
Large equalization current;
Ternary lithium 4A Max
Lifepo4 3A MAx
Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, balanced voltage, number of battery strings
Battery maintenance steps:
There is a bad battery cell:
1)replace the battery cell
2)fully charged
3)balancing
4)fully charged
5)battery maintenance completed
There is a bad battery cell:
1)replace the battery cell
2)fully charged
3)balancing
4)fully charged
5)battery maintenance completed
Discharge method:
Advantage:
1. Don't charge the batteries, don't worry about overcharging problems
