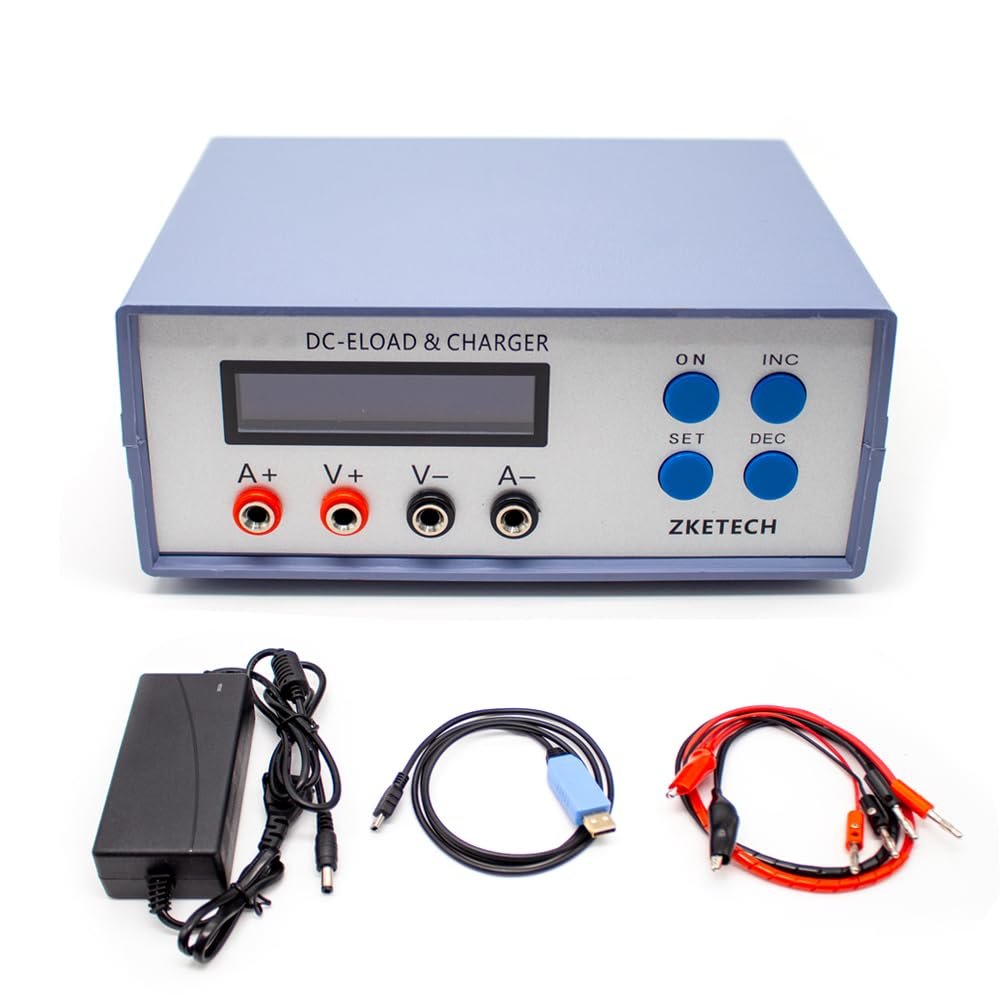

Battery Capacity Tester Portable Power Bank Tester Power Performance Electronic Load Tester Charger (EBC-A05+)

Description

• Battery Capacity Test;Portable Power Bank Test;Power Performance Test
• This tester is designed for charging and discharging of a wide range of batteries, including NiMH, NiCd, LiPo, LiFe and Pb, as well as the capacity test.
• This tester supports charging and discharging of portable power banks, as well as capacity test;This tester supports performance and aging tests of various kinds of DC power supplies.
• Meter function: the tester can be used to measure voltage and current (only supported by mode of A05+). A+/A- is current meter, and V+/V- is voltage meter.
• There are two main differences between A05 and A05+: Using an A05 tester the maximum current you can set in charging and discharging batteries is 0.08A, while A05+ allows 0.05A. Only A05 tester supports stable voltage output while A05+ supports Meter function.

Specifications: Power Supply: DC 12V/3.5A or above Voltage Range: 0-30.00V, stepper 0.01V (In charging the maximum voltage can be set 10V) Current Range in charging and discharging: 0.050-5.000A For charge, 0.050-3.000A, stepper 0.01A For discharge, 0.050-5.000A, stepper 0.01A (In discharging process current will adjust automatically when power exceeds limits.) Charging mode: Standard Charging: Support NiMH, NiCd, LiPo, LiFe and Pb batteries CHG-CV: Current and voltage can be set at a constant voltage (only for batteries) during discharging Discharging mode: DSC-CC: Discharging batteries at a constant current, support testing battery capacity or current of power supplies DSC-CP : Discharging batteries at a constant power, for constant power equipment-like use or testing power Meter function: the tester can be used to measure voltage and current (only supported by mode of A05+). A+/A- is current meter, and V+/V- is voltage meter. Automatic Charging/Discharging: The tester supports charging-discharging-charging circles for capacity tests. Voltage accuracy: between 0-4.5V, 0.003V, 0.5%, between 4.5-30V, 0.01V, 0.5%. Current accuracy: 0.01-5.000A, 0.005A, 0.5%. Capacity detection: 100Ah,0.1Ah Four lines: voltage and current channels separated for high test accuracy LCD Display: voltage, current, time, capacity, power, energy, and etc PC Connection: The tester can be connected to a computer through a designated USB-TTL cable to have more functions.
Package including: 1 x Battery Capacity Tester
