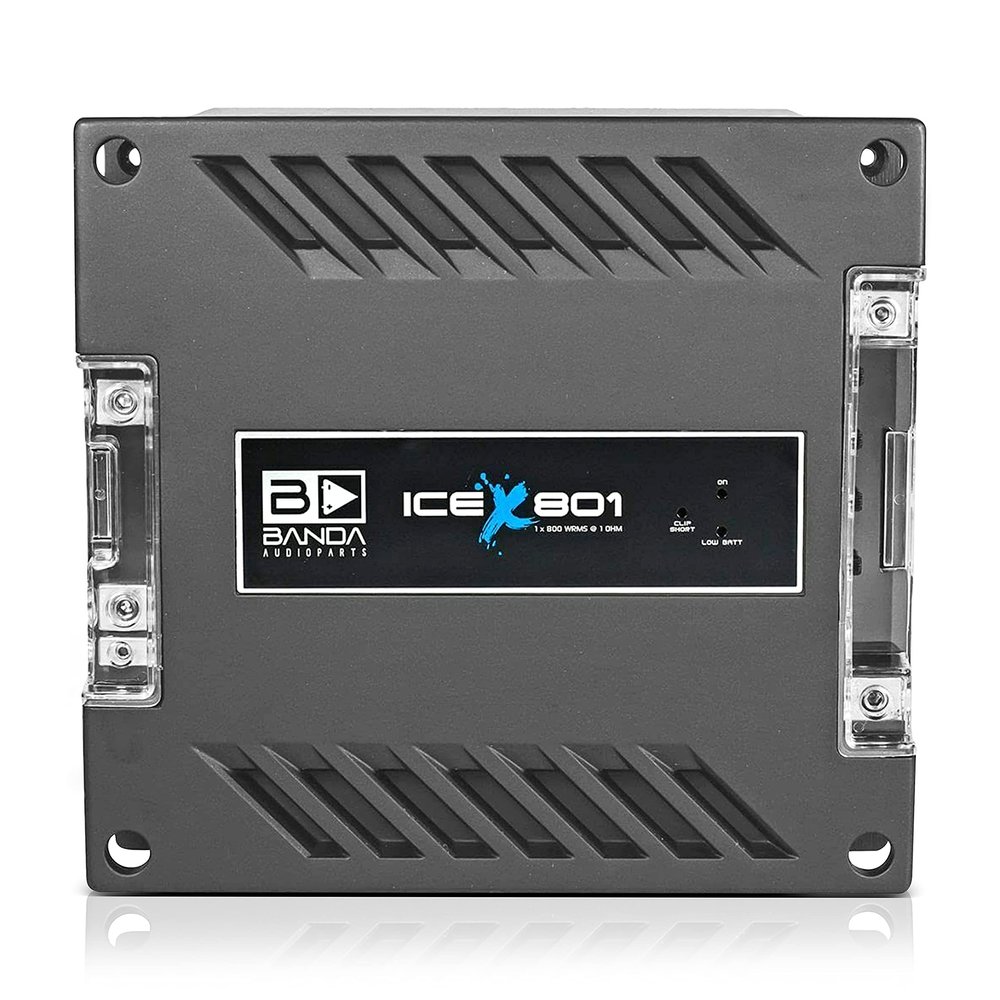

Banda 1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization - ICEX801

Description

• POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14.4 @ 1 Ohm: 1100 WRMS, Total Power 14.4 @ 2 Ohms: 700 WRMS, Total Power 12.6 @ 1 Ohm: 800 WRMS, Total Power 12.6 @ 2 Ohms: 550 WRMS, Efficiency @ 2 Ohms: 82%, Efficiency @ 1 Ohm: 70%
• MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
• POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 125mV to 4V, Signal to Noise Ratio: 86dB
• SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
• OTHER TECHNICAL SPECS: Recommended Fuse: 50A, Current at Rest: 1.0A, Ave. Current Draw (Sinusoidal): 94 A, Ave. Current Draw (Music): 45 A, Power Wire Gauge: 10mm/7 AWG, Speaker Wire Gauge: 2 x 2.5mm/2 x 13 AWG, Size: 9.7'' x 8.4'' x 2.2'' -inches

* Total Power 14.4 @ 1 Ohm 1100 WRMS * Total Power 14.4 @ 2 Ohms: 700 WRMS * Total Power 12.6 @ 1 Ohm: 800 WRMS * Total Power 12.6 @ 2 Ohms: 550 WRMS * Efficiency @ 2 Ohms: 82% * Efficiency @ 1 Ohm: 70% * Input Voltage: 9 to 15V * Input Impedance: 100K Ohms * THD+Noise: 0.1% * Input Sensitivity: 125mV to 4V * SNR: 86dB * Frequency Response (Key OFF): 5 to 22kHz (-3dBs) * Frequency Response: 20 to 20kHz (-3dBs) * Bass Boost @ 45Hz: Variable 0 to +18dBs * HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley * LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley * Recommended Fuse: 50 A * Current at Rest: 1.0 A * Average Current Draw (Sinusoidal): 94 A * Average Current Draw (Music): 45 A * Power Wire Gauge (min. Recommended): 10mm / 7 AWG * Speaker Wire Gauge (min. Recommended): 2 x 2.5mm / 2 x 13 AWG * Weight (Lb): 6.8 * Height (in): 2.2 * Width (in): 8.4 * Depth (in): 9.7
