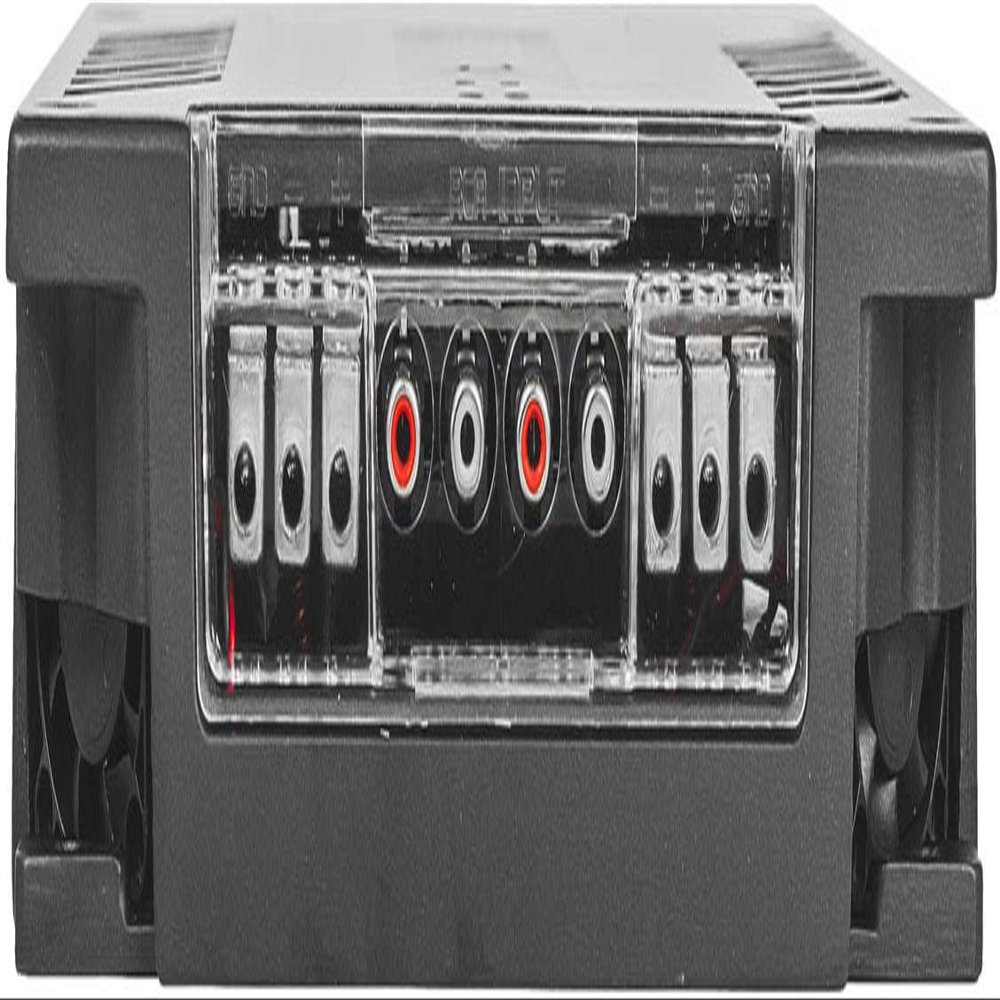

4-Channel Vehicle Audio Amplifier - 300 Watts D Class High-Powered Mono Amp w/Subsonic Filter & Low Pass Filter Stable @ 2 Ohms, LED Indicators, Sound Specialization - Banda 1200.42OHM

Description

• Total Power 14.4 @ 1 Ohm: 4 x 400 WRMS: to | Total Power 14.4 @ 2 Ohms: 4 x 260 WRMS: 4 x 400 WRMS | Total Power 14.4 @ 4 Ohms: to : 4 x 260 WRMS | Total Power 14.4 Bridged @ 2-4 Ohms: 2 x 800 WRMS: 2 x 800 WRMS
• Total Power 12.6 @ 1 Ohm: 4 x 300 WRMS: to | Total Power 12.6 @ 2 Ohms: 4 x 200 WRMS: 4 x 300 WRMS | Total Power 12.6 @ 4 Ohms: to : 4 x 200 WRMS | Total Power 12.6 Bridged @ 2-4 Ohms: 2 x 600 WRMS: 2 x 600 WRMS
• Efficiency @ 4 Ohms: to : 92% | Efficiency @ 2 Ohms: 85%: 80% | Efficiency @ 1 Ohm: 75%: to
• Input Voltage: 9 to 15V | Input Impedance: 100K Ohms | THD+Noise: ~20 to 20kHz (-3dBs)
• HPF (High Pass Filter): 80Hz @ 12dB/octave Linkwitz-Riley | LPF (Low Pass Filter): 80Hz @ 12dB/octave Linkwitz-Riley
• Recommended Fuse: 80 A | Current at Rest: 1.5 A | Average Current Draw (Sinusoidal): 150 A: 140 A | Average Current Draw (Music): 75 A
• Power Wire Gauge (min. Recommended): 16mm / 5 AWG | Speaker Wire Gauge (min. Recommended): 2 x 2.5mm / 2 x 14 AWG
• DIMENSIOn : Height (in): 2.2 | Width (in): 8.4 | Depth (in): 9.7 | Weight (Lb): 7.3

Banda 300 Watt 4 Channel 2 Ohm Car Amplifier 1200.42OHM @ 2 Ohm Car Audio Amplifier. Do not use an impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connection can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint free spot at the car chassis. It allows you to adjust the Crossover by selector key: LOW, FLAT e HIGH.
