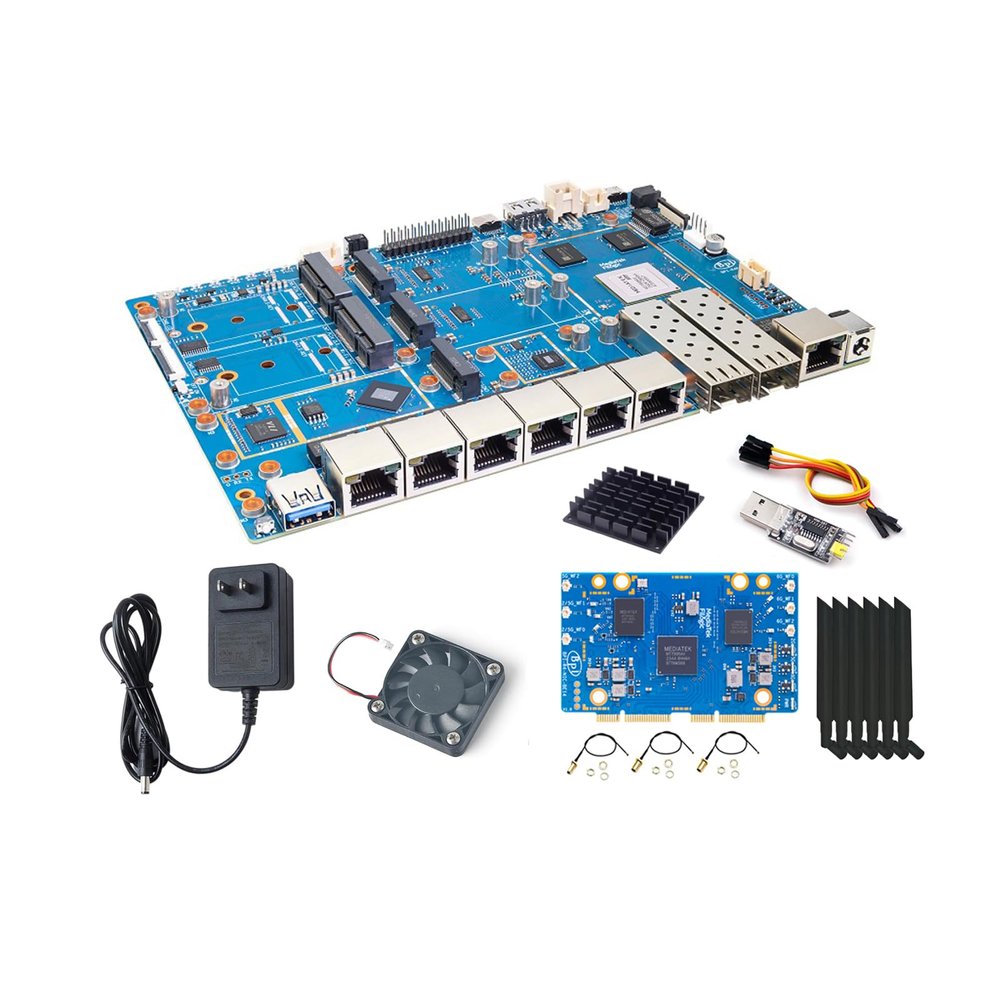

Banana Pi BPI-R4 Pro 8X/4E WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, MediaTek MT7988A30K DMIPS SoC - 2X 10GbE SFP&RJ45, 4X 2.5GbE LAN for NAS Smart Home Gateway (Bundle4, 8X)

Description

• [MediaTek MT7988A (Filogic 880) SoC] Banana Pi BPI-R4 Pro 8X/4E Wiifi 7 OpenWRT Router Board with MediaTek MT7988A (Filogic 880) SoC (Quad-core ARM Corex-A73 CPU design), onboard 4GB (4E)/8GB (8X) DDR4 RAM, 8GB eMMC and 128MB SPI-NAND flash, works as 36Gbps Wi-Fi 7 access point/router/smart gateway. It is also a very high performance open source router development boards. It is an upgraded version of the BPI-R4 router board.
• [Highly Efficient & Reliable Network] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols, delivering premium-level offloading capabilities.
• [2x 10Gbe SFP & RJ45/4x 2.5Gbe RJ45 LAN] Banana Pi BPI-R4 Pro wireless dual-band wifi router board support 1x 10G RJ45 WAN/LAN Port, 2x 10Gbe SFP and 4x 2.5Gbe ethernet with 4 Port 10/100/1000Mbps RJ45 LAN Gigabit Ethernet port, also with USB3.2 and M.2 interface, support 4G LTE/5G cellular network module and M.2 2280 NVME SSD. Providing the fastest and most reliable network connection.
• [Support WiFi 7 iPA BE14 NIC Module] Banana Pi BPI-R4 Pro 8X/4E wireless Tri-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 6E 6 NIC network card module. MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz (40MHz), 5GHz (160MHz) and 6GHz (320MHz) connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC. PHY rate: up to 13700 Mbps/9500 Mbps. QoS: WFA WMM and WMM-PS.
• [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 2x 10Gbe SFP Optical ports, 1x 10G RJ45 WAN, 1x 10G RJ45 LAN, 4x 2.5Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slots, 3x M.2 KEY-B connector for 5G/4G module, 2x M.2 KEY-M connector for M.2 2280 NVME SSD, 2x mini PCle slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO header, supports UART, I2C, SPI, PWM, I2S.
• [Widely Application Scenarios] Banana Pi BPI-R4 Pro 8X/4E Wifi Router Board can be applied to Internet Service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home Security Gateway, Home Automation, Nas device, Smart IoT Gateway, Gaming Wifi Routers, Network and Communication Applications. A wide range of application scenarios allows you to envision a fast network environment.
• [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".

-Specification-
CPU: MediaTek MT7988A (Filogic 880) Quad-Core Arm Corex-A73,1.8GHz Processor
SDRAM memory: 4E 4G/ 8X 8GB DDR4 memory
Onboard Storage: 8GB eMMC, 256MB SPI-NAND Flash, support MicroSD (TF) card holder
GPIO: 26 Pin GPIO - 2x13 PIN Header for expanding application, supports UART, I2C, SPI, PWM, I2S.
Network Interface: 4 Port 10/100/1000Mbps 2.5G RJ45 LAN Gigabit Ethernet Port 1x 10G SFP WAN 1x 10G RJ45 WAN(combo with 10G SFP WAN) 1x 10G SFP LAN 1x 10G RJ45 LAN(combo with 10G SFP LAN) 4x 2.5G RJ45 LAN 1x 1G RJ45 LAN 1x 1G LAN(FPC Connector)SFP Optical Ports: 2x10G SFP optical ports or 1x10G SFP optical port plus 1x 2.5GbE port
mini PCIE: 2x miniPCIe PCIe3.0 2lane interfaces supporting Wi-Fi 7 NIC (Network Interface Card)
M.2 interface:
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)
3x M.2 B-KEY slots with USB3.2 for 5G Module, supports 3Way 5G modules via USB 3.2 interface
BPI-R4 supports M.2 USB Interface Quectel 4G LTE EM25, RM500U-CN & RM520N-GL 5G Modules.
USB: 1x USB3.2 slot 1x USB2.0 slot
1x USB TypeC Debug Buttons: Reset button, WPS button, boot switch button
Leds: Power status Led and RJ45 Led
DC Power: 12V/5.2A or 19V 3.2A
Dimension: 100.5x148x20mm
Weight: 250g
-Package Content-
Banana Pi R4 Pro 8X/4E Router Board x1
-Technical Support- Wiki: "docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro" BPI R4 Pro Getting Start: "docs.banana-pi.org/en/BPI-R4_Pro/GettingStarted_BPI-R4_Pro" Wifi7 Module Getting Start :"docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_wi_fi7_nic". 4G/5G Module: "docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_4g_5g_module" Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)".
