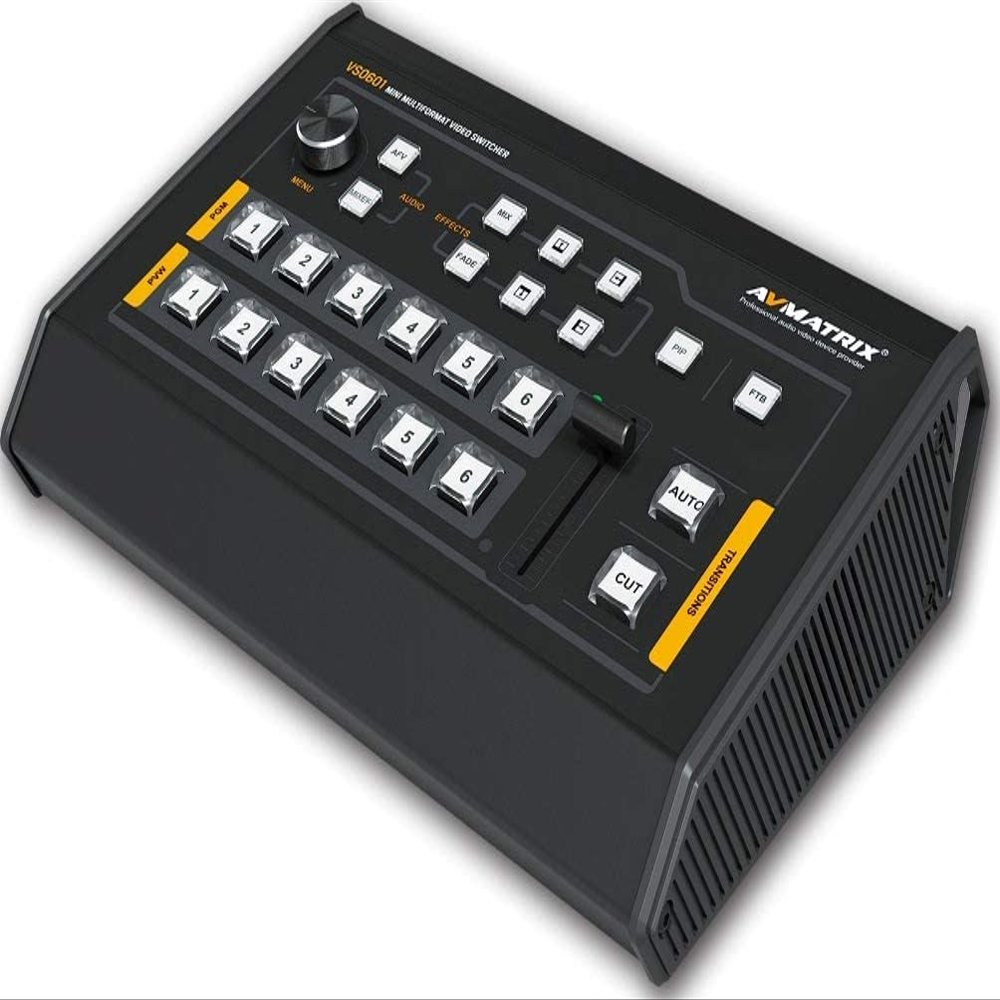

AVmatrix VS0601 Mini 6CH SDI/HDMI Multi-format Video Switcher, 6 Channel Inputs, T-Bar/AUTO/CUT Transitions and MIX/FADE/WIPE Effects

Description

• 6 channel inputs: 4xSDI and 2xHDMI inputs
• 2xSDI & 1xHDMI PGM outputs, 1xSDI AUX output, 1xSDI & 1xHDMI multiview outputs
• T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
• PiP mode, both size and position is adjustable
• Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio

AVmatrix VS0601 Mini 6CH SDI/HDMI Multi-format Video Switcher, 6 Channel Inputs, T-Bar/AUTO/CUT Transitions and MIX/FADE/WIPE Effects, GPIO Interface for Live Tally System, FTB for Emergency Situation

VS0601 is a miniature design metal housing 6-channel SDI/HDMI multi-format video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. With cost effective price, it will be your perfect choice for various events production applications etc.

Key Features
- 6 channel inputs: 4xSDI and 2xHDMI inputs
- 2xSDI & 1xHDMI PGM outputs, 1xSDI AUX output, 1xSDI & 1xHDMI multiview outputs
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- PiP mode, both size and position is adjustable
- Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
- GPIO interface for live tally system
- FTB for emergency situation

Specifications
- Video Inputs: 4x3G/HD/SD-SDI, 2xHDMI
- SDI Video Rate: Auto detection, SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
- PGM Outputs: 2x3G/HD/SD-SDI; 1xHDMI Type A
- PGM Output Format: 1080p 60/50/30/25/24; 1080i 50/60
- Multiview Output: 1x3G-SDI; 1xHDMI Type A
- Multiview Output: Format 1080p 60
- Audio Input: 1x3.5mm Stereo audio; 1xRCA(L/R)
- Audio Output: 1x3.5mm Stereo audio; 1xRCA(L/R)
- GPIO: Tally, DB-15x1
- LAN: RJ45, Synchronize local time
- Working Temp: -20 to 60C
- Storage Temp: -30 to 70C
- Operation Humidity: 20%~70%RH
- Consumption: 14.5W
- Power Supply: DC 12V, 2A
- Dimensions: 6.78" x 2.17" x 9.81"
- Weight: 2.2 lbs
