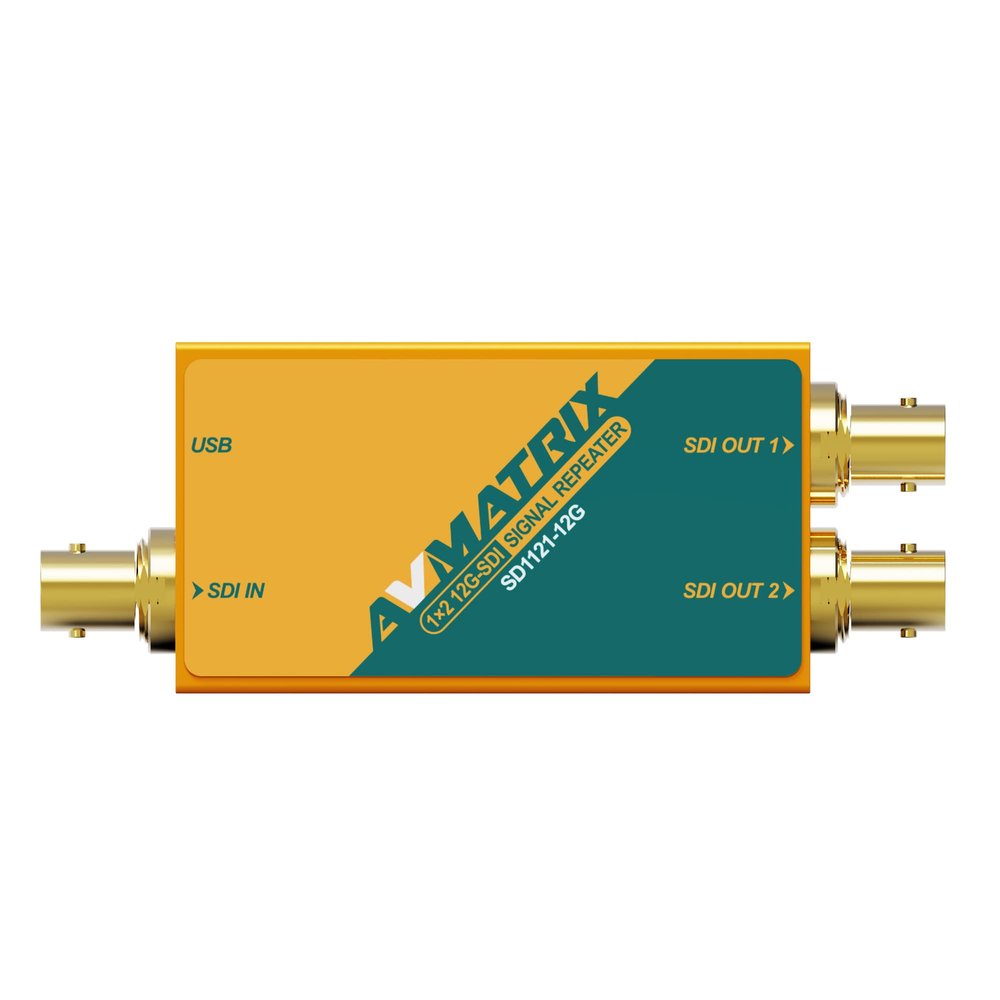

AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI

Description

• AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI
• Input: 1x12G-SDI Output: 2x12G-SDI Automatically detects SD, HD, 3G, 6G, and 12G-SDI Support DVB-ASI signal
• Automatic cable equalization and signal retiming Pass all ancillary data and embedded audio
• 5V micro USB power Detachable bracket design for wall mounting

AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI
Features:
Input: 1x12G-SDI
Output: 2x12G-SDI
Automatically detects SD, HD, 3G, 6G, and 12G-SDI
Support DVB-ASI signal
Automatic cable equalization and signal retiming
Pass all ancillary data and embedded audio
5V micro USB power
Detachable bracket design for wall mounting
Specifications:
Input: SD/HD/3G/6G/12G-SDI/DVB-ASI x1
Output: SD/HD/3G/6G/12G-SDI/DVB-ASI x2
SDI Video Rate: SD/HD/3G/6G/12G-SDI
SDI Compliance: SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M
ASI Compliance: DVB-ASISDI Color Space: YUV, RGB
SDI Equalization and Re-Clocking: Yes, SDI input and output support up to 60m/100m for 12G/3G-SDI
Power Connector: Micro USB
Voltage Range: USB 5V
Power Consumption: 1W
Operating Temperature: -20C ~ 60C
Storage Temperature: -30C ~ 70C
Relative Humidity: 0% ~ 90% non-condensing
Size: 105.5 x 41 x 23mm
Weight: 156g
Item Includes:
1x AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater
1x 5V power adapter x1
Warranty:
3 year limited
