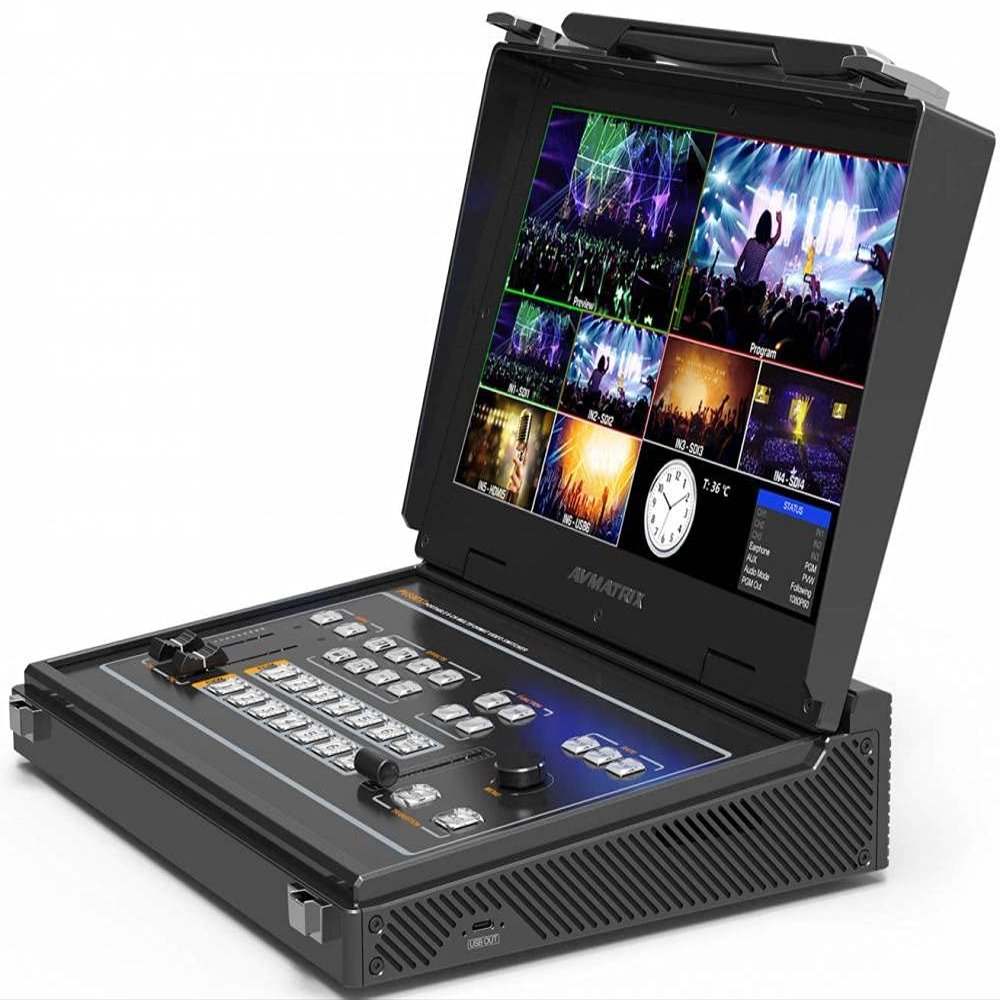

AVMATRIX PVS0613U 13.3" Portable 6-Channel SDI/HDMI Multi-format Streaming Switcher

Description

• Avmatrix PVS0613U Portable 6CH SDI/HDMI Multi-format Streaming Switcher
• Portable 6CH SDI/HDMI Multi-format Video Switcher Inputs: 4SDI and 2HDMI inputs Outputs: 2SDI &1HDMI PGM, 1SDI PVW, 1SDI & HDMI multiview 13.3 inch FHD LCD monitor
• Portable design, metal case T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects PiP mode, both size and position is adjustable
• Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio GPIO interface for live tally system FTB for emergency situation

Uncompressed capture for live streaming, comply with UVC & UAC 13.3 inch FHD IPS LCD monitor 6 channel inputs:4SDI & 2HDMI
1USB type-C out, 2SDI & 1HDMI PGM out, 1SDI & 1HDMI multiview out
1SDI AUX output, can be selected as PGM or PVW
Multi-format input auto-detected and PGM outputs format selectable T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe transition effects PIP mode size and position adjustable
Support audio MIXING and AFV mode
GPIO for Tally, FTB for emergency
AVMatrix PVS0613U Properties: Portable 6CH Streaming Switcher
13.3-inch FHD LCD monitor
Uncompressed audio / video capturing, standard UVC / UAC USB device
T-Bar / AUTO / CUT transitions and and MIX / FADE / WIPE effects PiP mode, both size and position are adjustable 3.5mm stereo / RCA audio & SDI / HDMI embedded audio
GPIO interface for live tally system
4 SDI and 2 HDMI inputs
2 SDI & 1 HDMI PGM, 1 SDI PVW, 1 SDI & HDMI multiview output
FTB for emergency situations
portable mixer in metal housing
AVMatrix PVS0613U is a 6-channel SDI / HDMI multi-format all-in-one video mixer. Inputs (4x 3G-SDI + 2x HDMI). HDMI & SDI outputs with 13.3 inch FHD LCD monitor. The PVS0613 is ideal for live sports, virtual studios, education, churches, broadcasts, concerts and more.
Functions TransitionsManual T-Bar / Cut / Auto LayoutsMultiview / PiP Audio MixerFollowing / Mixing LCD Display13.3 inch FHD LCD monitor Inputs SDI Video InputsSD / HD / 3G-SDI (75) x4 / Auto Detects SD, HD, and 3G-SDI HDMI Video InputsHDMI type-A x2 Analog Audio InputsXLR (L/R) x1 Standard SDI Input Format Support1080p - 60 /59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 --- 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 --- 1080i - 60 / 59.94 / 50 --- 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 Outputs SDI PGM OutputsSD / HD / 3G-SDI (75) x3 HDMI Multiview OutputHDMI type-A x1 Analog Audio OutputXLR (L/R) x1
