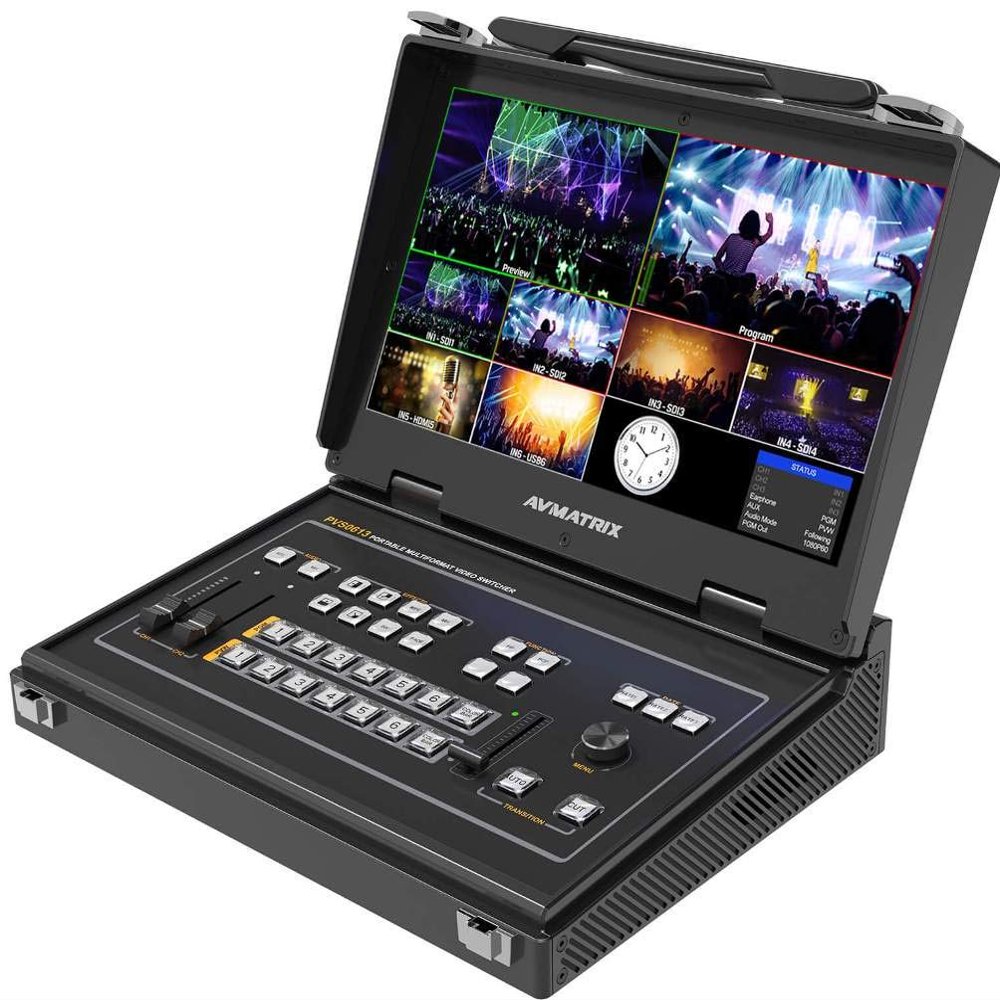

AVMATRIX PVS0613 13.3" FHD LCD Portable 6CH SDI/HDMI Multi-Format Video Switcher

Description

• PVS0613 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. The unit integrated a 13.3 inch Full HD LCD monitor which can be used in wide variety of venues for events,seminars,etc.
• 43G/HD/SD-SDI, 2HDMI SDI Input Format1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC HDMI Input Format1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video RateAuto detection, SD/HD/3G-SDI SDI ComplianceSMPTE 259M/ SMPTE 292M/ SMPTE 424M Color Space and Precision
• OutputsPGM Outputs23G/HD/SD-SDI; 1HDMI Type A PGM Output Format1080p 60/50/30/25/24; 1080i 50/60 Multiview Output13G-SDI; 1HDMI Type A Multiview Output Format1080p 60
• SDI: YUV 4:2:2, 10-bit; HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit; YUV 422 8/10/12bit
• AudioAudio Input13.5mm Stereo audio; 1RCA(L/R) Audio Output13.5mm Stereo audio; 1RCA(L/R)

PVS0613
Portable 6CH SDI/HDMI Multi-format Video Switcher
Inputs: 4SDI and 2HDMI inputs
Outputs: 2SDI &1HDMI PGM, 1SDI PVW, 1SDI & HDMI multiview 13.3 inch FHD LCD monitor
Portable design, metal case
T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
PiP mode, both size and position is adjustable
Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
GPIO interface for live tally system
FTB for emergency situation
1.2.Main Features
Portable All-In-One design with 13.3 inch FHD LCD display
6 channel inputs:4SDI & 2HDMI inputs
2SDI & 1HDMI PGM outputs, 1SDI & 1HDMI multiview output
1SDI AUX output, can be selected as PGM or PVW
Multi-format support, input format auto-detected and PGM outputs select-able
T-Bar/AUTO/CUT transitions
Mix/ Fade/ Wipe transition effects
PIP mode size and position adjustable
Audio mixing
GPIO for Tally, LAN for update
FTB for emergency situation
