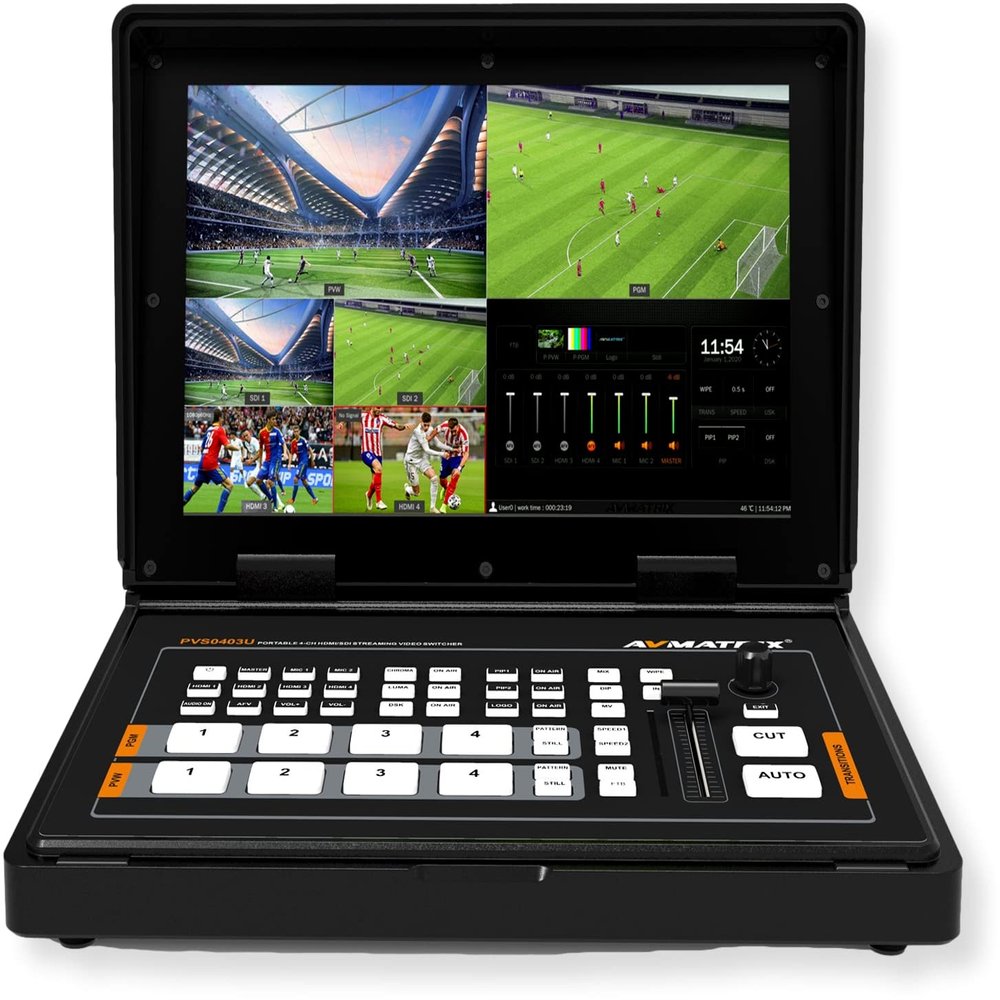

AVMatrix PVS0403U Portable SDI/HDMI Video Switcher, 10.1-incch FHD IPS LCD Monitor, USB for Capturing and Streaming, T-bar/Auto/Cut Transitions, Scaled Output and Multiview, 2PIP/POP, Logo Overlay

Description

• 10.1 inch FHD IPS LCD monitor
• 2HDMI & 23G-SDI inputs, support auto-detected
• 2HDMI PGM output,1HDMI multiview out, 1USB type-C output
• All outputs are configurable and assignable
• USB for capturing and streaming on PC

AVMatrix PVS0403U Portable SDI/HDMI Video Switcher, 10.1-incch FHD IPS LCD Monitor, USB for Capturing and Streaming, T-bar/ Auto/ Cut Transitions, Scaled Output and Multiview, 2PIP/POP, Logo Overlay

Key Features:
- 10.1 inch FHD IPS LCD monitor
- 2HDMI & 23G-SDI inputs, support auto-detected
- 2HDMI PGM output,1HDMI multiview out, 1USB type-C output
- All outputs are configurable and assignable
- USB for capturing and streaming on PC
- Upstream key: Luma key, Chroma key, PIP2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(112 patterns)/ MIX/ DIP
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally

Specifications:

Connections:
- Video In: HDMI type-A x2, SDIx2
- Video Out: HDMI type-A PGM x2; HDMI type-A Multiview x1; USB 2.0 type-C x 1(for streaming on PC); SDI1~2, HDMI3~4, PGM, Clean PGM, PVW, Color bar, multiview
- Audio In: MIC/Line x2 (3.5mm stereo)
- Power In: DC 12V x1

Functions:
- Transitions: T-bar/AUTO/CUT
- Effects: WIPE (11x2 patterns)/MIX/DIP/STILL (freeze)/MUTE/FTB
- Layouts: 2 styles of multiview layout (6 windows and stutas)
- Keys: Upstream key: LUMA key x1, Chroma key x1, PIP x2, POP
- Audio Mixer: HDMIx2, SDIx2, and mic linex2
- Audio Delay: 0-500 ms
- Generators: Pattern generator x1, Color generator x2

Standards:
- HDMI In Format Support: 1080p/60/59.94/50/30/229.97/25/24/23.98; 1080i 50/59.94/60; 720p 60/59.94/50/30/25/24;; 576i/50; 576p/50; 480p/59.94/60

Other Specifications:
- Power: Wide voltage 7~24V
- Operating Power: 12W (12V 1.8A)
- Dimensions (LxWxD): 10.29 x 7.63 x 2.3 inches
- Weight: 3.68 pounds
