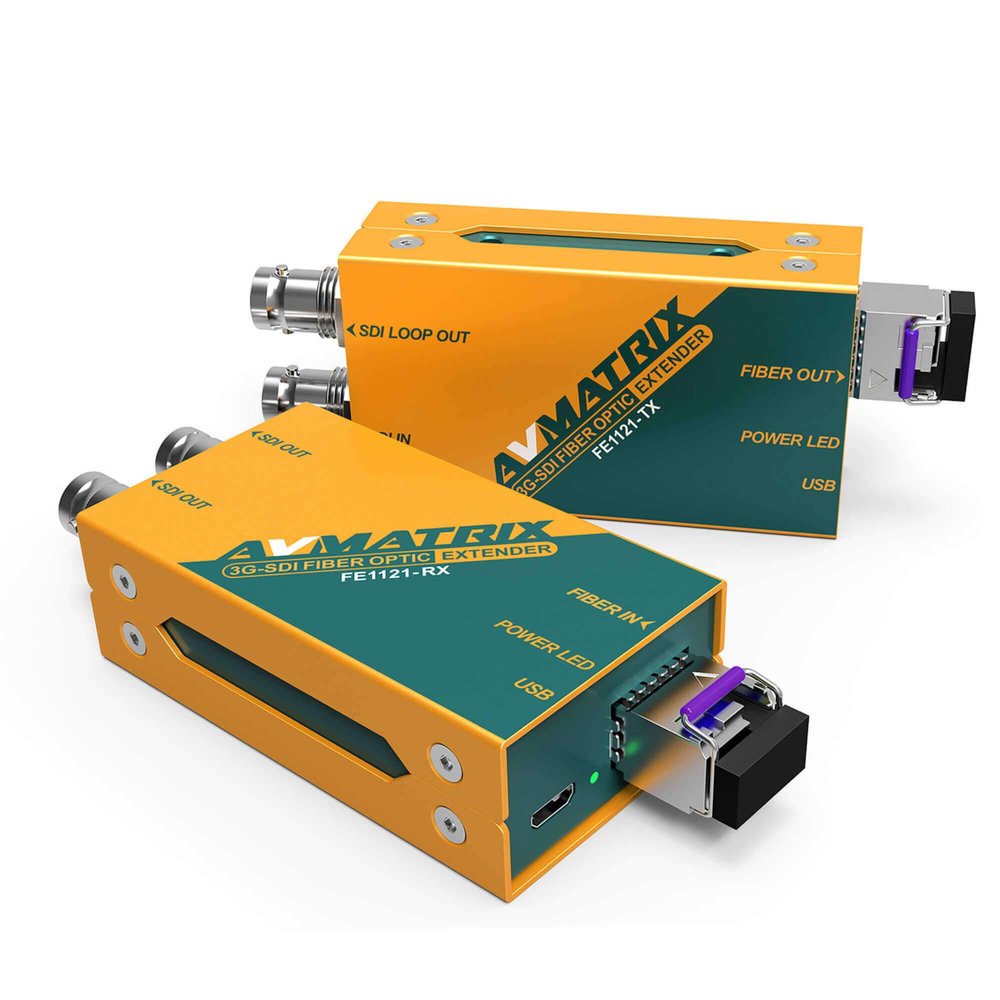

AVMATRIX FE1121 3G/HD SDI Fiber Optical Extender with SFP Module (LC Port), Supports 3Gbit Level A & Level B (All formats), Single-Mode Fiber Uncompressed No Losses No Latency 20Km

Description

• Single-mode fiber, 20km lossless and non-compression transmission This 3G-SDI Fiber Optic Extender supports single-mode fiber transmission, supporting 1310nm wavelength single-mode LC simplex fiber extensions, providing full digital Lossless and non-compression broadcast level transmission up to 20km. Providing a reliable and high-speed solution for professional video equipment, Perfect for extending signals across long distances in demanding environments.
• All 3G-SDI formats compatible, with audio and metadataThe AVMATRIX 3G-SDI fiber optic extender is multi-Format Compatibility, fully compatible with all 3G-SDI formats, including Level A and Level B, resolutions up to 1080p (Max. bandwidth:3Gbps), with audio and metadata, and it auto-switches between SD, HD, and 3G-SDI inputs. A versatile option for HD video transmission across diverse setups.
• Advanced Signal equalization and re-clocking capabilities Equipped with advanced signal equalization and re-clocking capabilities to provides excellent signal quality, supports 3G-SDI transmission up to 120 meters. It ensures high-quality, reliable signal output and seamless integration into professional video workflows.
• Hot-swappable SFP module with LC connectors This SDI fiber extender modular and expandable design featuring a hot-swappable SFP module with LC connectors, supports 1310nm wavelength and transmit data rates from 50Mbps to 3Gbps.compliant with SFF-8472 and SMPTE 297M-2006.
• Industrial Grade DesignMade of metal shell, Dustproof, With reliable and simple operation against vibration and shock, and wide operation temperature range (-20C to 60C), Relative Humidity 0%~90% non-condensing for harsh environments.
• 3 Year GuaranteeBacked by a three-year warranty, its a dependable addition to any professional video equipment setup.

AVMATRIX FE1121 is a professional 3GSDI fiber optic extender kit designed for longdistance broadcast transmission, live event production, surveillance, and professional AV systems. This compact transmitter and receiver set supports singlemode LC simplex fiber connection and extends 3G/HD/SDSDI signals up to 20km with zero loss and stable transmission. It automatically detects SD, HD, and 3GSDI formats, supports up to 1080p resolution, and is fully compatible with both Level A and Level B standards, ensuring wide adaptability for professional SDI equipment. The transmitter features an SDI input and local loop output for realtime monitoring, while the receiver provides dual SDI outputs for flexible signal distribution. Builtin SDI equalization and reclocking functions maintain optimal signal integrity over long distances. Supporting 16channel embedded audio and complete metadata transmission, it delivers synchronized highquality audio and video for professional applications. Powered via micro USB with low power consumption, the extender is easy to deploy indoors and outdoors. Its miniaturized, rugged design, included mounting brackets, and wide operating temperature range ensure reliable longterm use. Fully compliant with SMPTE professional standards, the AVMATRIX FE1121 offers a highperformance, plugandplay, longdistance SDI transmission solution for broadcasters, production crews, system integrators, and field engineers.
