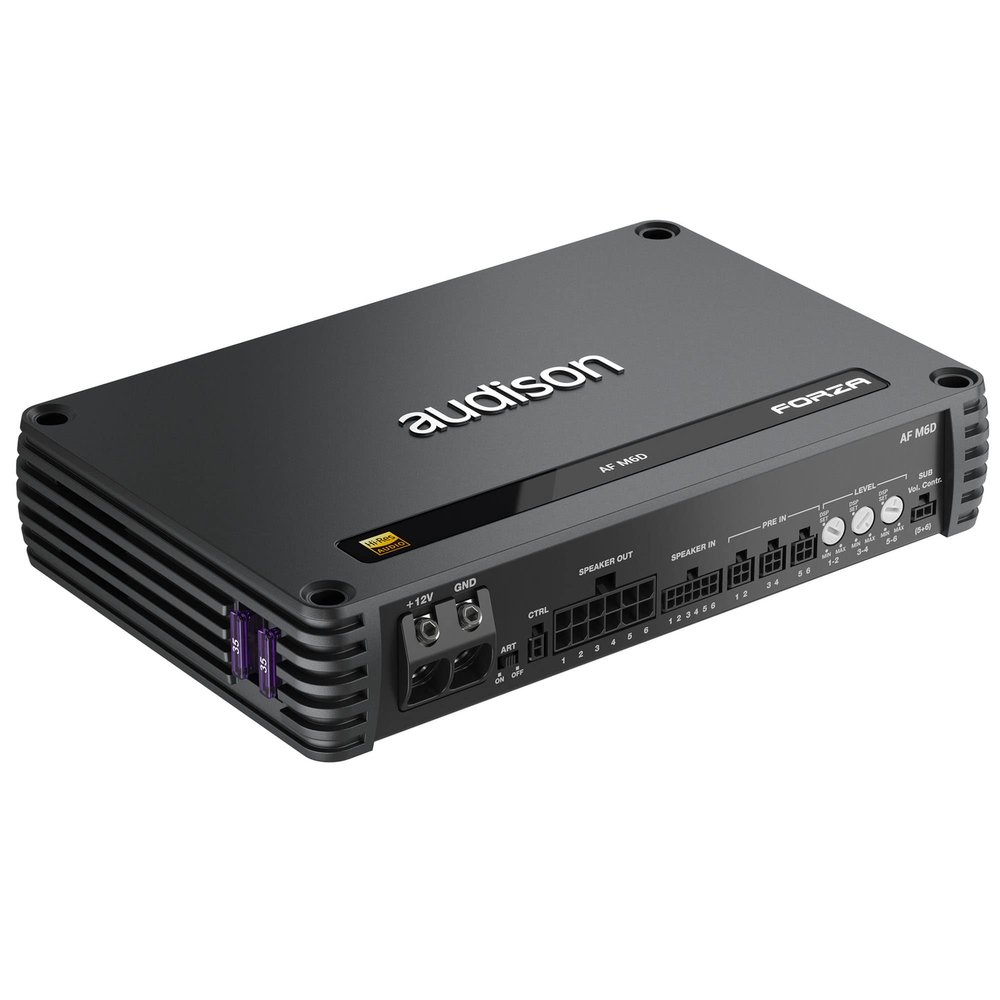

Audison Forza AF M6D AUDISON D Class 6 CH Amplifier - 6 x 130W at 4

Description

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm reaching 81% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a straight wire architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors.AF M6D boasts six high-fidelity amplified channels 135W x 6 @4*, 220W x 6 @2*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven. Amplifier Tech Data - Channels: 6 Class: D Efficiency: 81 % Hi Level Input: Yes Low Level Input: Yes Digital Input: No Power supply voltage / fuse: 11 15 VDC Operating power supply voltage: 6.5 17.5 VDC Idling current: 1 A Idling current when off: 0.009 mA Consumption @ 14.4 VDC, 2, Max Musical Power: 60 A Remote OUT: 6.5 15 VDC (150 mA) Remote IN: 4 15 VDC (1 mA) ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC Amplifier Stage - Distortion: THD @ 100 Hz, 4, 70% Rated Power 0.04% Bandwidth A: 10 Hz 42 kHz S/N ratio A: 103 dBA Damping factor A: 160 Input sensitivity Pre-In: 0.6 6 VRMS Input sensitivity Speaker-In: 2.2 22 VRMS
