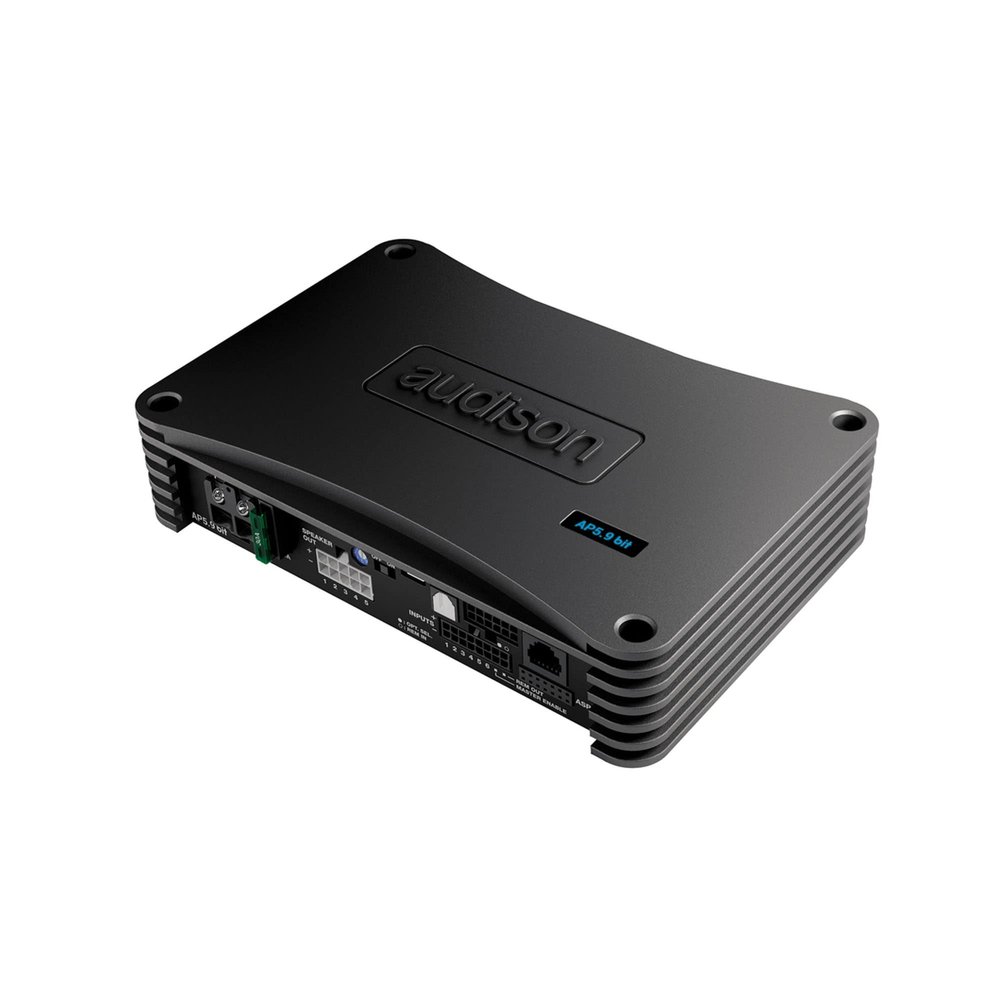

Audison Ap5.9 bit 5 channel amplifier with built in sound processor

Description

• Channels: 5
• PC connections Micro USB (1.1 / 2.0 / 3.0)
• Software/PC requirements: Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
• Graphic card min. resolution: 800 x 600
• Ambient operating temperature range: 0 C to 55 C (32F to 131F)

AP5.9 bit -5CH AMP WITH 9CH DSP 2x40W+2x90W+1x270W AP5.9 bit amplifier is ideal to realize a two way front full active plus subwoofer system using the fifth mono channel with 270 W @ 2 . The built-in processor, that this amplifier shares with the AP8.9 bit, provides the ability to assign the pre-outs to the AP4 D amplifier, creating a very powerful system in a small space thanks to the rack mounting system. Amplifier Stage - Distortion - THD @ 1 kHz, 4 , 90% Output Power (Ch 1-2-3-4): 0.08 % Distortion - THD @ 1 kHz, 4 , 90% Output Power (Ch 5): 0.1 % Bandwidth (-3 dB, 2 V RMS, 4): 10 20k Hz / 10 500Hz SUB S/N ratio @ A weighted, 1V, Max Power: 95 dBA Damping factor @ 1 kHz, 2 V RMS, 4: >70 Input sensitivity: 2 15 V RMS Input impedance: 15k Power Supply - Voltage: 7.5 15 VDC Idling current: 1.5 A Switched off: <1.4 mA Consumption @ 14.4 VDC 2 Max Musical Power (without CPL): 30 A Remote IN 7 15 VDC (1 mA) Remote OUT 11 15 VDC (200 mA) Fuse 30 A ART (Automatic Remote Turn on/off) Speakers to input - selectable AST (Automatic Signal Turn on/off) Pre-In to input - selectable CPL (Continuous Power Limiting) Max continuous power - selectable
