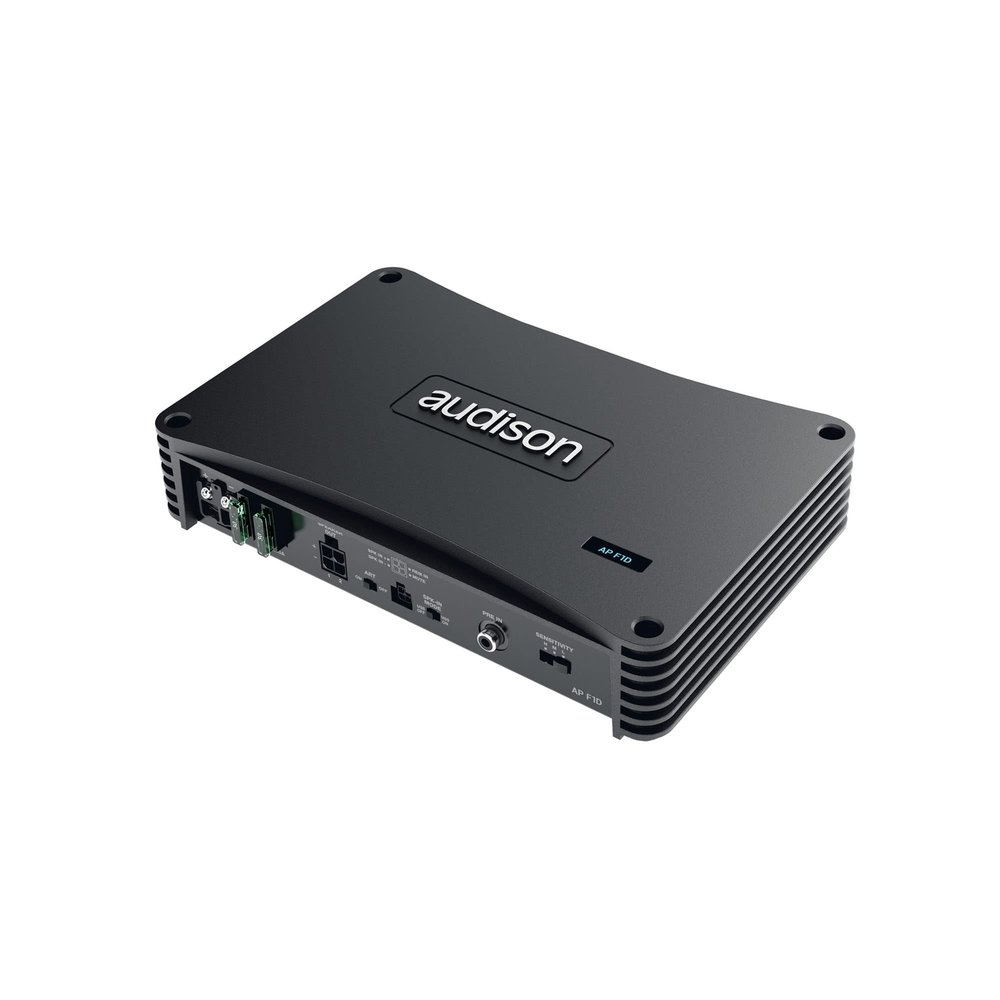

Audison AP F1D Mono Power Amplifier

Description

• USS technology - USS technology allows Prima amplifiers to work with head-units featuring the speaker load detection circuit
• Power supply voltage/fuse: 11 15 VDC / 2 x 30A
• Operating power supply voltage: 6.5 17 VDC
• Ambient operating temperature range: 0 C to 55 C (32 F to 131 F)
• Output power @ 4, 1% THD+N, 14.4 V: 500 W

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension. POWER SUPPLY Power supply voltage / fuse 11 15 VDC / 2 x 30A Operating power supply voltage 6.5 17 VDC Idling current 1.3 A Idling current when off 0.05 mA Consumption @ 14.4 VDC, 2, Max Musical Power 50 A Remote IN 6.5 15 VDC (1 mA) ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 2 7 VDC AMPLIFIER STAGE Distortion - THD @ 100 Hz, 4, 70% Rated Power 0.1% Damping factor @ 100 Hz, 4, 2 VRMS 140 Bandwidth @ -3 dB 10 Hz 500 Hz S/N ratio (A weighted @ 1 V Input) 110 dBA Input sensitivity Pre-In Selectable: 0.6 - 2.0 - 6.0 VRMS Input sensitivity Speaker-In Selectable: 2.0 - 6.5 - 20 VRMS Minimum load impedance 1 OUTPUT POWER (RMS) @14.4 VDC, 1% THD: 1Ch @ 4 500 W x 1 1Ch @ 2 800 W x 1 1Ch @ 1 1000 W x 1 INPUTS Pre-In Inputs RCA Speaker-In Inputs wired Mute (Energy Saving control) wired (active to ground) OTHER Ambient operating temperature range 0 C to 55 C (32 F to 131 F) SIZE Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1 Weight (kg/lbs) 1,92 / 4.23 LOW IMPEDANCE DRIVE CAPABILITY C CEA SPECIFICATIONS Output power @ 4, 1% THD+N, 14.4 V: 500 W SN ratio (ref. 1W output): 81,5 dB
