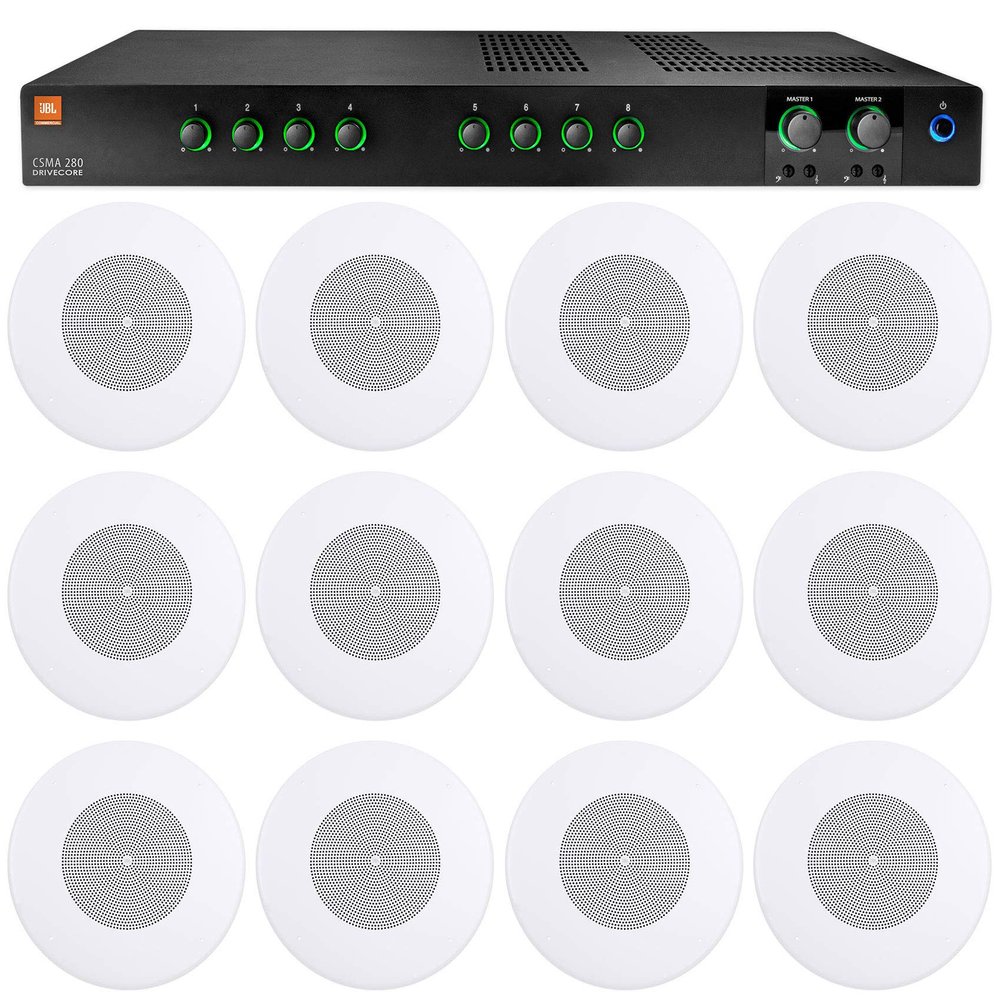

Audiosavings Bundle: JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs Bundle with (12) JBL CSS8018 8" Commercial 70V/100V 10 Watt Ceiling Speaker (13 Items)

Description

• Package Includes: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. (12) JBL CSS8018 8" Commercial 70V/100V 10 Watt Ceiling Speakers 4 Restaurant, Etc. JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V and 8 inputs. For Commercial and Industrial Use. 80W into 8 or 4 Ohm Loads. 10W Per Channel. 8 Input Channels, 2 Output Channel. Usable with 70 & 100V Systems. Euroblock Mic/Line & RCA Inputs. Hi-Z & 27V Phantom Power Switches
• Sleep Mode & 2 Auxiliary Outputs. Voice Activated Ducking & Priority Mute. Specifications: Maximum Output Power: 800 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD. Insertion Loss: 1 dB maximum for 70 and 100 V outputs. Continuous Power: 10 W per channel. Line Output Level: 5.0 V RMS into 10 kOhms. Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS
• Number of Channels: Input: 8, Output: 2. Frequency Response: Measured at 2.83 V RMS into rated load impedance at any output. 4/8 Ohms Output: 20 Hz - 20 kHz, +/-2 dB. 70 V/100 V Outputs: 80 Hz - 15 kHz +/-2 dB. Line Out: 20 Hz - 20 kHz, +/-1 dB. Total Harmonic Distortion (THD): Measured at 2.83 V RMS into rated load impedance at any output. Power Amplifier Output: 90 dB
• Nominal Input Impedance: Mic: 400 Ohms. Line: 20 kOhms (balanced). RCA: 50 kOhms. Minimum Load Impedance: Low Impedance Output: 4 Ohms. 70 V Output: 120 Ohms. 100 V Output: 240 Ohms. Crosstalk: -70 dB @ 1 kHz. Controls: Front Panel: 8 x Input level rotary knobs. 2 x Output volume-attenuating knobs. 1 x Power switch. 2 x Bass potentiometers. 2 x Treble potentiometers. Rear Panel: 2 x Input-routing dip switches (including phantom and Hi-Z switches). 8 x Mic/Line selector switch
• 2 x Vox adjustment switches. Indicators: Front Panel: 8 x Input signal presence ring, green. 2 x Output volume ring, green. 1 x Power switch ring, green/blue. Connectors: Rear Panel: 1 x IEC power input. 2 x Aux out connection points. 6 x 3-pin euroblock connectors. 6 x 3-pin euroblock connectors. 2 x 5-pin euroblock connectors. 6 x Dual RCA input connectors. 2 x RJ45, remote volume. Operating Temperature / Humidity: 32 to 95 degreeF / 0 to 35 degreeC, 95% RH (non-condensing)

Storage Temperature: -4 to 185 degreeF / -20 to 85 degreeC. Phantom Power: 27 VDC. AC Input: 100-240 VAC, 50/60 Hz. Dimensions (W x D x H): 17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm. Weight: Approximately 11.9 lb / 5.4 kg. Features: JBL CSS8018 8" Commercial 70V/100V 10 Watt Ceiling Speaker for Restaurant, Stores, etc. Driver Size: 200mm (8") Dual Cone. Driver Sensitivity: 97 dB. Frequency Range: 50 Hz - 17 kHz. Coverage: 110 degree. Driver Continuous Power Handling: 20 Watts. 100V Taps: 10W, 5W, 2.5W. 70V Taps: 10W, 5W, 2.5W, 1.3W. 25V Taps: 10W, 5W, 2.5W, 1.3W. Transformer Insertion Loss: 1.5 dB Maximum. Transformer Connection: Bare Wire. Motor Mass: 283 g (10 oz.). Matching CSS Backcan: CSS-BB8. Bolt Mounting Circle to Backcan: 4 points on 11.25" diameter. Cutout Diameter (Open-Back): 216 mm (8.5"). Cutout Diameter (In CSS-BB Backcan): 295 mm (11.7"). Depth (Behind Grille): 73 mm (2.9"). Grille Diameter: 327 mm (12.9"). Product Weight: 3.5 Lbs. Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).
