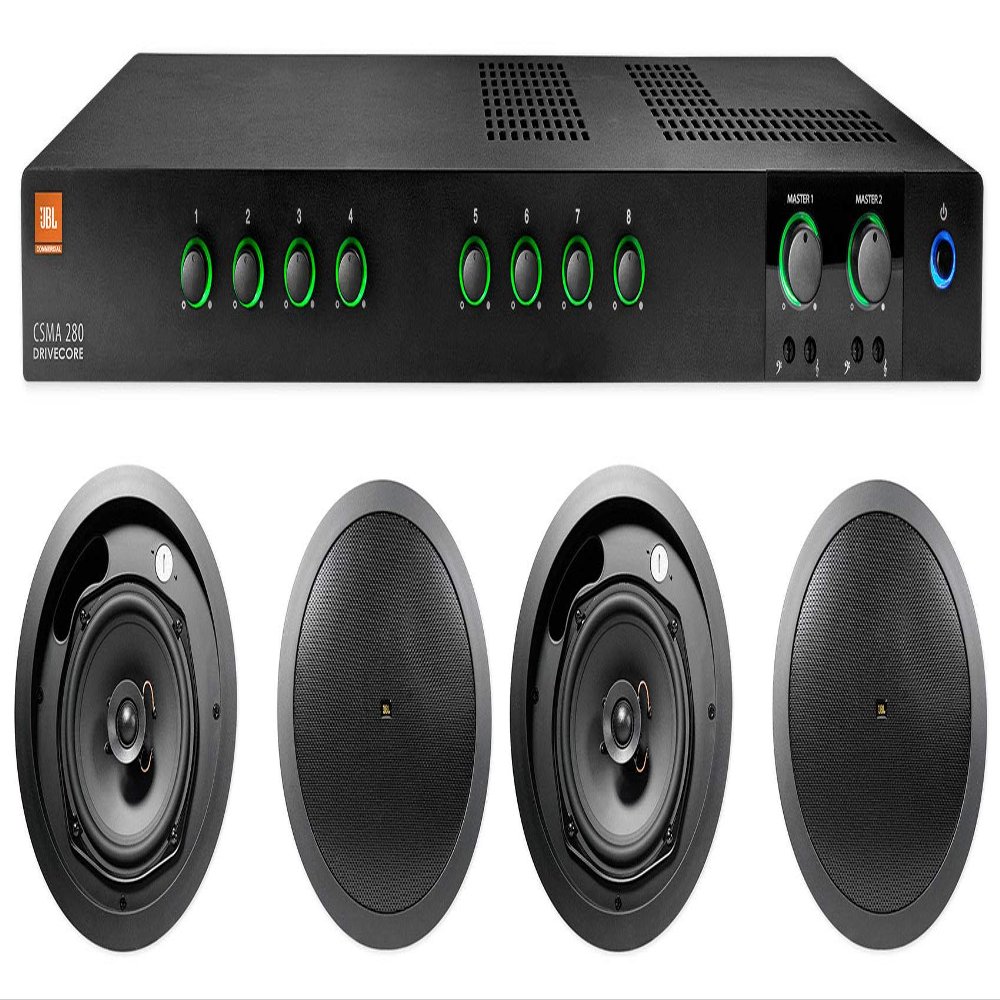

Audiosavings Bundle: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier Bundle with (4) JBL (2) Control 16C/T-BK 6.5" 30w 70v Commercial Ceiling Speakers for Restaurant/Bar (5 Items)

Description

• Package Includes: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs, (2) Pair of JBL (2) CONTROL 16C/T-BK 6.5" 30w 70v Commercial Ceiling Speakers For Restaurant/Bar
• Features of CSMA280: JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V and 8 inputs, For Commercial and Industrial Use, 80W into 8 or 4 Ohm Loads, 10W Per Channel, 8 Input Channels, 2 Output Channel, Usable with 70 & 100V Systems, Euroblock Mic/Line & RCA Inputs, Hi-Z & 27V Phantom Power Switches, Sleep Mode & 2 Auxiliary Outputs, Voice Activated Ducking & Priority Mute
• Specifications: Maximum Output Power: 800 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD, Insertion Loss: 1 dB maximum for 70 and 100 V outputs, Continuous Power: 10 W per channel, Line Output Level: 5.0 V RMS into 10 kOhms, Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS, Number of Channels: Input: 8, Output: 2.
• Features of CONTROL 16C/T: (2) JBL (2) CONTROL 16C/T-BK" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar, Components:, 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround, 19 mm (0.75 in) soft-dome liquid-cooled tweeter, Blind-mount backcan for quick and easy install, Dual conduit/cable clamps, Combined 70V/100V and low impedance direct operation, 50 Watts at 8O nominal setting, 30W multi-tap at 70V/100V
• Specifications: Frequency Range (-10 dB): 62 Hz 20 kHz, Power Capacity (at low-Z), 100 Watts Continuous Program Power, 50 Watts Continuous Pink Noise, Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only), Frequency Response (3 dB): 96 Hz 15 kHz, Nominal Sensitivity: 91 dB, Nominal Coverage Angle: 110 conical coverage, Directivity Factor (Q): 7.8, Directivity Index (DI): 8.2 dB, Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak

Description of CSMA280: Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).
Description of (2) CONTROL 16C/T-BK: Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
